Dali 40/70 4 Axis

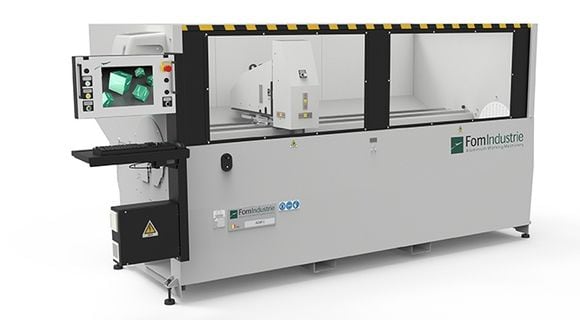

CNC Machining centre with 4 controlled axes

The DALI machining centre has been designed to perform boring and milling work on aluminium and steel profiles. The mechanical specifications of this modern machining centre and of its control system provide economical use in the production of single pieces.

Available in 4 and 7 meters versions

Standard configuration

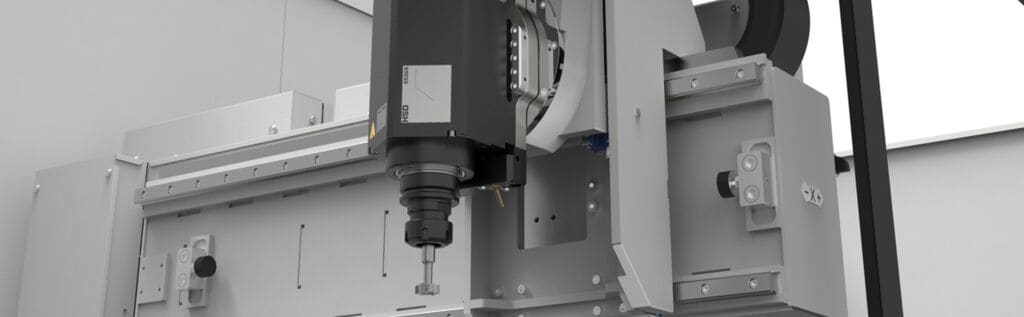

  • Electrospindle FOM 6,5 kW (S1) 19.000 rpm (ISO 30)

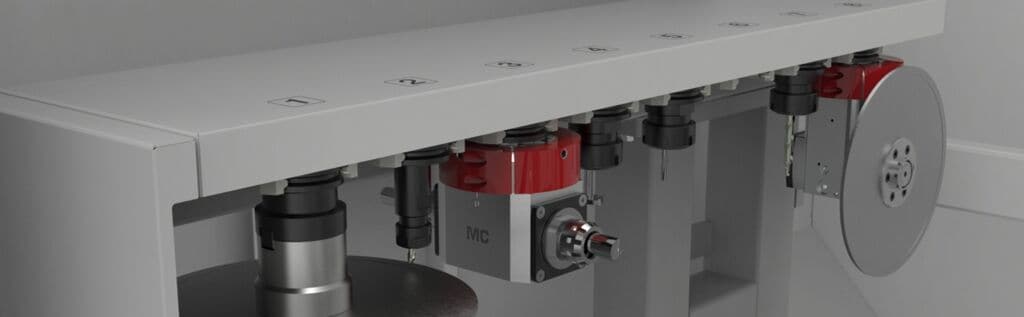

  • 7 position tool magazine. (ISO 30)

Note: No housing of single/double tool angular unit and blade-holder cone

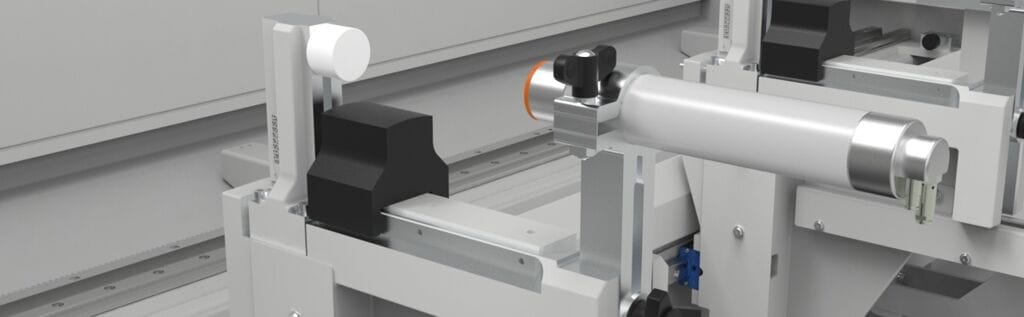

  • No. 4 pneumatic vices with positioning through carriage
  • Left sliding pneumatic stop
  • Microdrop lubrication with pure oil
  • Chip bin Guard with receding frontal doors with automatic opening
  • Set up for fumes extraction
  • Electronic device: POWER-M Mobile control console with PC, 17'' touch screen monitor, mouse and keyboard
  • Software licence for FOMCAM program
  • FOMCAM training course (FOM premises)
Advantages
  • 6.5Kw high torque 4 axis electrospindle
  • Full 3D graphic simulation
  • 10 position automatic tool changer
  • 4 profile clamps with automatic positioning
  • Full safety enclose with automatic door opening
  • Air conditioner for electrical cabinet
