sw 553 reverse garda 3

(512) 931-1962

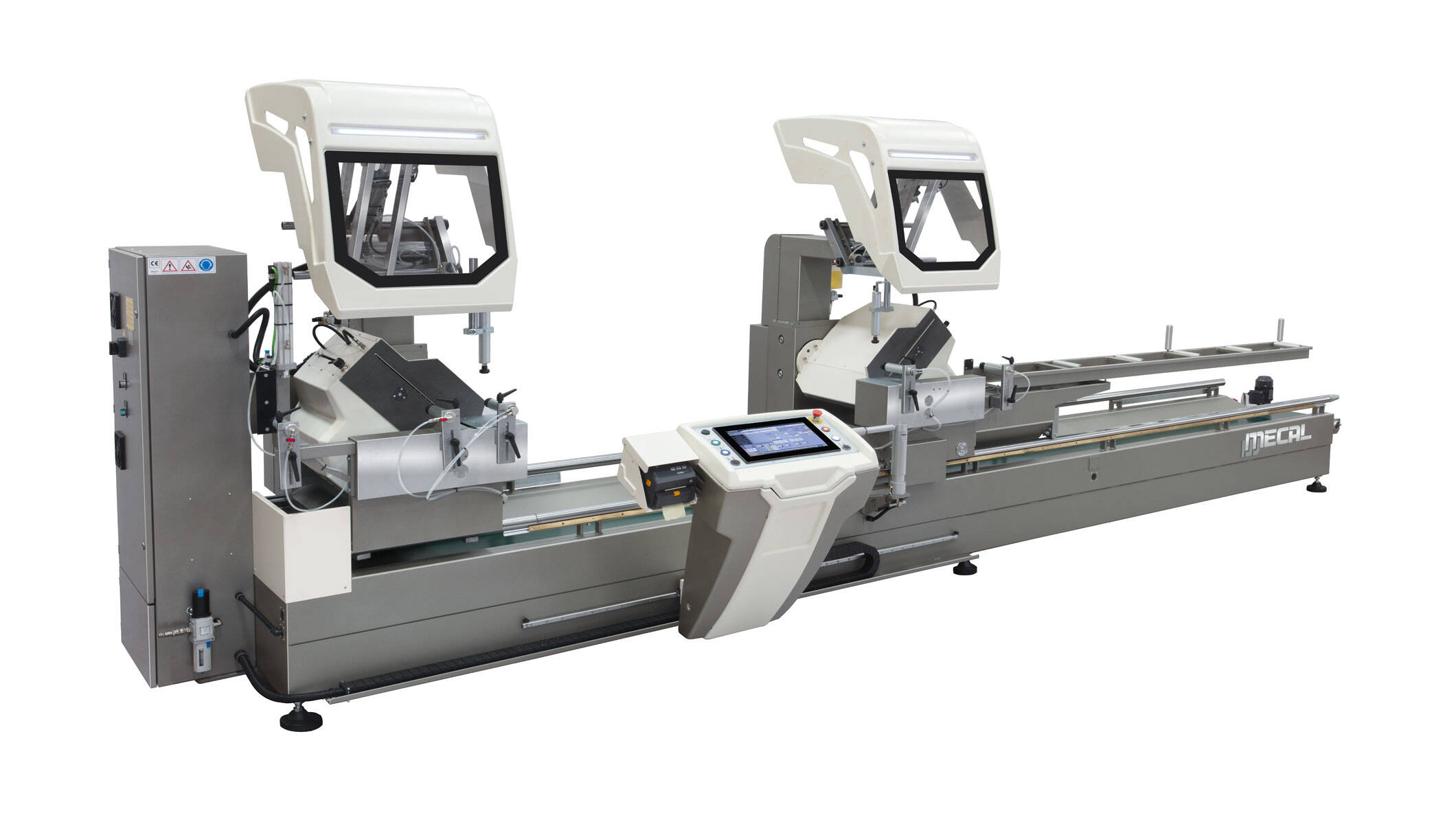

Aluminium Processing - Double Head Saw - sw 553 reverse garda 3

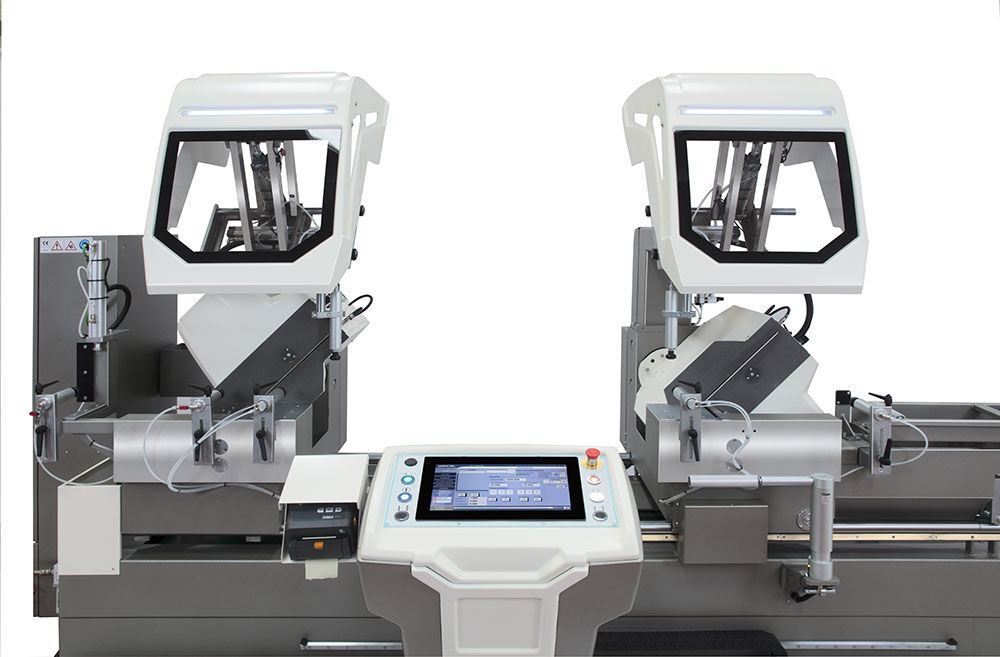

Double mitre saw with a fixed unit on the left and the other one movable, with blade diameter 550 mm.

  • Automatic positioning of the movable unit.
  • Electronic positioning of the cutting units on any angle within 22,5° and 135°.
  • Realized with cutting lenght of 5000 mm or 6000 mm.
Advantages
  • Wide cutting capacity by means of sawblades dia. 550 mm.
  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
  • Frontal and straight blade feed with speed adjustments.
  • Hydro-pneumatic blade feed.
  • Dynamic protection guards for a total covering of the cutting area.

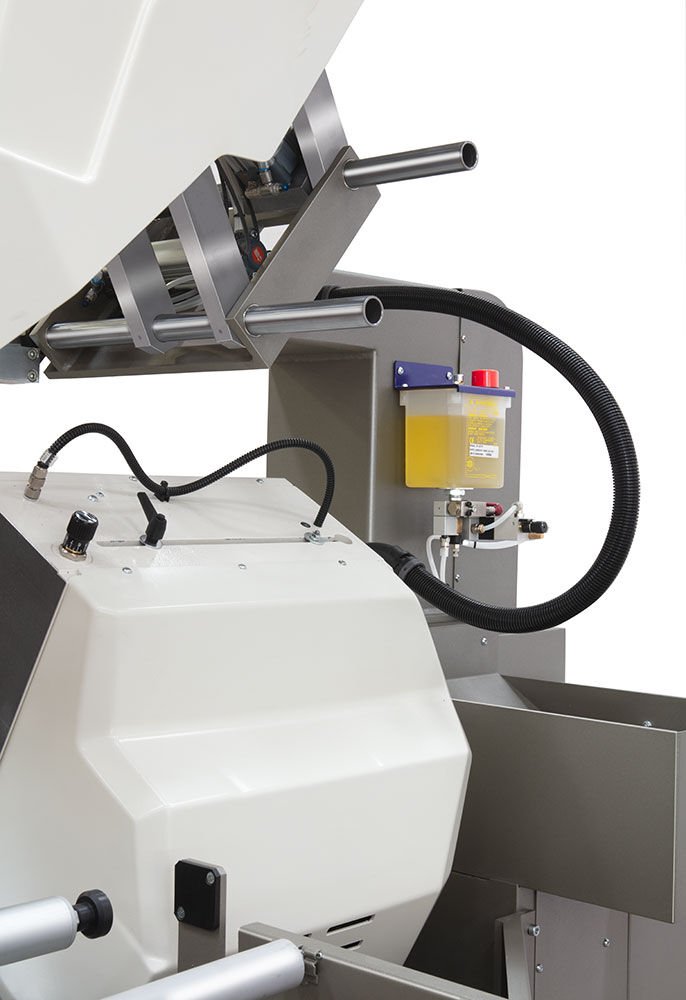

  • Mist spray lubrication tools (Venturi system).
  • Pre-arranged to connect an exhaust extractor for swarfs.

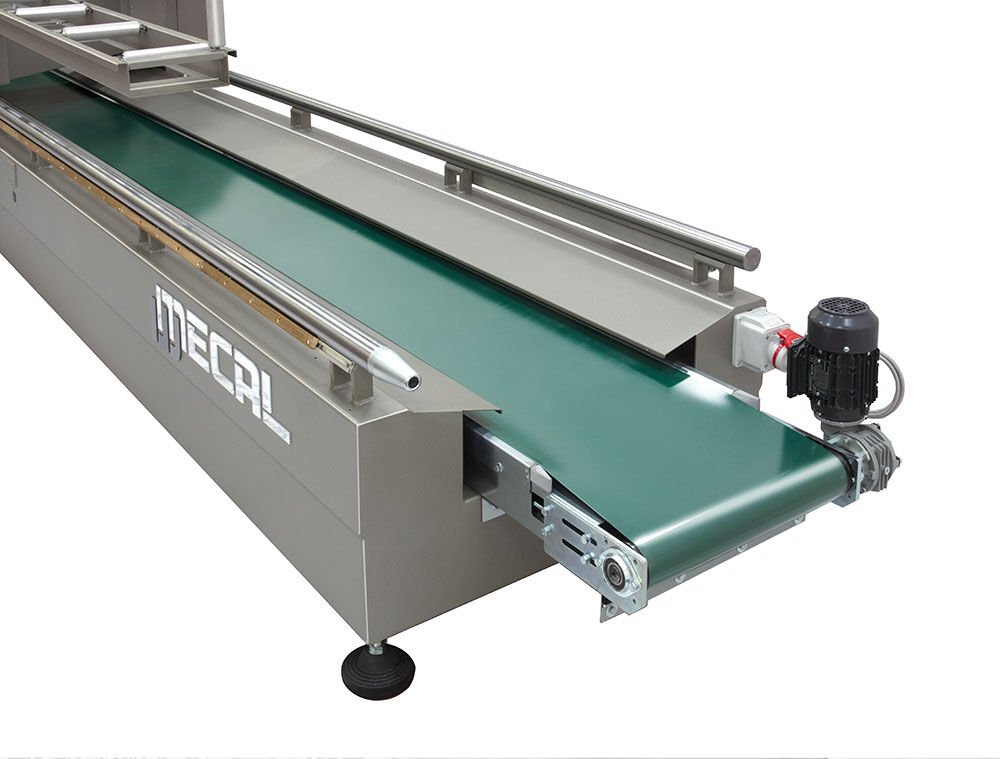

  • Pre-arranged to connect a motorised belt conveyor.
Technical data
Contemporary useful cutting (90°) mm 5000/6000
Cutting length (min. 90°) mm 350
Tilting range deg 135<>22,5
Sawblade diameter mm 550
Diameter bore mm 30
Power kW 3,0 (x 2)



Media
Documentation
sw_553_series_EN Download
