mc 307 falcon tm mmi

(512) 931-1962
Aluminium Processing - CNC machining centres - mc 307 falcon tm mmi

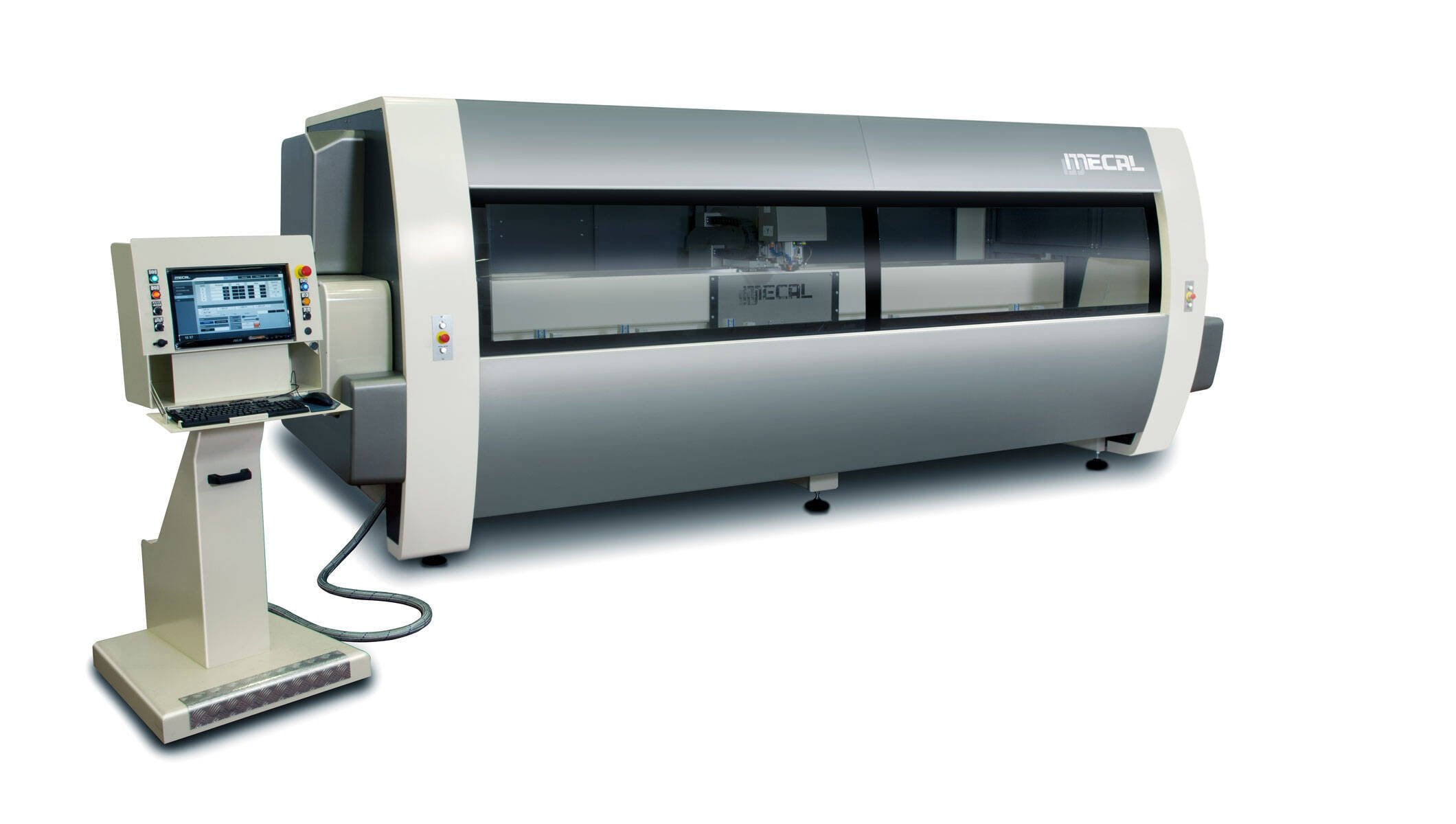

4 axis CNC floor-type vertical spindle machining center.

  • MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
  • 4 axis (X, Y, Z, A) managed by CNC.
  • Fully equipped with digital technology.
  • Compact, fast and flexible, adapted to suit any requirement.
  • Able to work on aluminium, light alloys, PVC and steel profiles.

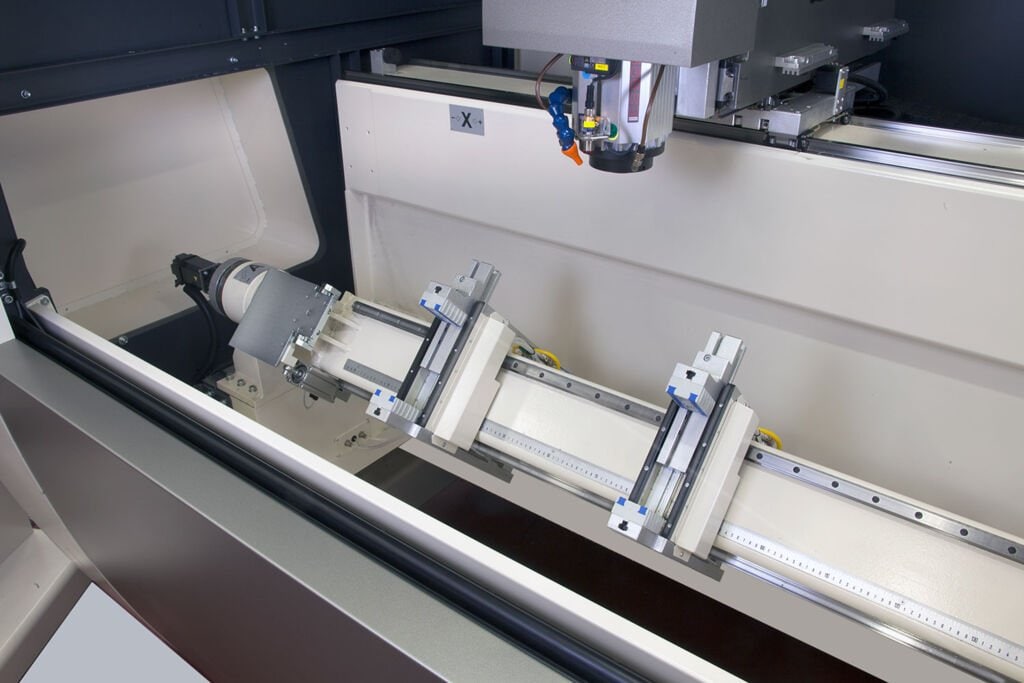

  • The workpieces are fixed with 5 pneumatic clamps, sliding on the tilting beam. The beam can be positioned at any angle within ± 125°.
  • Workable section: 300 x 150 mm (YxZ).
Advantages
  • Axis speeds up to 150 m/min.
  • Compact and innovative design.
  • Simultaneous positioning of the clamps. The independent motorization allows the autonomous positioning of each clamp in an extremely short time.
  • The clamps beam can be positioned side by side to the longitudinal axis at any angle within ± 125°.
  • Clamps capacity up to 300 mm.
  • 2 retractable reference stops (right and left) allow you to load profiles with complementary lengths, even with sections and different machinings.
  • The useful stroke for working bars is 4000 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (8000 mm).
  • The electric spindle is suitable for quick tool holder change.
  • The change of the tool holder is AUTOMATICALLY managed.

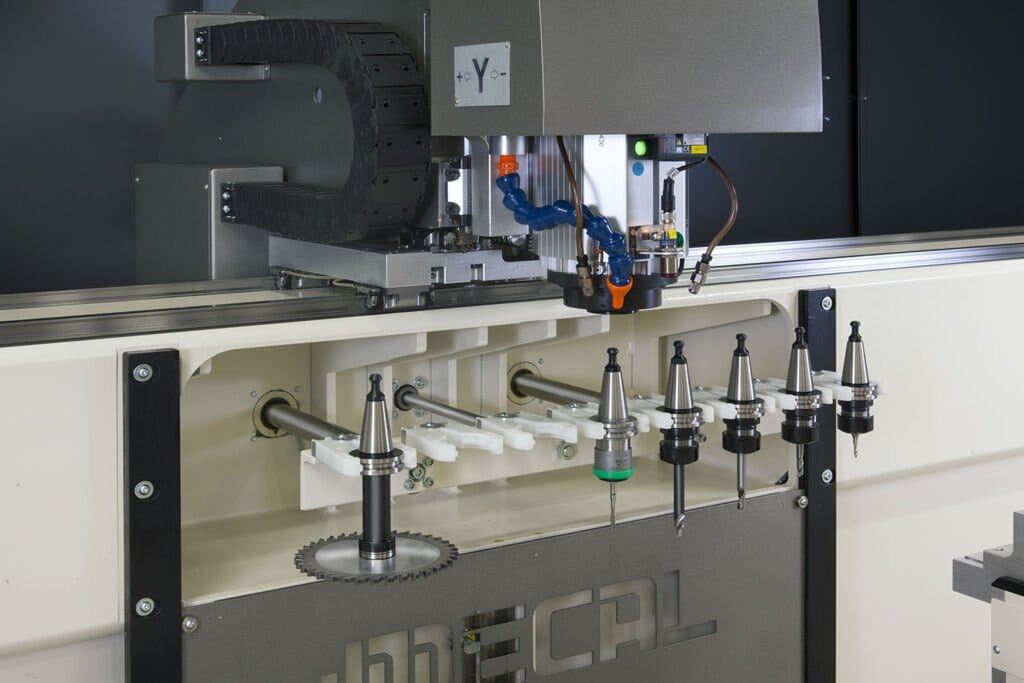

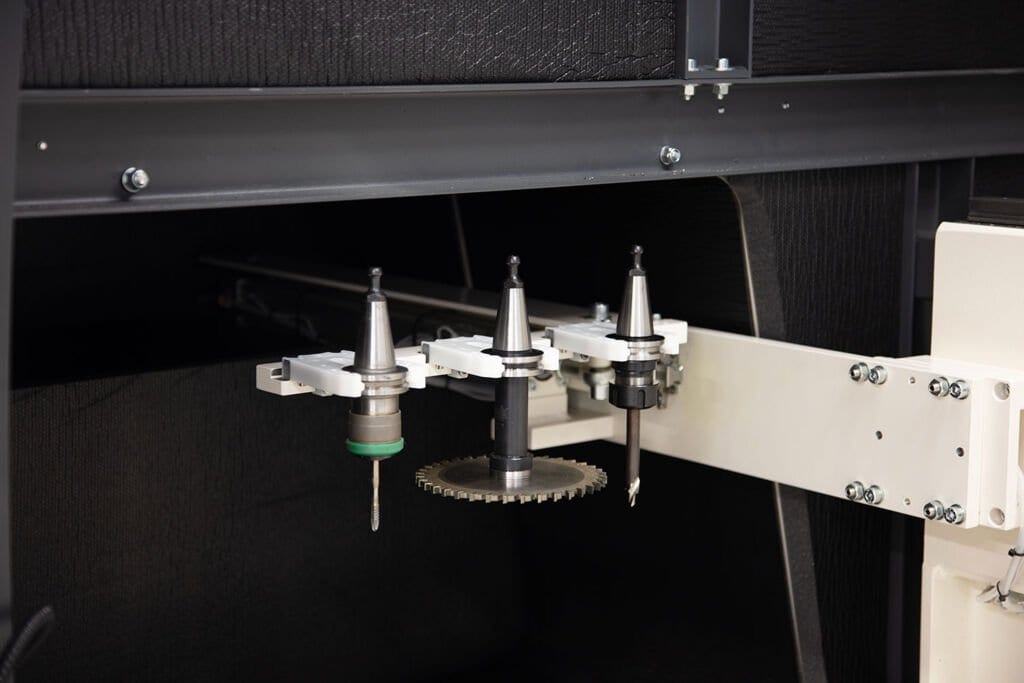

  • The 10-position tool magazine is placed in the center of the base, thus reducing the time required for tool change. Additional 3-positions storages on the right and on the left, for a total of 16 tools available.
  • The tools cooling is done through a centralized system that optimizes the required minimal lubrication.
  • Using a disk cutter, it is possible to work on both sides at the end of the profile (end milling cycle).
  • Milling operations can be performed with linear and circular interpolation of the axes X,Y,Z.
  • All systems handling axes are lubricated through an automatic centralized system.
  • Pre arranged to use a set of chips collector bins.
  • Pre arranged for the inclusion of a motorized belt conveyor with PVC belt for evacuation of chips.
Technical data
X- axis stroke mm 4275
Positioning speed X-axis m/1’ 150
Y-axis stroke mm 530
Positioning speed Y-axis m/1’ 40
Z-axis stroke mm 410
Positioning speed Z-axis m/1’ 40
A axis stroke deg ± 125°
Electrospindle rated power kW 8,5
Max rotation speed rpm 24000
Tool holder cone   HSK F63
Diameter of disc cutter (max.) mm 200
Weight kg ~ 3500



Media
Documentation
mc_307_falcon_tm_mmi_EN Download
