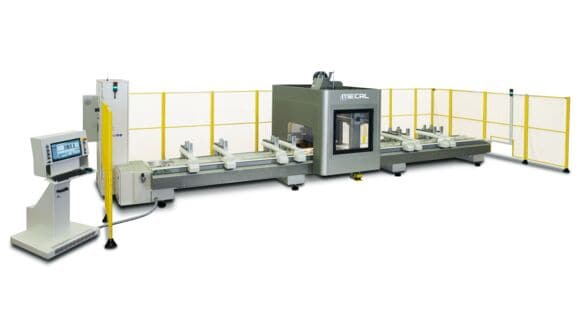

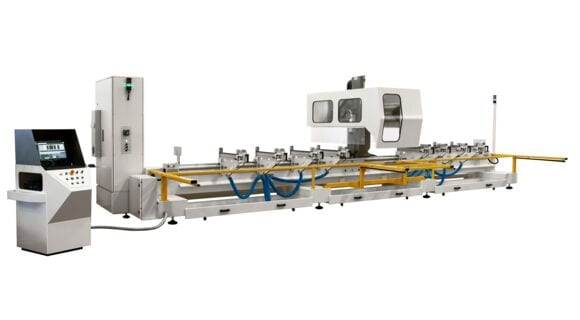

4 axis CNC floor type vertical spindle machining centre.

• MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
• Especially suitable for the machining of aluminium, PVC, steel and light alloys profiles of considerable size and weight, also for industrial applications.
• 4 axis (X, Y, Z, A) managed by CNC.
• By means of dedicated tools it’s suitable for working on 5 sides of profiles.
• Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis (side by side at Y axes) on the positions within 180° (± 90°).
• The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.

Advantages

• The high performance provided from the electric spindle and from the 12-positions tools magazine make possible to diversify the working with great flexibility.
• The axis slide on precision guides and are driven by motors operated with digital systems.

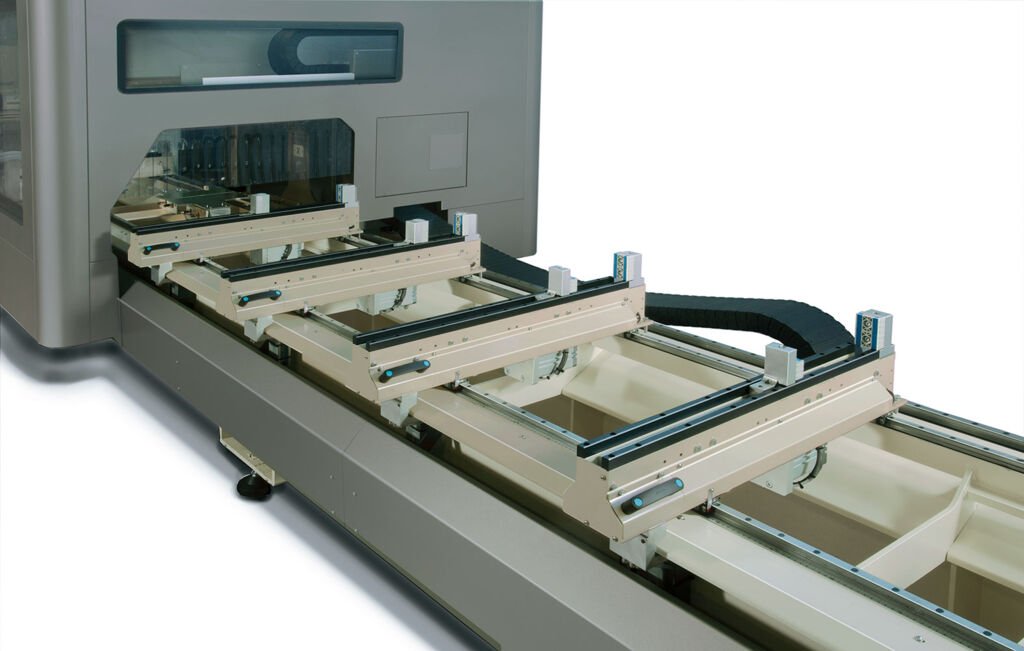

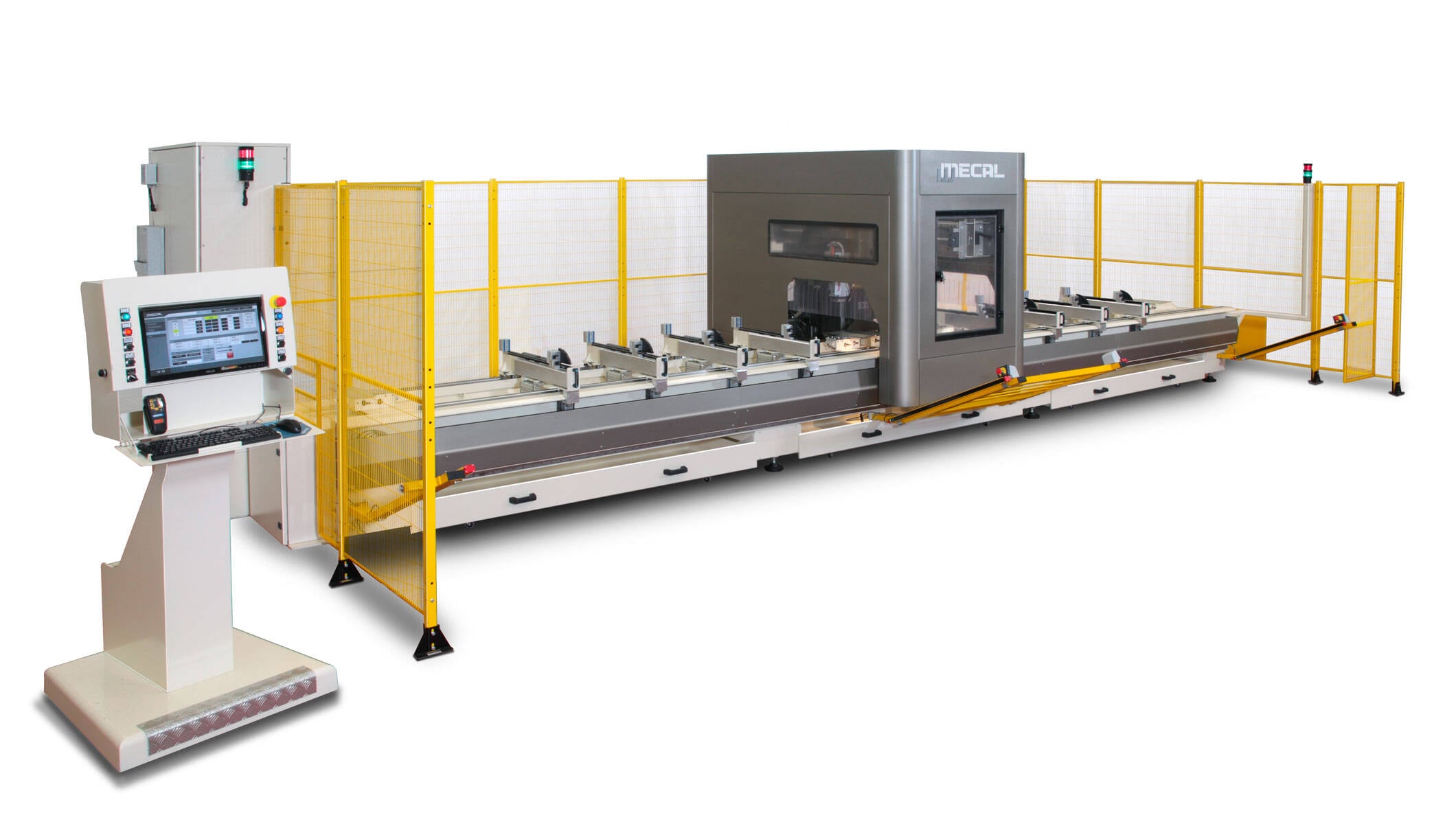

• The locking clamps slide on precision guides.
• The working area of the machine can be used as a single working field or be used in pendular mode obtaining 2 separate working zones, so reducing significantly the loading and unloading time.
• Milling operations can be performed with linear and circular interpolation of the axes X-Y-Z.
• Using a disk cutter, it is possible to work on both sides at the end of the profile (end-milling cycle).
• Using a drill, a frontal drill or a tool for threading you can work on any face of the profile.
• The hinging length stop are pneumatically managed.
• The electric spindle is suitable for quick tool holder change.

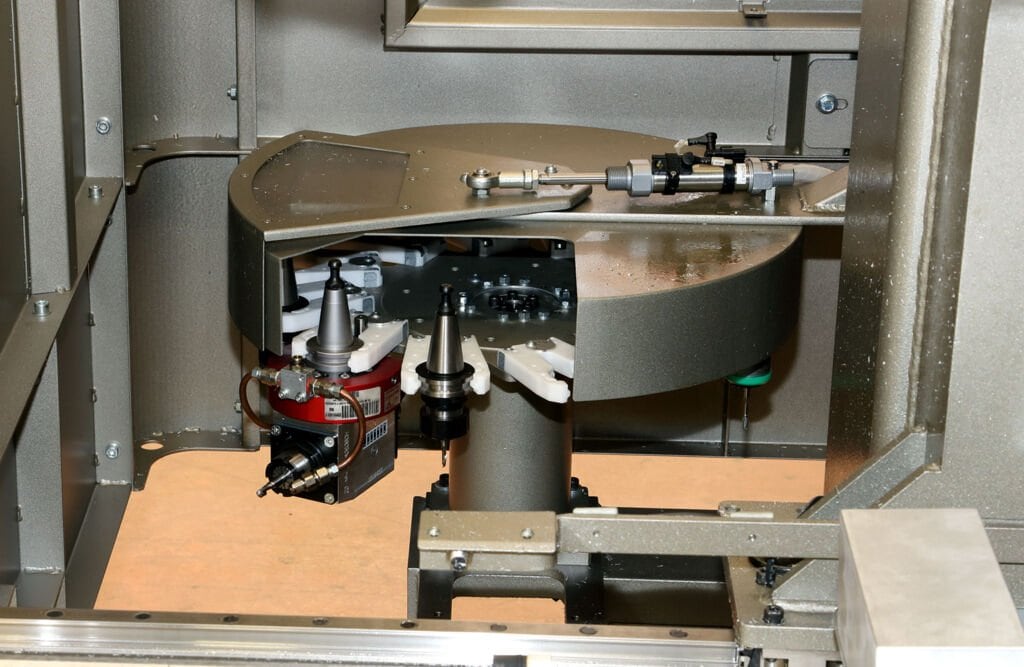

• The tool magazine with 12 positions is located on the carriage of the machine; the tool change can be realized in any position of the working area, with significant time reduction.
• The standard configuration of the machine is with 8 clamps.
• The tools cooling is realized through a centralized minimal system.
• All slide ways and ball recirculation screws are lubricated through an automatic centralized system.
• Pre-arranged to use a set of chips collector bins.
• Pre-arranged for the inclusion of a motorized belt conveyor for evacuation of chips.

Technical data

X axis stroke	mm	7420 9420 11420
Y axis stroke	mm	1460
Z axis stroke	mm	620
A axis stroke (4 axes version)	deg	± 90°
Type of coupling holder		ISO 30
Electrospindle rated power (S1)	kW	7,5
Cooling system		Air
Max speed rotation	rpm	24000
Tool magazine available positions	N.	12
Weight	kg	6500 7500 8500
