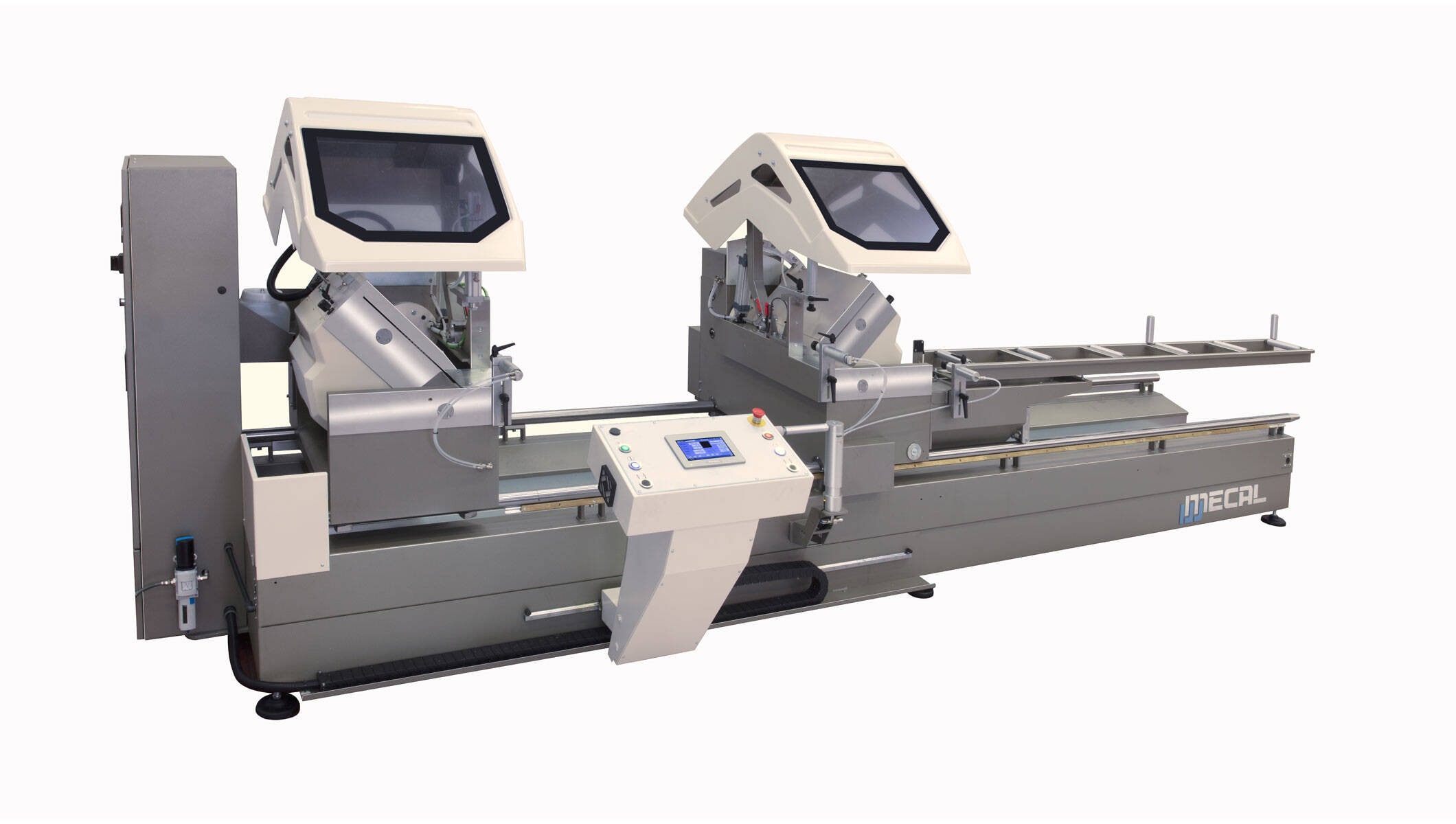

Aluminium Processing - Double Head Saw - sw 453 plug

Double mitre saw with a fixed unit on the left and the other one movable.

  • Automatic positioning of the movable unit.

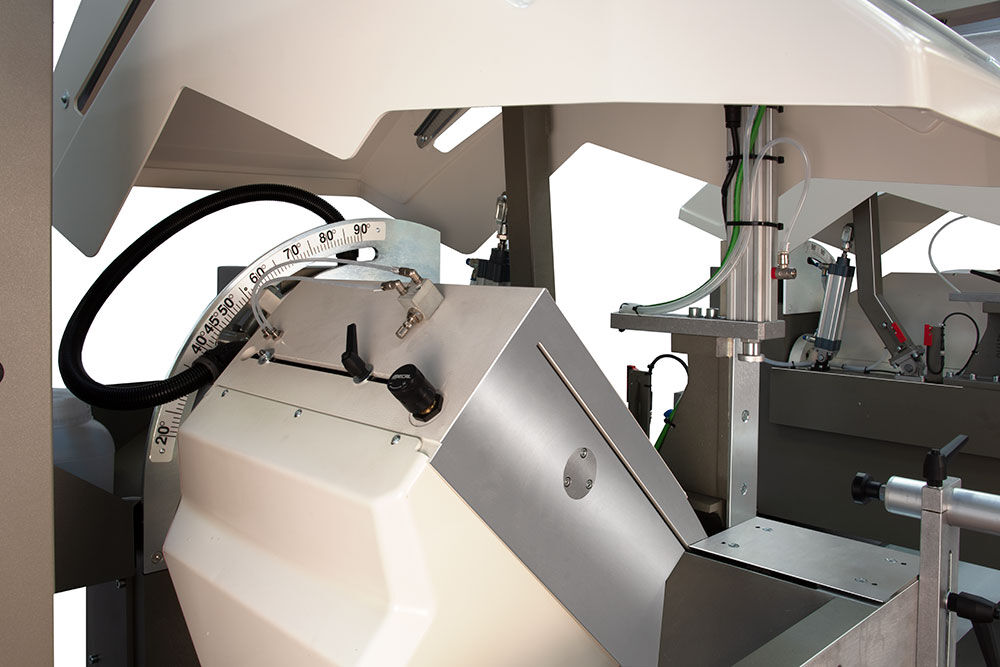

  • Pneumatic tilting of the heads (90°, 45° or 22,5°).
  • The intermediate degrees can be obtained by manually setting mechanical stops.
  • Realized with cutting length of 4000 mm, 5000 mm, 6000 mm.

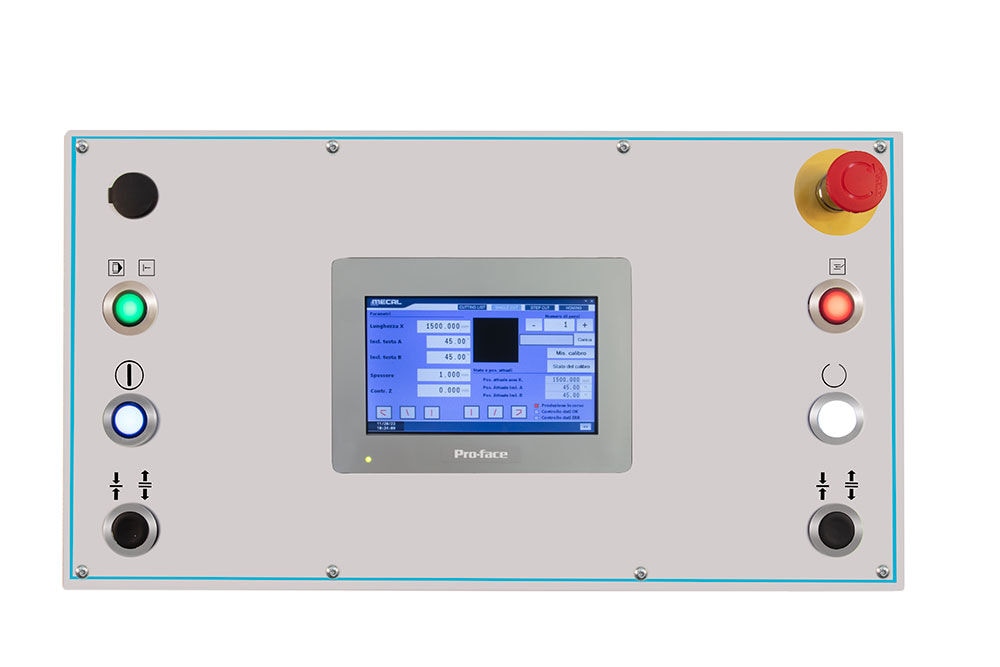

  • It’s equipped with a graphic operator panel (HMI 7.0 “Touch Screen).
Advantages
  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
  • Frontal and radial blade feed with speed adjustments.
  • Hydro-pneumatic blade feed.
  • Wide cutting capacity by means of sawblades Ø 500 mm.

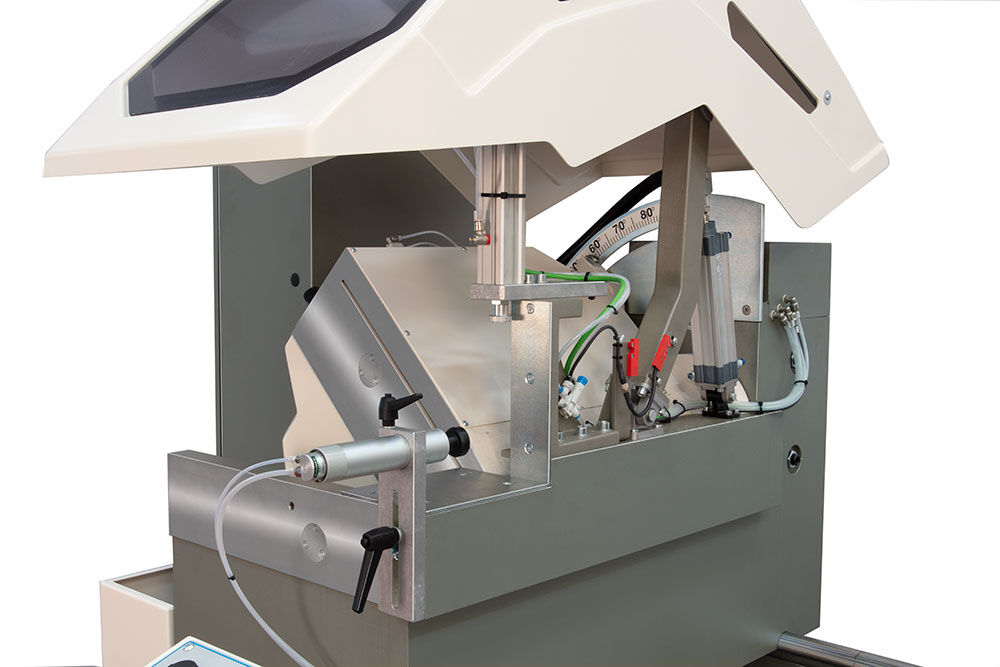

  • Dynamic protection guards for a total covering of the cutting area.
  • Mist spray lubrication tools (Venturi system).
  • Pre-arranged to connect an exhaust extractor for swarf.
  • Pre-arranged to connect a motorized belt conveyor.
Technical data
Contemporary useful cutting (90°) mm 4000/5000/6000
Cutting length (min. 90°) mm 400 / 320
Tilting range outwards deg 90°-45°-22,5°
Sawblade diameter mm 500
Diameter bore mm 30
Power kW 2,2 (x 2)
