mc 304 atlas 4 panels dpm

Name: mc 304 atlas 4 panels dpm
Brand: SCM

(512) 931-1962

mc 304 atlas 4 panels dpm Aluminium Processing

Request information

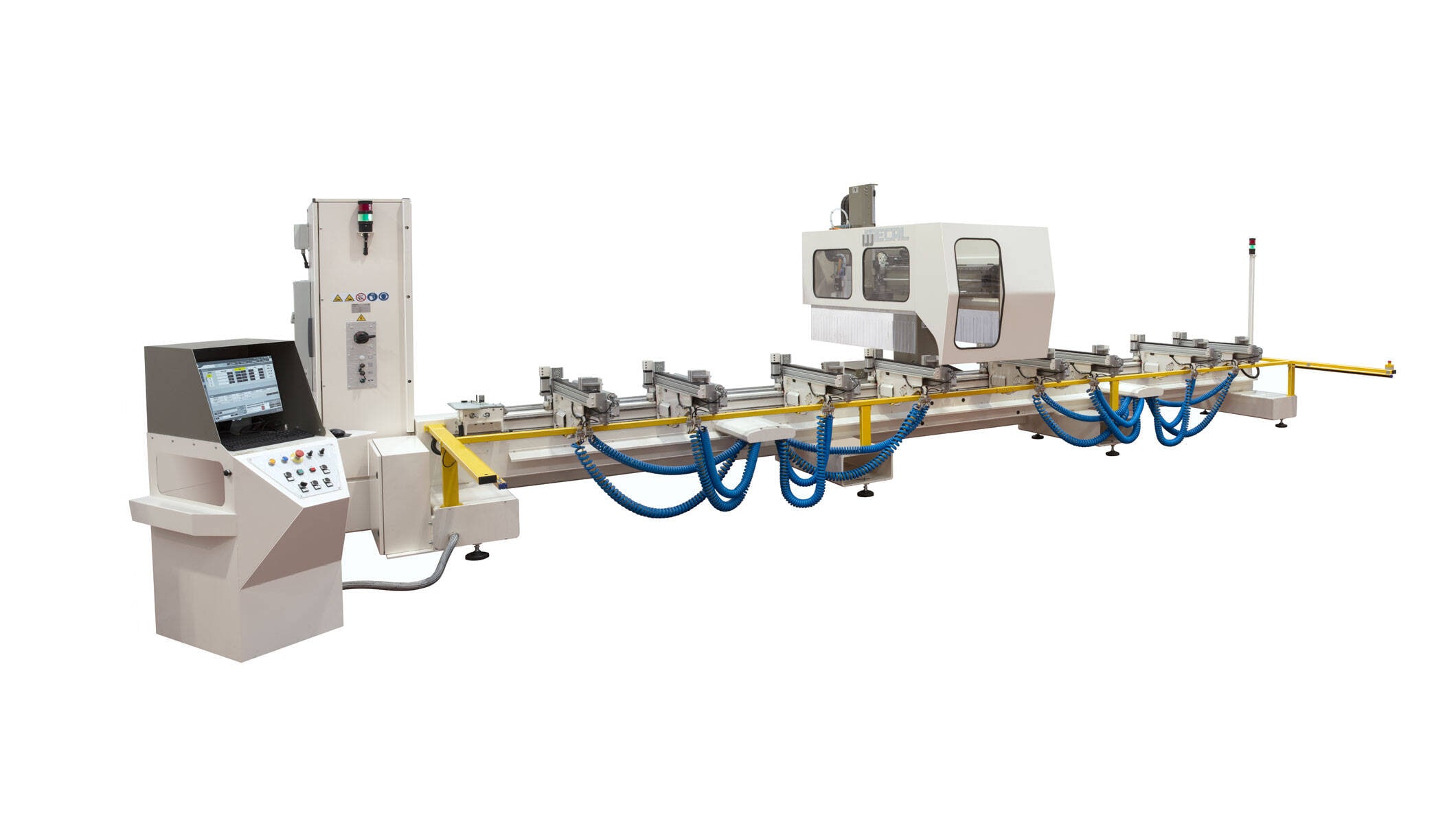

4 axis CNC floor type vertical spindle machining centre.

DPM = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic movement of the single clamps.
PANELS = Dedicated to the machining of composite panels thanks to the particular structure of the clamps.
4 axis (X, Y, Z, A) managed by CNC.
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis ( side by side at Y axes) on the positions within 180° (± 90°).
With dedicated accessories it can work on five sides of the profile.

Advantages

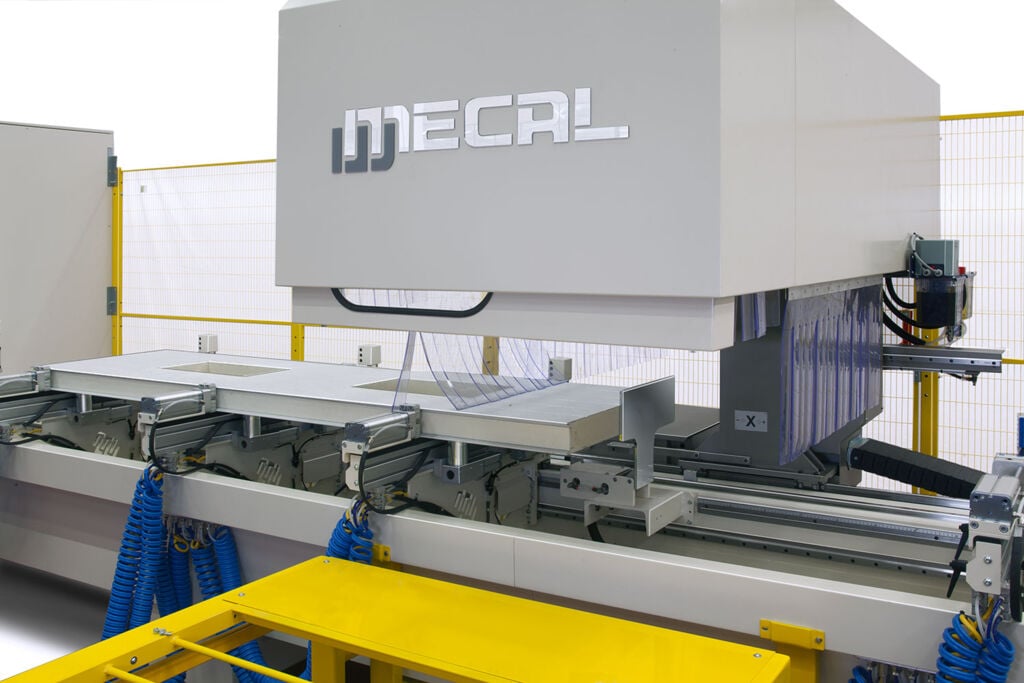

The locking clamps slide on guide rail, too
The working table (X axis) can be divided in two areas so to get two separate working stations.

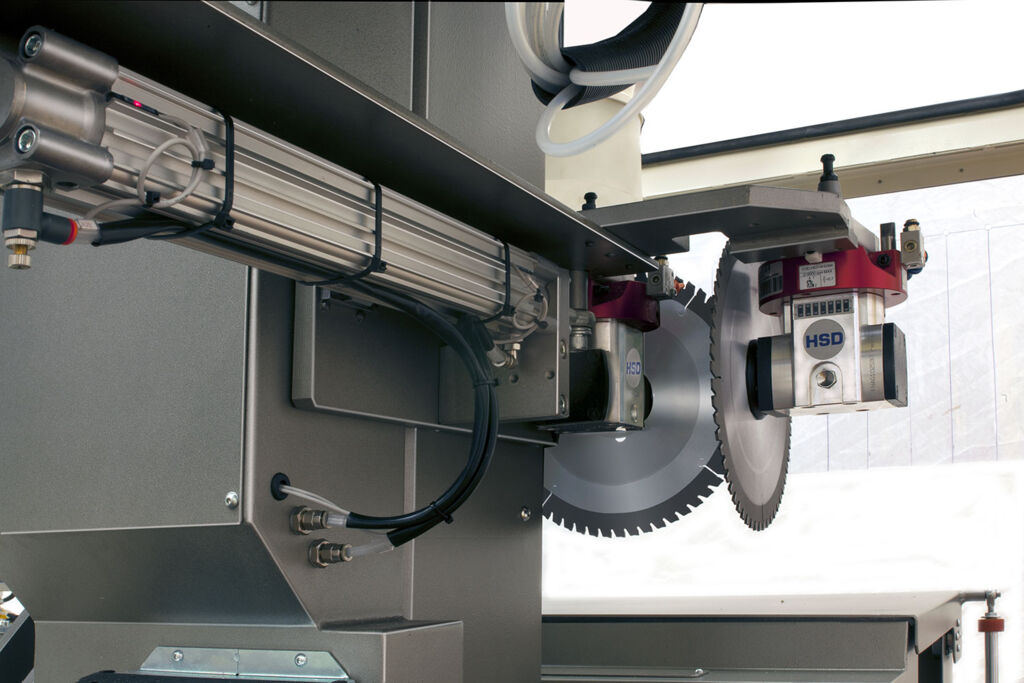

Using a disk cutter, it is possible to work on both sides at the end of the profile (end‐milling cycle).
Milling operations can be performed with linear and circular interpolation of the axes X‐Y‐Z.
The hinging length stop are pneumatically managed
The electric‐spindle is suitable for quick tool holder change; the change of the tool holder is automatically managed
The tool magazine is mounted on the mobile upright. The tool change can be carried out into any position belonging to the working area.
The tools cooling is done through a centralized system that optimizes the required minimal lubrication

Technical data

Media

Documentation

mc_304_atlas_4_panels_dpn_EN Download
