mc 309 nike mu dpm

(512) 931-1962

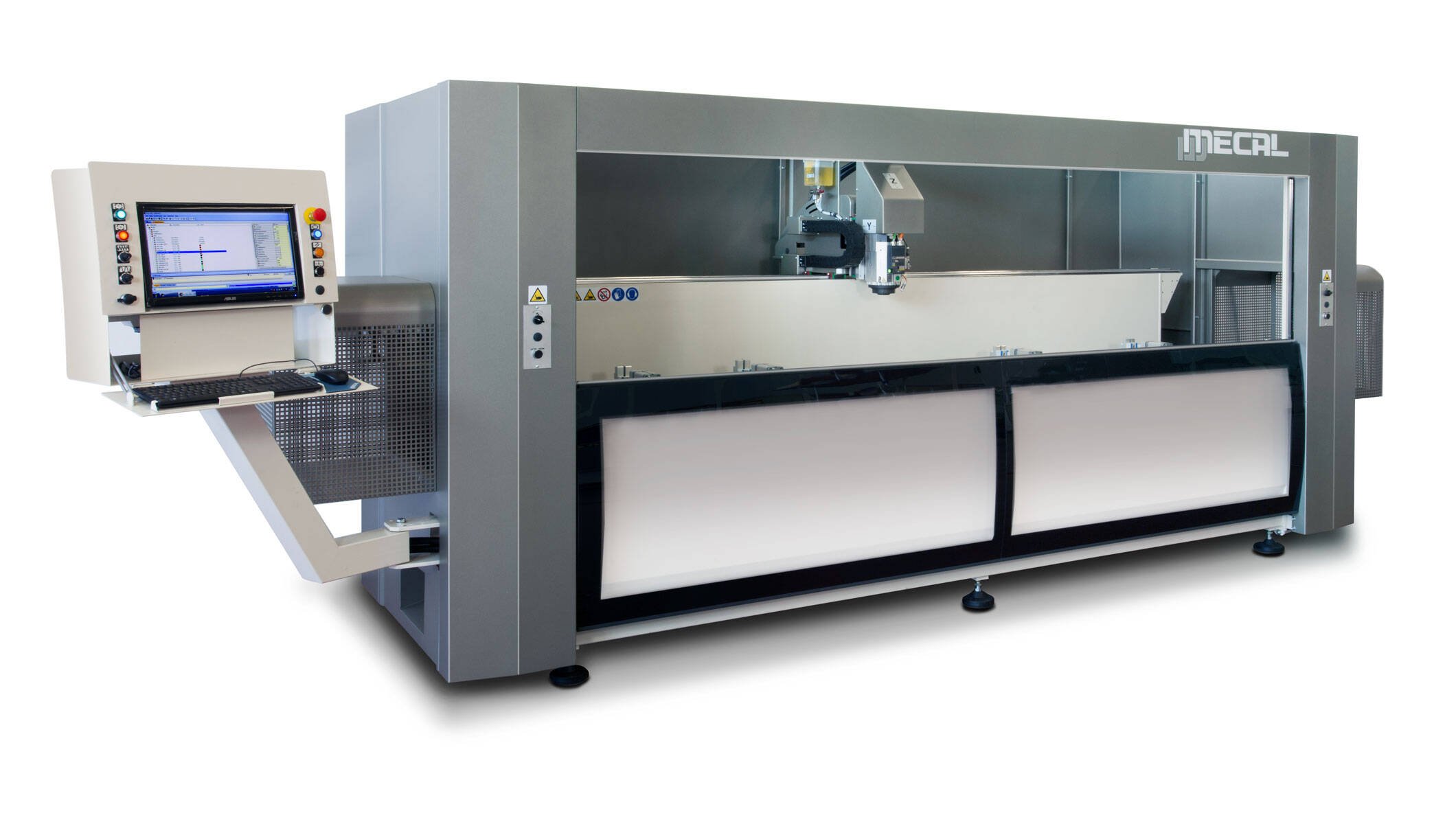

3 axis CNC + 1 axes pneumatically managed floor-type vertical-spindle machining centre.

• DPM = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic movement of the single clamps.
• 3 axis (X, Y, Z) controlled by CNC + 1 axes pneumatically managed.
• Suitable for the machining of aluminum profiles for the sector of windows and door.
• The positions 0° and ± 90° of the rocking beam are fixed; intermediate angles are manually settable and managed with a pneumatic system through the software.

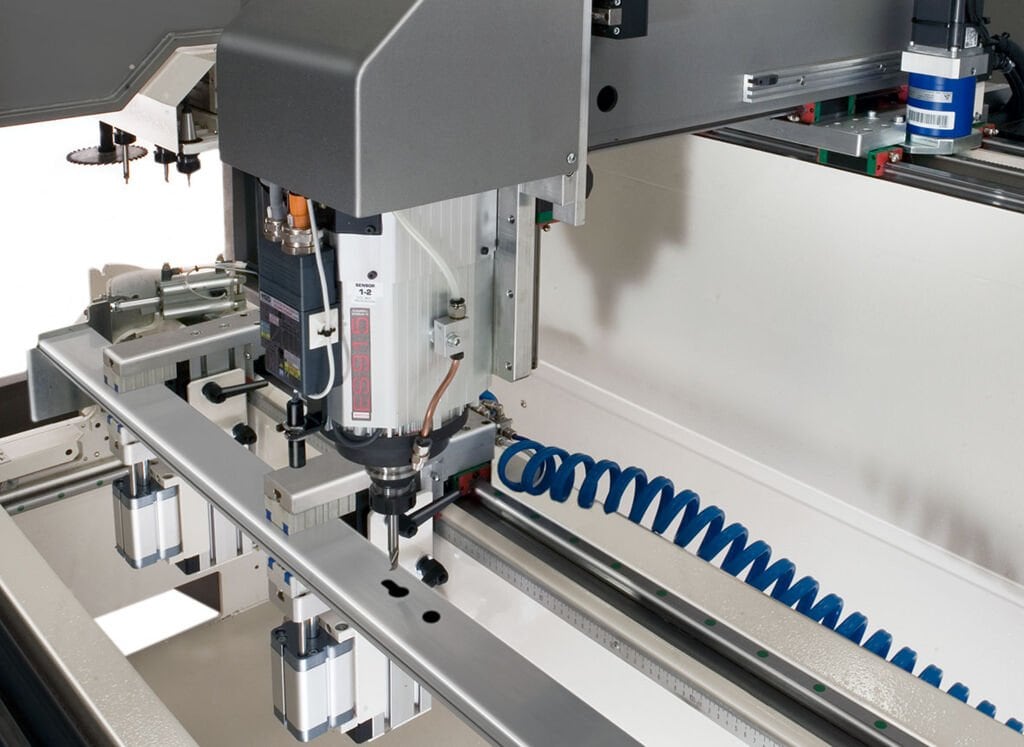

• The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam. The beam can be positioned at any preselected angle within ± 90°, managed directly by the CNC control.
• Workable section: 200 x 170 mm (YxZ).

Advantages

• Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
• The axis slide on precision profile guides and are driven by motors operated with digital systems.
• Profile holder system (no. 4 clamps) slides on precision guides.
• The locking clamps slide on precision guides and can be positioned automatically by the mobile upright.
• The positioning of the clamps beam at intermediate angles is done with the manual positioning of mechanical devices dedicated. These devices are managed automatically by the duty cycle so as not to be prevented when they are not mentioned in the work program.

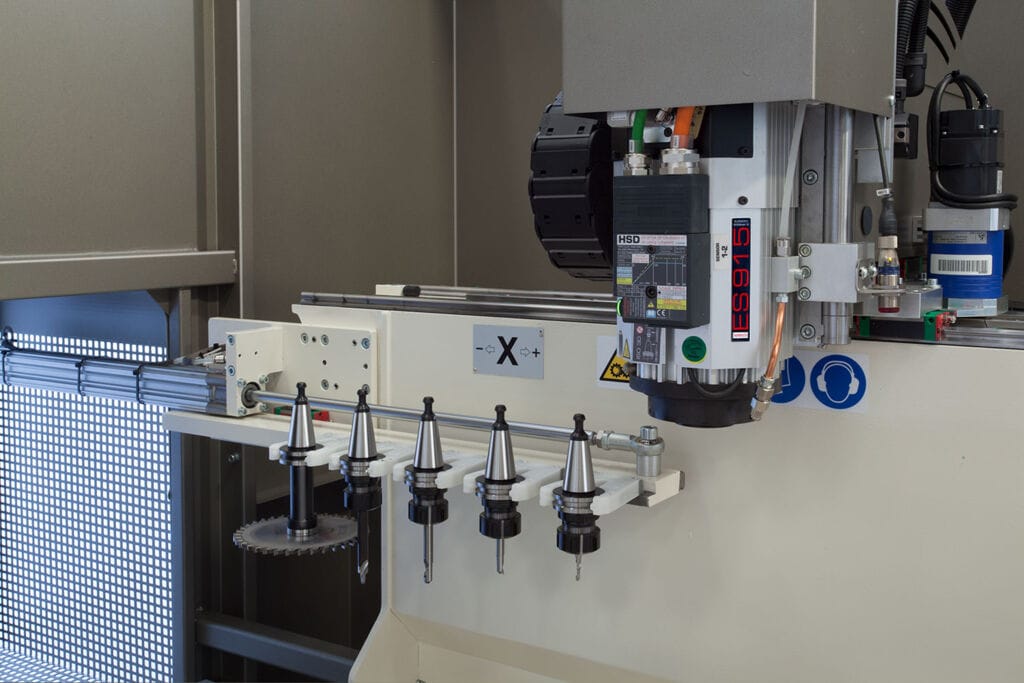

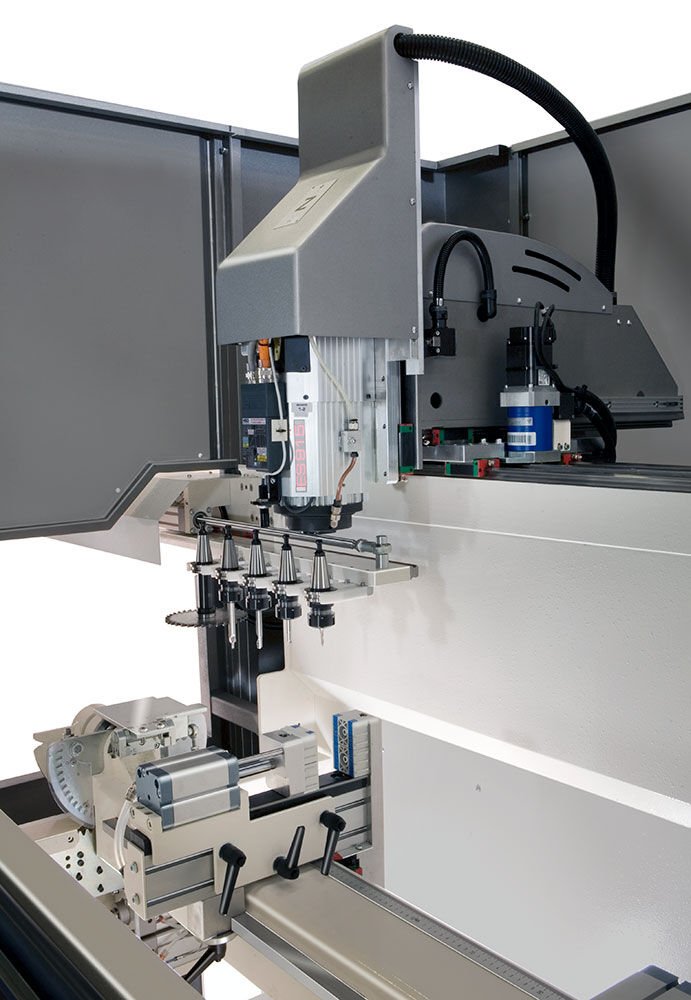

• 5-position tool magazine on the machine. It may contain tools for drilling, milling, tapping, end-milling. A second magazine can be added on the right side.
• Linear and circular interpolation on the axis X-Y-Z.
• By using the disc cutter it is possible to carry out end-milling on both ends of the workpiece (end-milling cycle).
• By means of dedicated tools it is suitable for working on 5 sides of Aluminium, PVC and steel sections.
• The 2 hinging length stops are pneumatically operated.
• The electric-spindle is suitable for quick tools change.
• The tools cooling is done through a centralized system that optimizes the required minimal lubrication.
• The useful stroke for working bars is 3270 mm with blades Ø 150-200 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (6540 mm).

Technical data

X- axis stroke	mm	3500
Positioning speed X-axis	m/1’	70
Y-axis stroke	mm	370
Positioning speed Y-axis	m/1’	30
Z-axis stroke	mm	348
Positioning speed Z-axis	m/1’	30
A axis stroke	deg	± 90°
Electrospindle rated power	kW	3,8
Cooling system		Air
Tool holder cone		ISO30
Max rotation speed	rpm	18000
Weight	kg	± 2200
