fe 400 vico 3 inox

(512) 931-1962

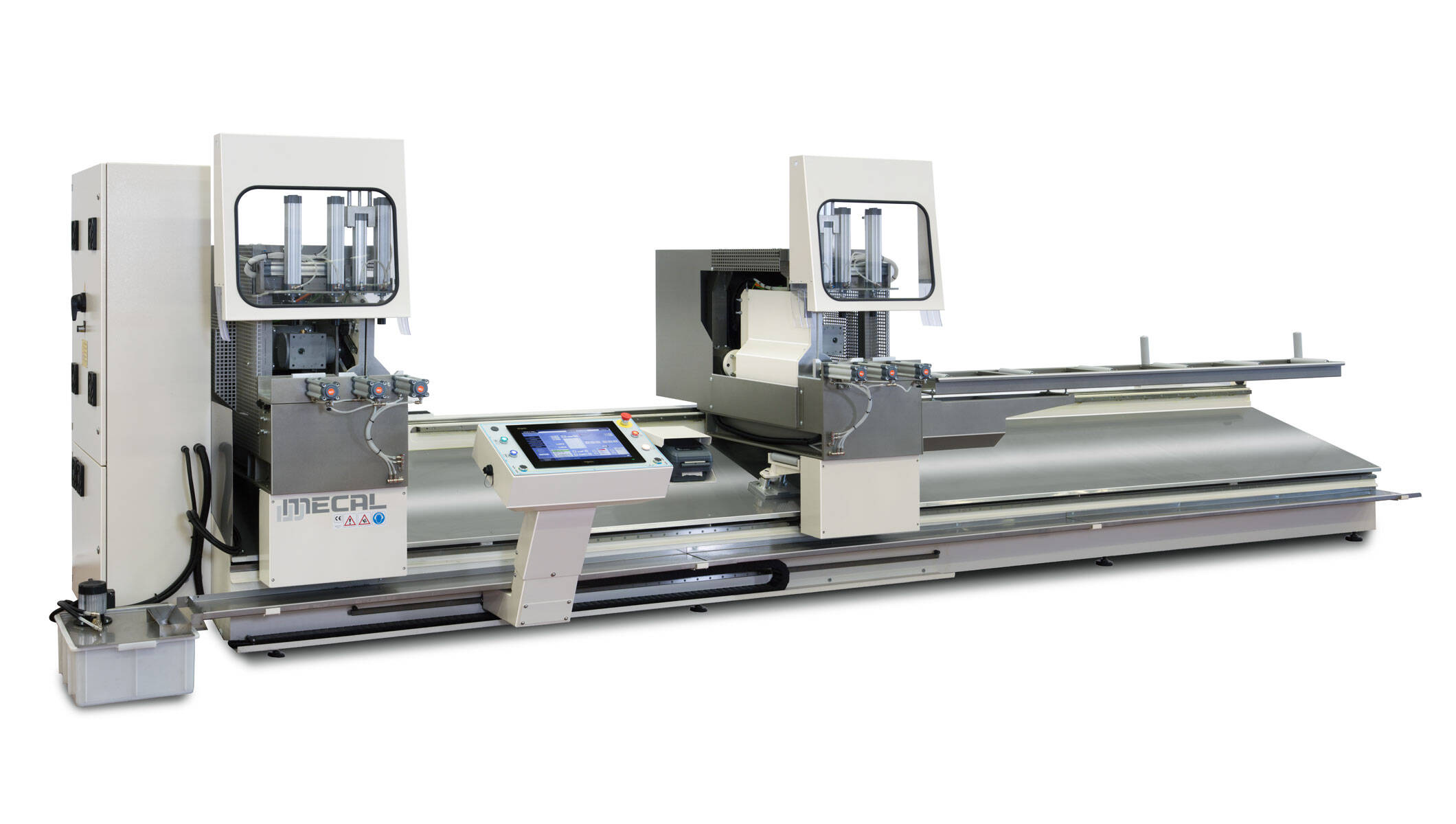

Double head mitre saw with disappearing blades specifically studied for the tubular steel shapes.

• 7 axes controlled by NC [cutting length (1), blades inclination (2), rotation speed of the blades (2), forward speed blades (2)].
• Fixed cutting unit on the left.
• Powered positioning of the mobile cutting unit.
• Electronic positioning of the cutting units on any angle within 45° and 135°.

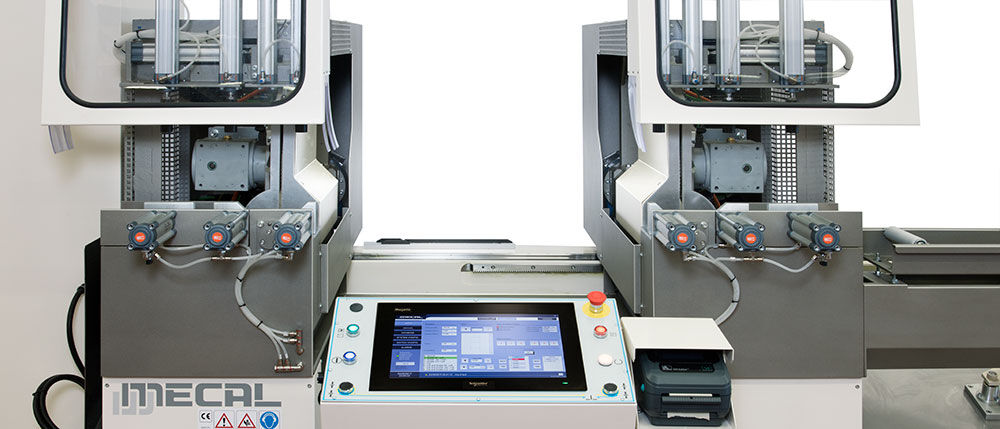

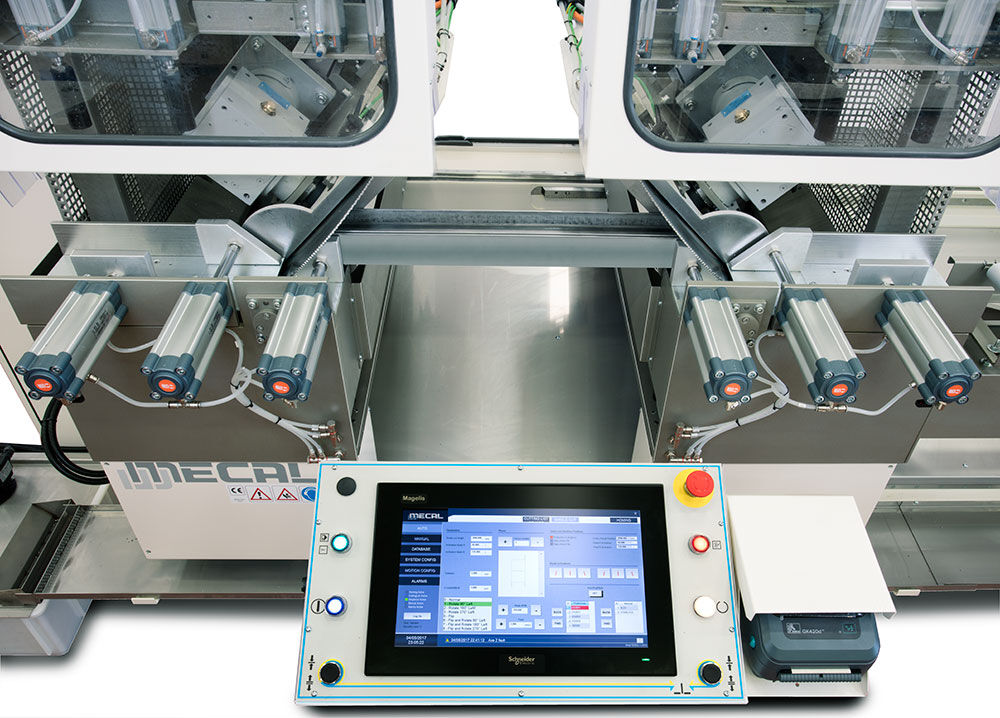

• Equipped with Magelis 15″, for standard double saw cuts, over length, under size cut and for short pieces till the theoretical limit of 0 mm.

Advantages

• Frontal and straight blade feed with speed and stroke adjustments.
• The blade translation movement is achieved by a precision reducer and a pinion‐rack assembly. The axis drive is actuated by a brushless dc motor controlled by a digital converter.
• The rotation of the cutting blades is handled through brushless servomotor, the speed of rotation is variable by means of an inverter.
• Automatic displacement of the support plates of the profile once over the active phase of cutting.
• Dynamic protection guards for a total covering of the cutting area.
• Blade lubrication‐cooling system with electric pump.
• Tank for the coolant with extractable pump for rapid routine maintenance.

Technical data

Contemporary useful cutting (90°)	mm	5000
Cutting length (min. 90°)	mm	280
Tilting range	deg	135° <> 45°
Blade motor power	kW	4,5 x 2
Blade speed rotation (adjustable)	rpm	250 max
Blade diameter	mm	400
Weight	kg	± 3000
