Aluminium Processing - CNC machining centres - mc 305 kosmos tm mmi

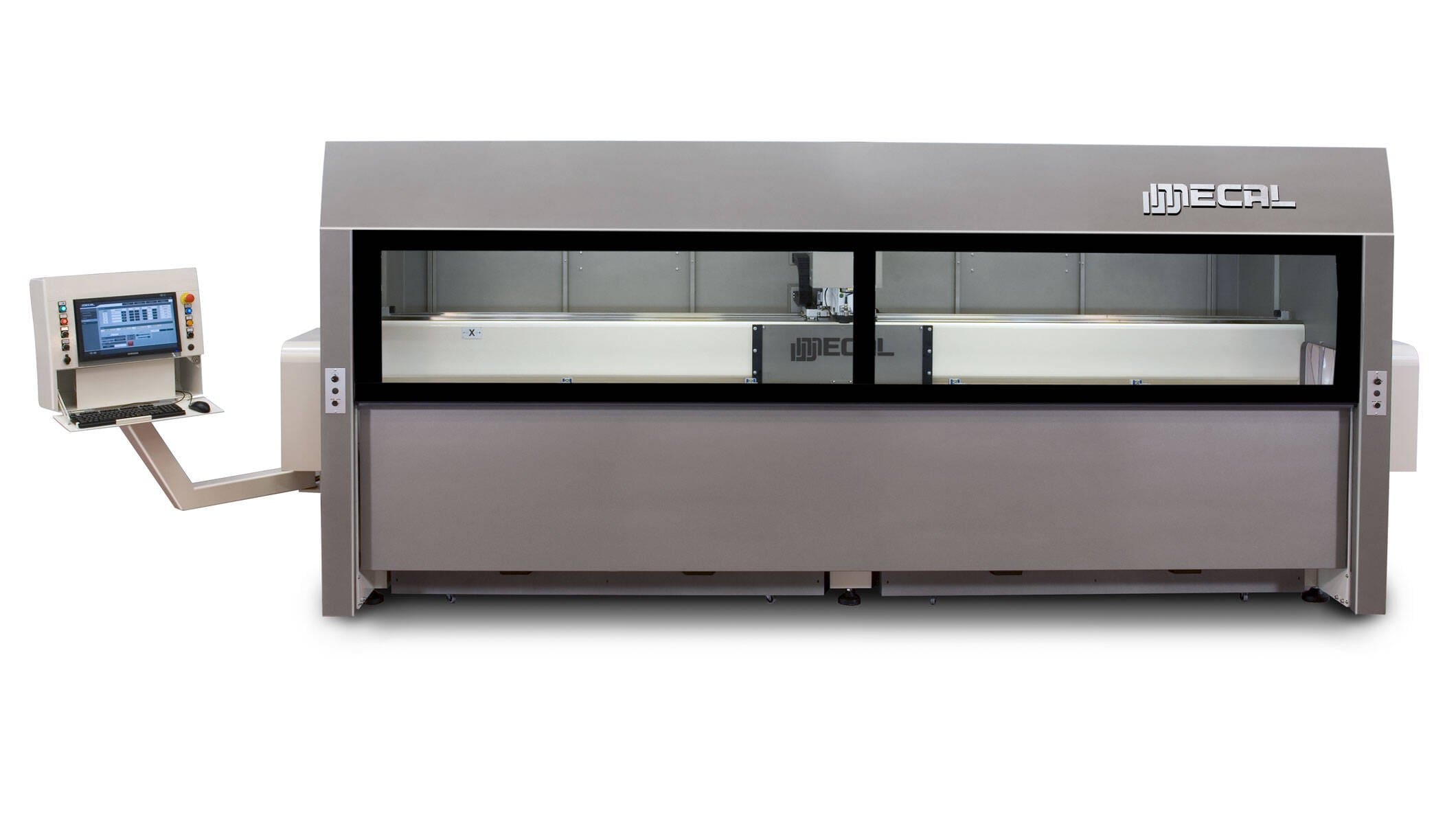

4 axis CNC floor-type vertical spindle machining center.

  • TM = Mobile Beam.
  • MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
  • Suitable for the machining of aluminum extruded profiles for residential architecture, and even for light steel shaped profiles.
  • 4 axis (X, Y, Z, A) managed by CNC.
  • By means of dedicated tools it’s suitable for working on 5 sides of aluminium, PVC and steel sections.

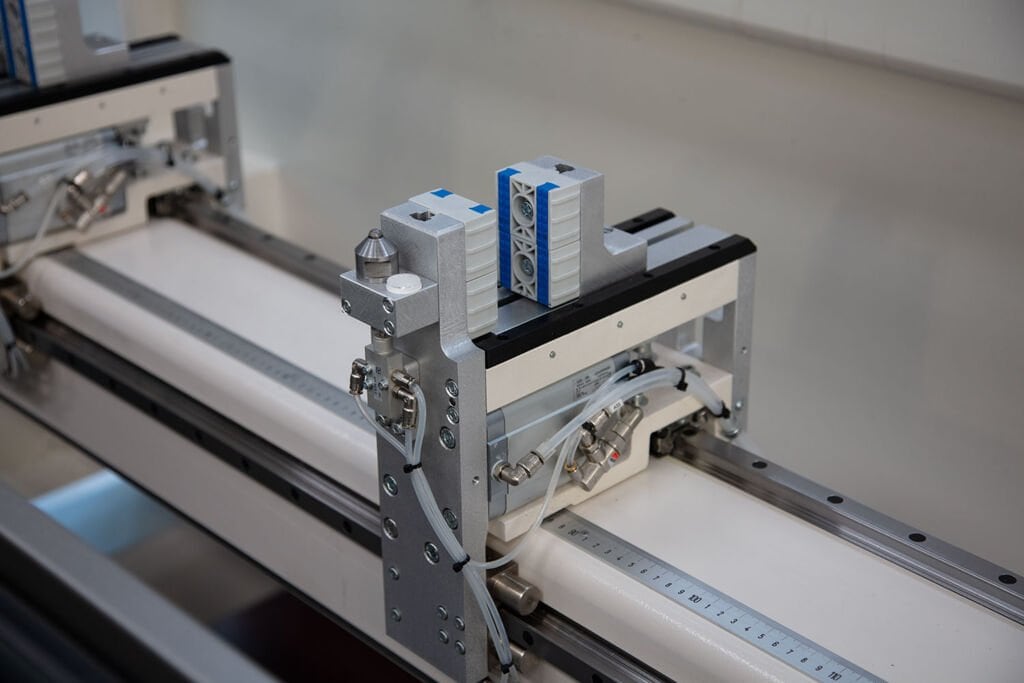

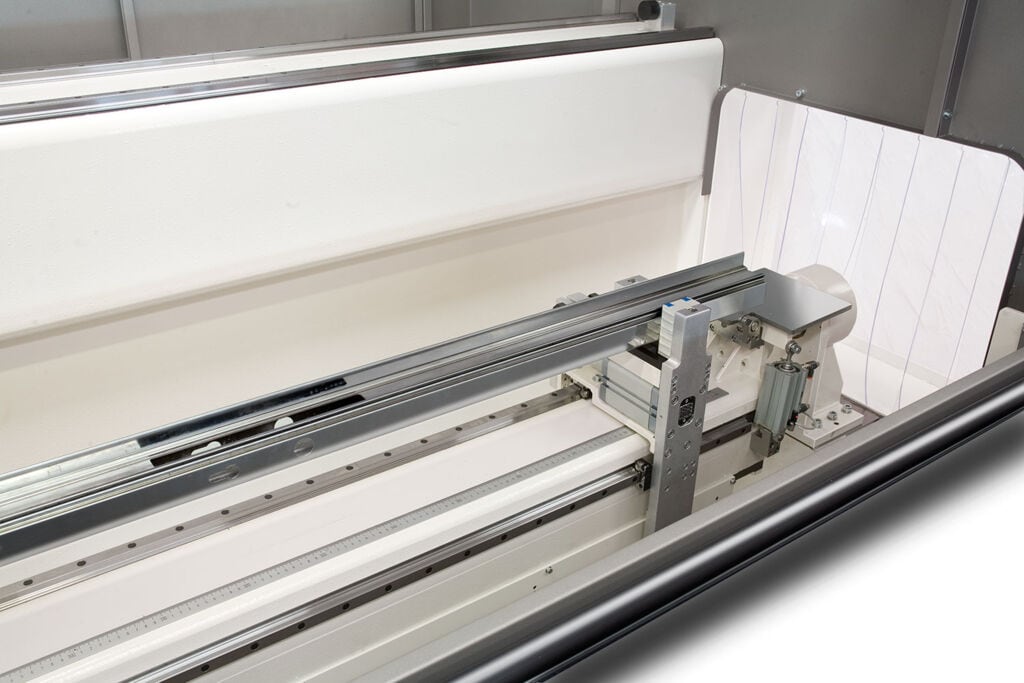

  • The workpieces are fixed with 4 pneumatic clamps, sliding on the rocking beam. The beam can be positioned at any angle within ± 125°.
  • The rotation is directly managed by the control cycle.
Advantages
  • It offers a high programming functional capacity by using a three-dimensional graphics software.
  • Electro-welded base designed to grant maximum rigidity and functional capacity of use.
  • The axis slide on precision linear guides and are driven by motors operated with digital systems.
  • By using the disc cutter it is possible to carry out end-milling operations on both the ends of the work piece (end-milling cycle).
  • Milling operations can be performed with linear and circular interpolation of the axes X,Y,Z.
  • The 2 hinging length stops are foldaway and with pneumatic control.
  • The useful stroke for working bars is 4000 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (8000 mm).
  • The electric spindle is suitable for quick tool holder change.
  • The change of the tool holder is AUTOMATICALLY managed.

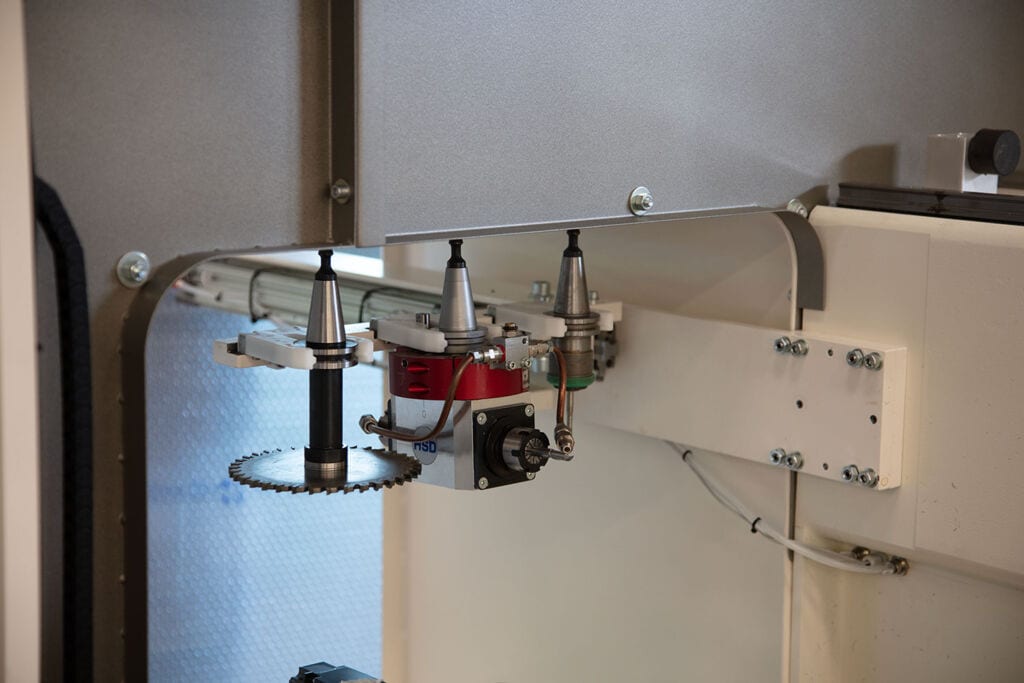

  • The tools magazine is positioned in the middle of the basement, inside a protected area. It can store tool holders for milling, threading, end-milling and also angular heads.
  • The tools cooling is realized through a centralized minimal system.
  • All slide ways and ball recirculation screws are lubricated through an automatic centralized system.
  • Pre-arranged to use a set of tanks to collect swarfs.
  • Pre-arranged to connect a motorized belt conveyor.
Technical data
X axis stroke mm 4225
Positioning speed X-axis m/1’ 80
Y axis stroke mm 530
Positioning speed Y-axis m/1’ 30
Z axis stroke mm 410
Positioning speed Z-axis m/1’ 30
A axis stroke deg ± 125°
Electrospindle rated power kW 6.0
Cooling system   Air
Tool holder cone   ISO30
Max rotation speed rpm 18000
Weight kg ± 3200
