mc 304 ariel 5 mdt

(512) 931-1962

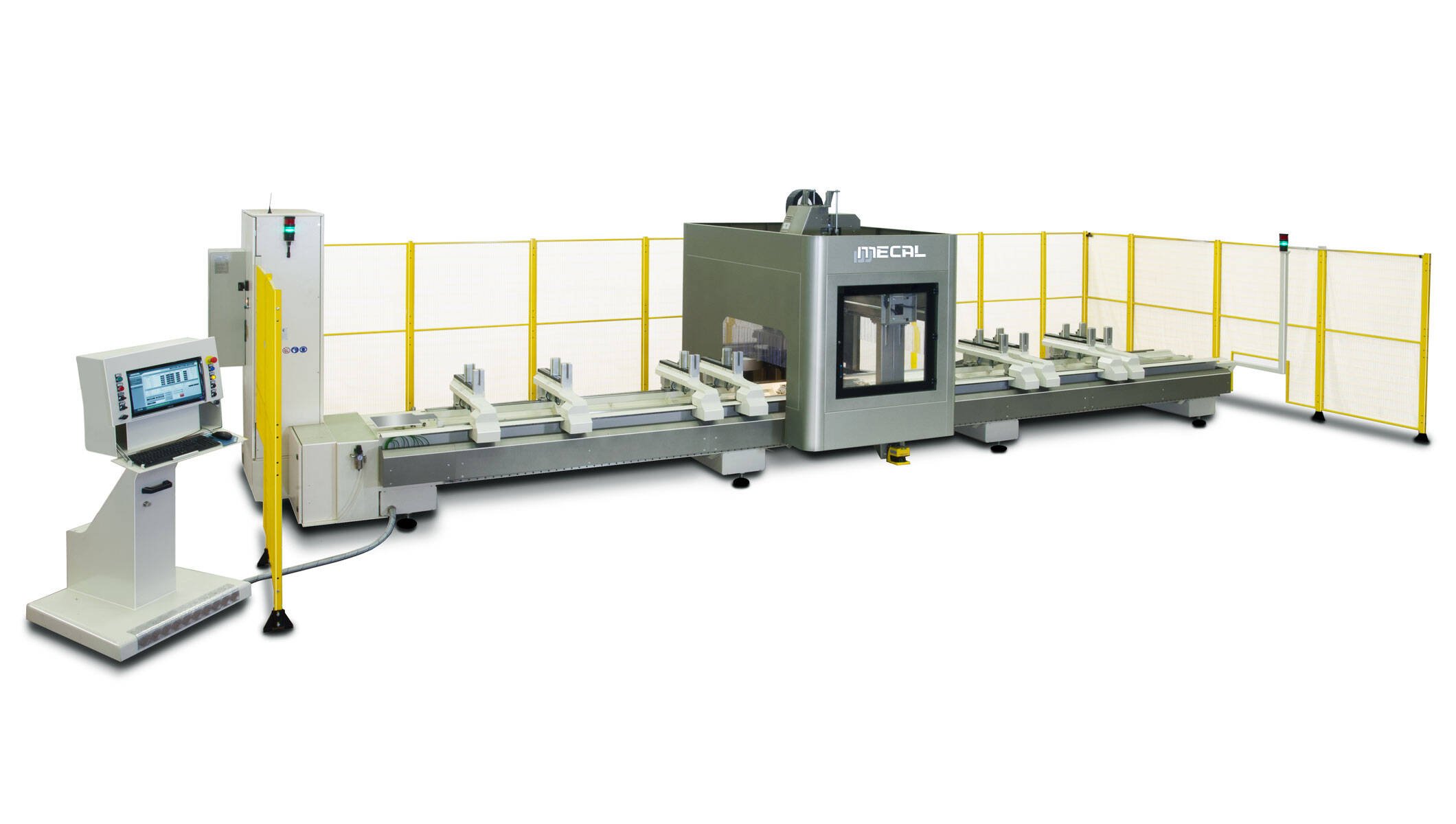

5 axis CNC floor type vertical spindle machining center

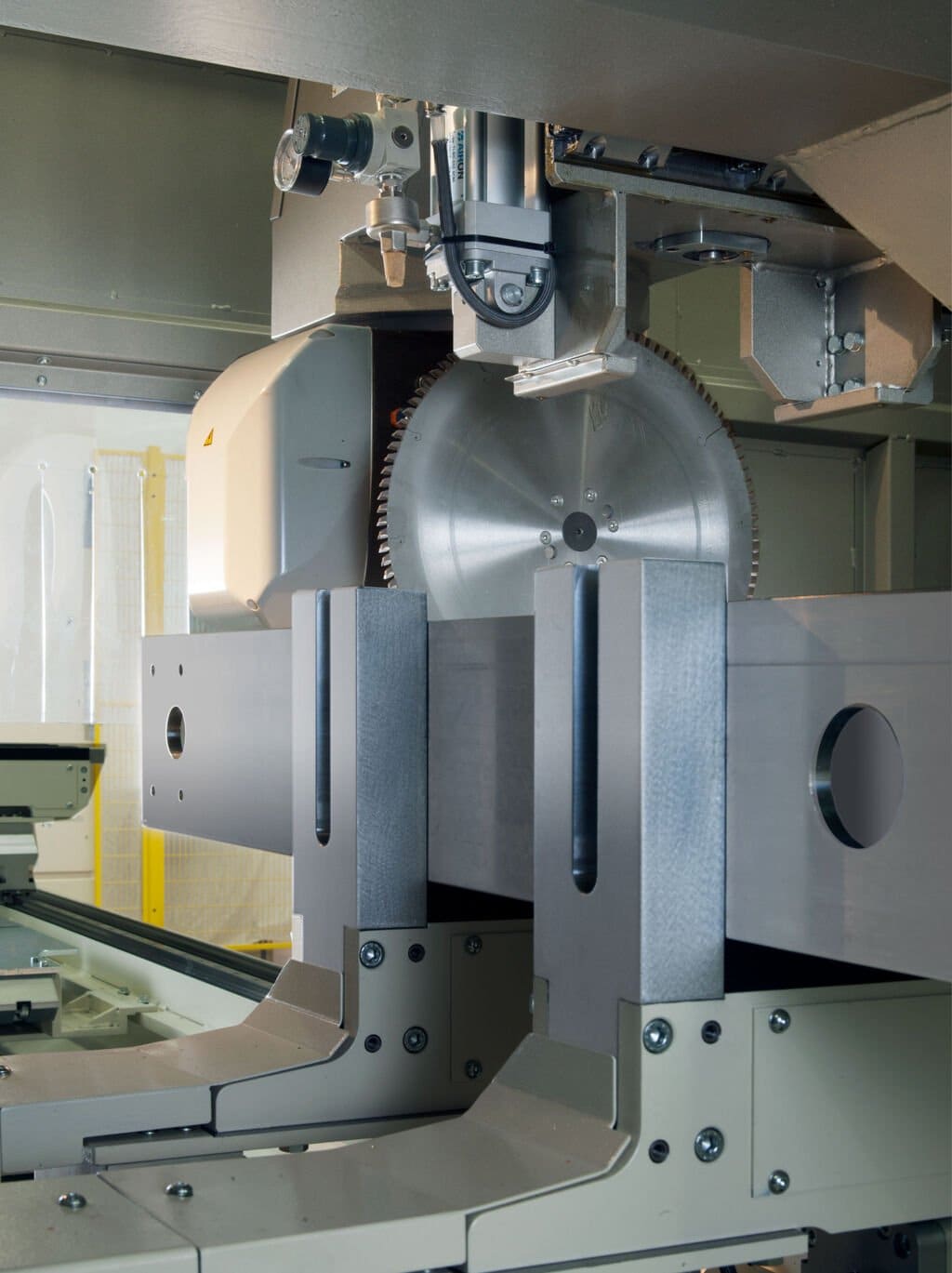

• MDT means “Cutting Module”. It is a system to obtain multiple pieces derived from a single profile bar. The clamps used are equipped with independent drive. It is expected that each workpiece is held by at least two vices; once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position.
• Particularly suitable for working profiles for curtain walls of considerable size.
• 5 axis (X, Y, Z, C, A) managed by CNC.

Advantages

• The axis slide on precision profile guides and are driven by motors operated with digital systems.
• All slide ways are lubricated through an automatic centralized system.
• Simultaneous clamp positioning.
• The vices slide on precision profile guides and are positioned with independent motorization on each clamp, managed by CNC.
• The independent powered system allows the positioning of each individual clamp unit in a very reduced time. This system allows the automatic repositioning of the clamp during the machining.
• Fully equipped with digital technology. The data communication is via optical fiber, ensuring high transmission speed and a complete absence of interferences caused by external factors (frequency, voltage, etc).
• Max working section: 500 x 300 mm (YxZ)
• The longitudinal area of the machine can be used as a single working field or in pendular mode obtaining 2 separate working zones, with loading and unloading of the pieces in masked time. You can machine different pieces inside the 2 working areas.

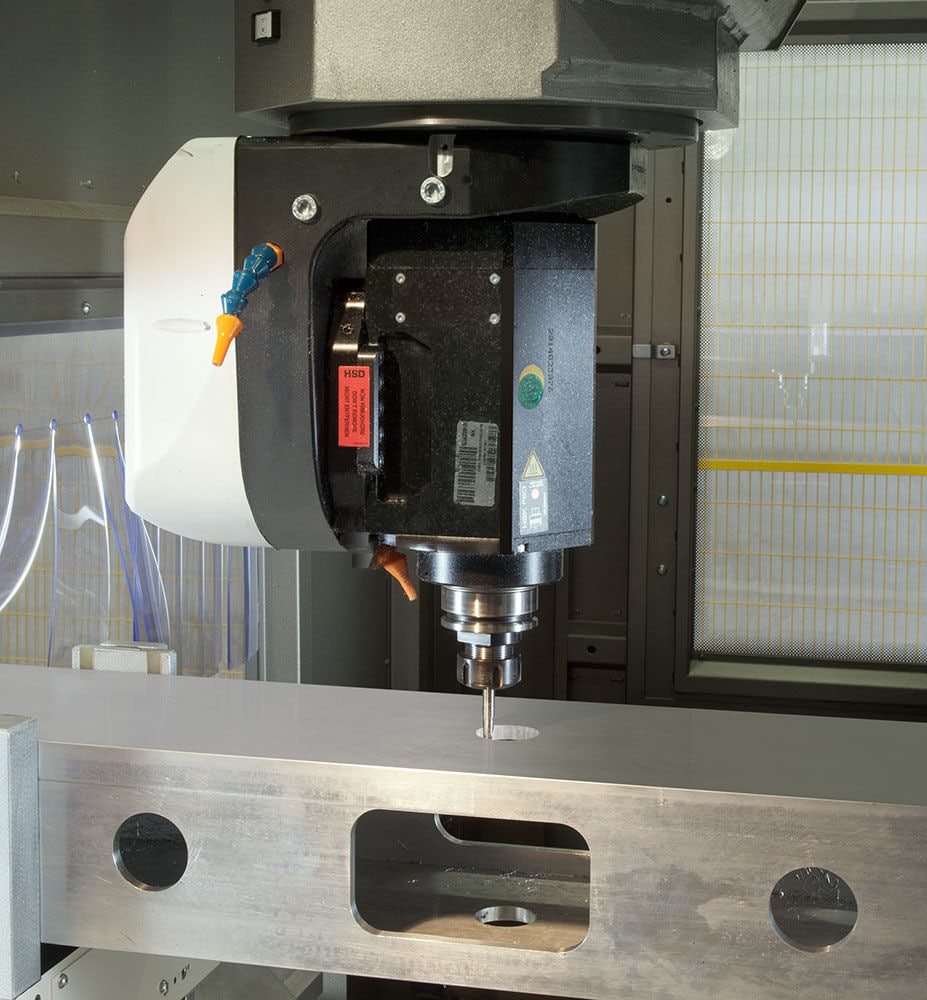

• The high performance provided from the electric spindle 10 kW and from the 12 positions tools magazine make possible to diversify the working with great flexibility.
• “The tool magazine with 12 positions is located on the carriage of the machine; the tool change can be realized in any position of the working area, with significant time reduction.”
• The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
• The tools cooling is realized through a centralized minimal system.
• The machining scraps can be collected in suitable and manually extractable tanks. As alternative, a motor-driven conveyor with rubber belt can be installed, to eject the scraps outside the base.

Technical data

X axis stroke	mm	7480 9480 11480
X axis rapid speed max.	m/1’	80
Y axis stroke	mm	1400
Y axis rapid speed max.	m/1’	60
Z axis stroke	mm	700
Z axis rapid speed max.	m/1’	40
A axis stroke	deg	± 90° ± 120°
C axis stroke	deg	± 210°
Electrospindle rated power	kW	10
Max speed rotation	rpm	24000
Cooling system		Liquid
Type of coupling holder		HSK-F63

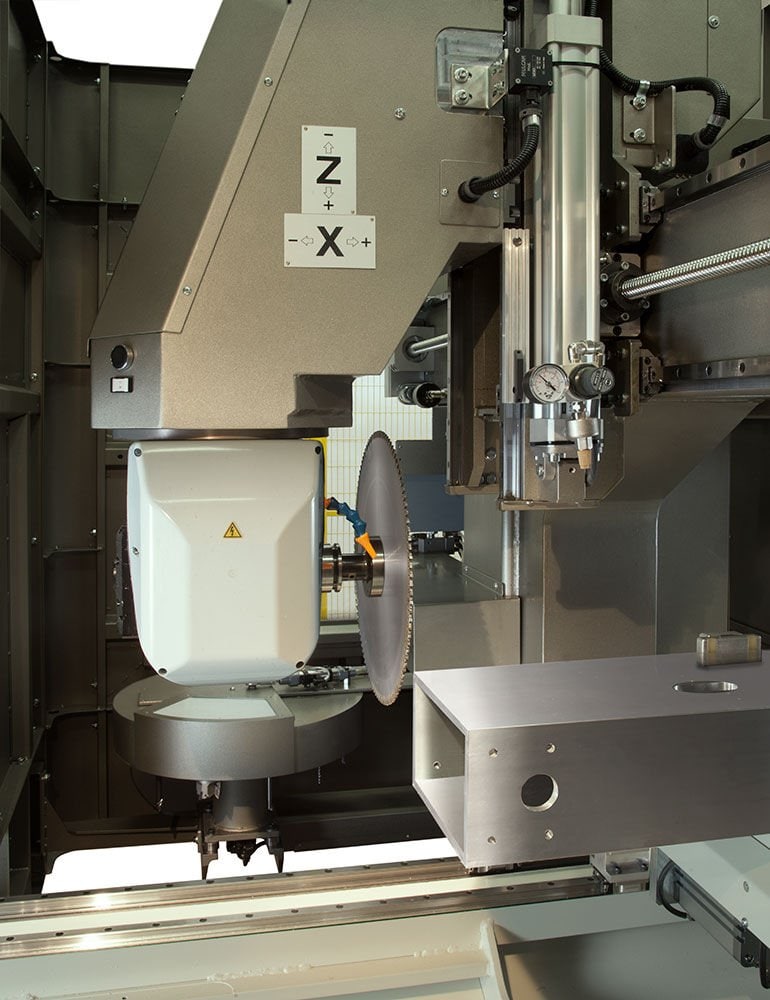

Blade diameter max.	mm	450
Side & Face milling cutter diameter max.	mm	200
Weight	kg	7000 8000 9000
