mc 304 atlas 4 mmi

Name: mc 304 atlas 4 mmi
Brand: SCM

(512) 931-1962

mc 304 atlas 4 mmi Aluminium Processing

Request information

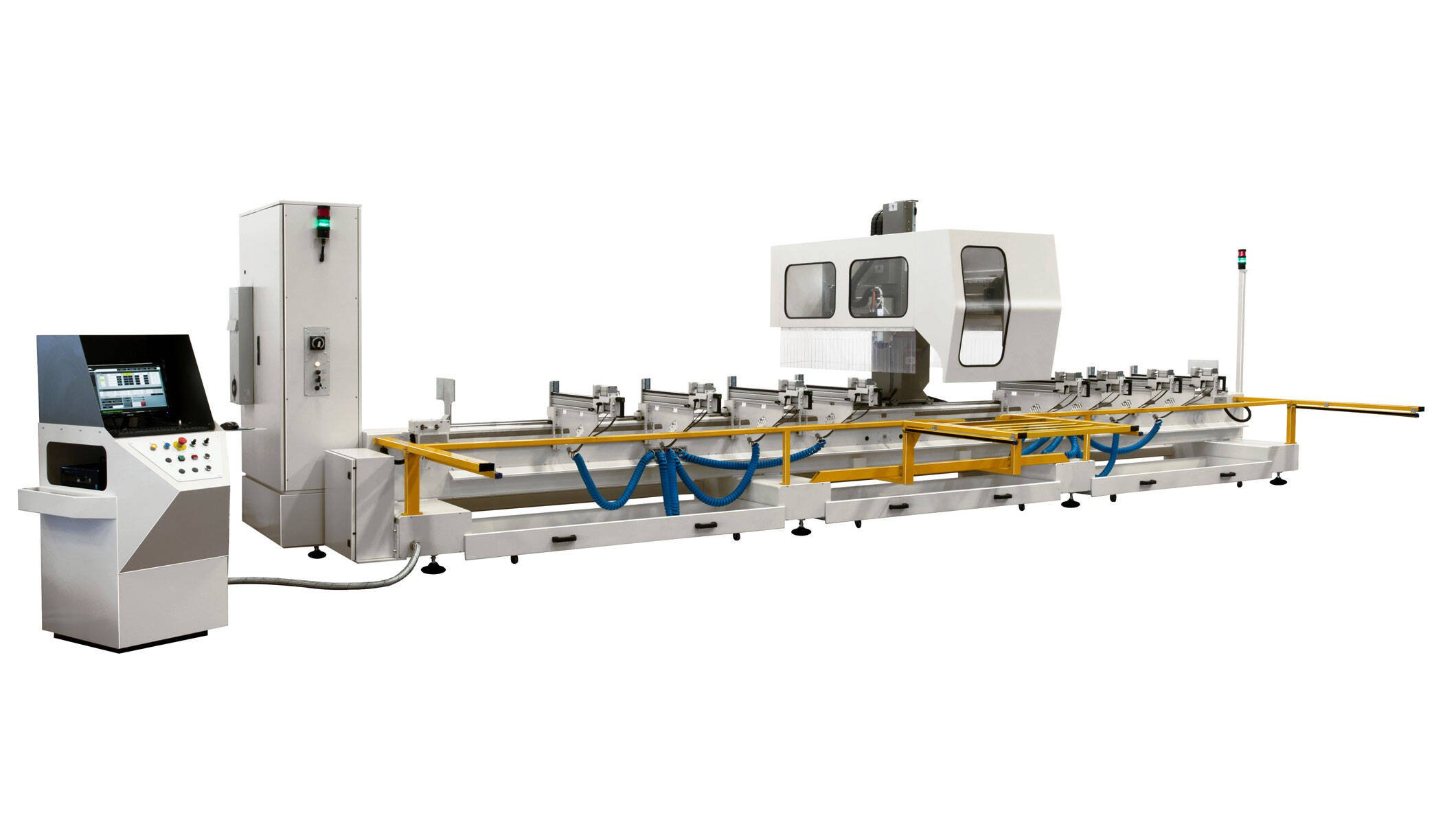

4 axis CNC floor type vertical spindle machining centre.

MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
Suitable for frames and industrial sectors.
4 axis (X, Y, Z, A) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of profiles.
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis (side by side at Y axes) on the positions within 180° (± 90°).

Advantages

The axis slide on precision profile guides with ball recirculation and are driven by motors operated with digital systems.
Configuration of the clamps designed to improve the loading of big profiles, particularly sectional doors.

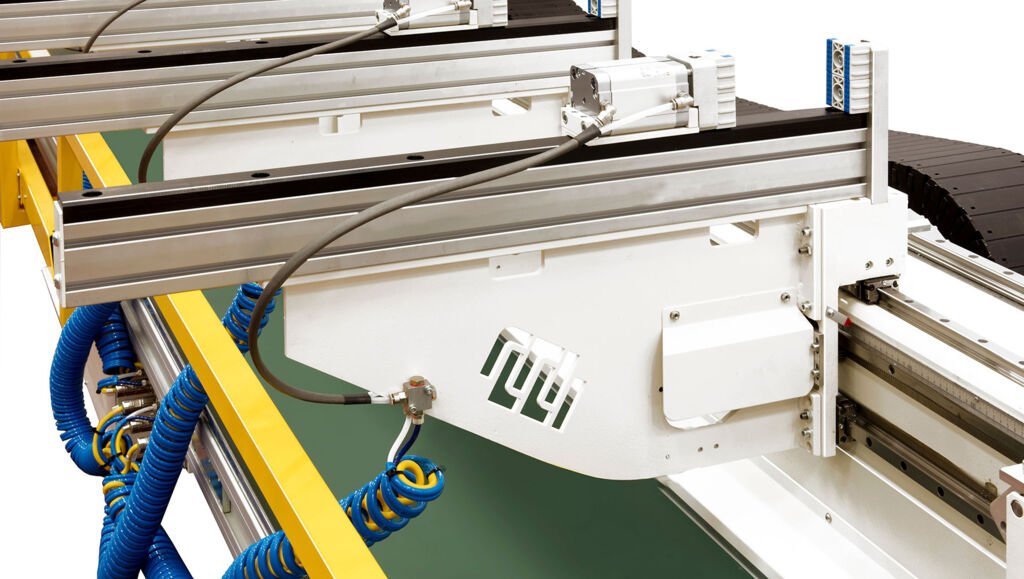

The locking clamps slide on guide rail.
The working table can be divided in two areas so to get two separate working stations.

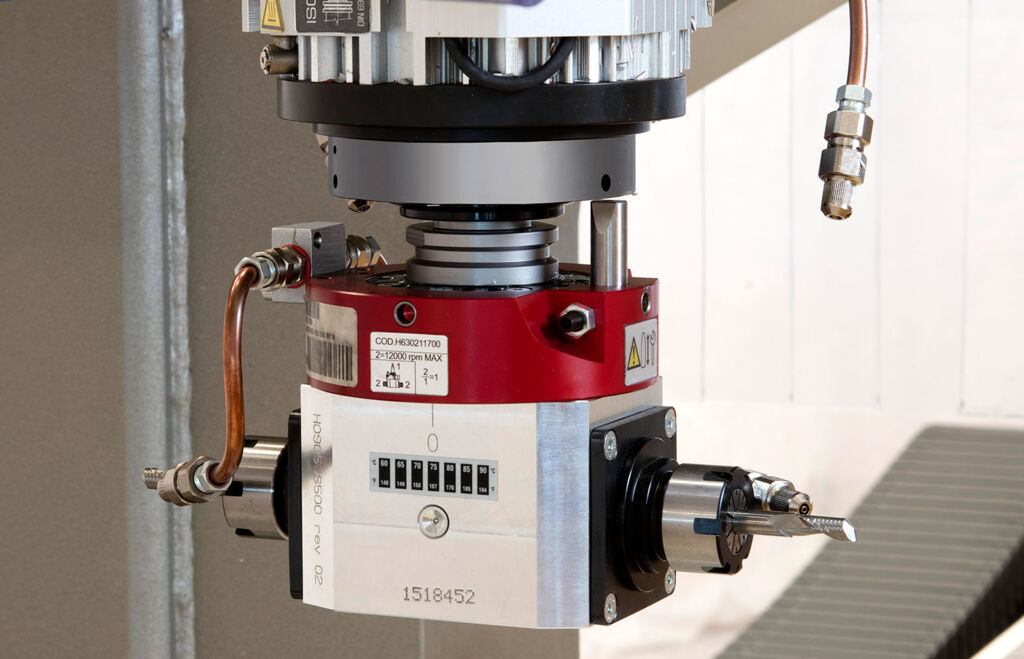

Using a disk cutter, it is possible to work on both sides at the end of the profile (end milling cycle).
Milling operations can be performed with linear and circular interpolation of the axes X-Y-Z.
The hinging length stop are pneumatically managed.

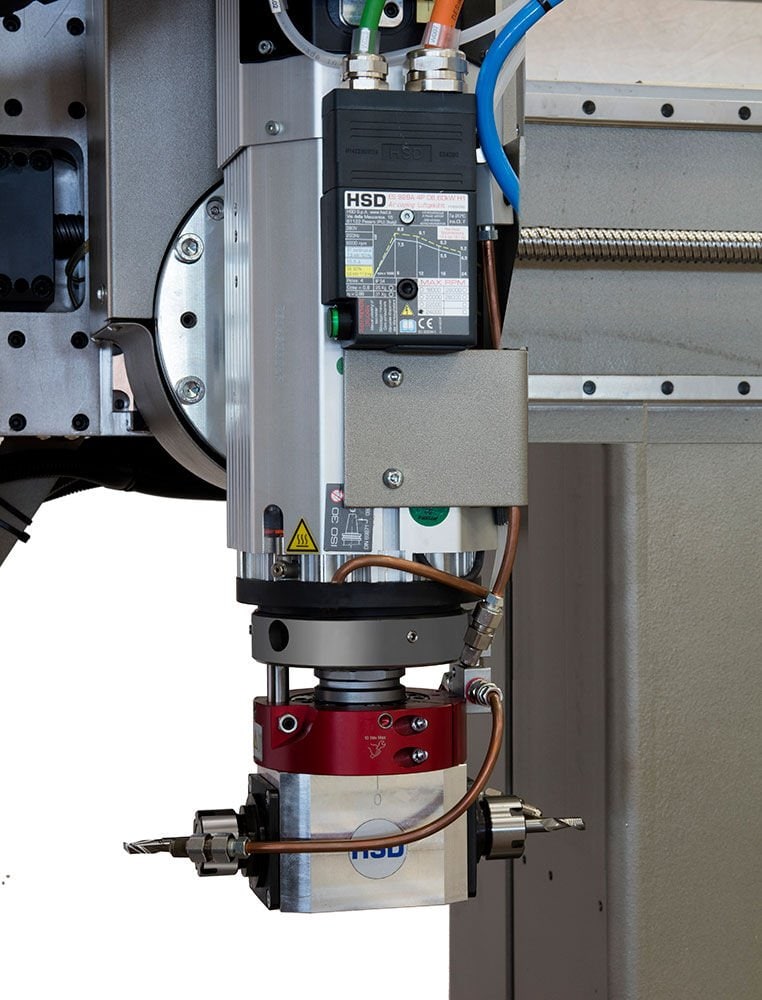

The electric spindle is suitable for quick tool holder change.

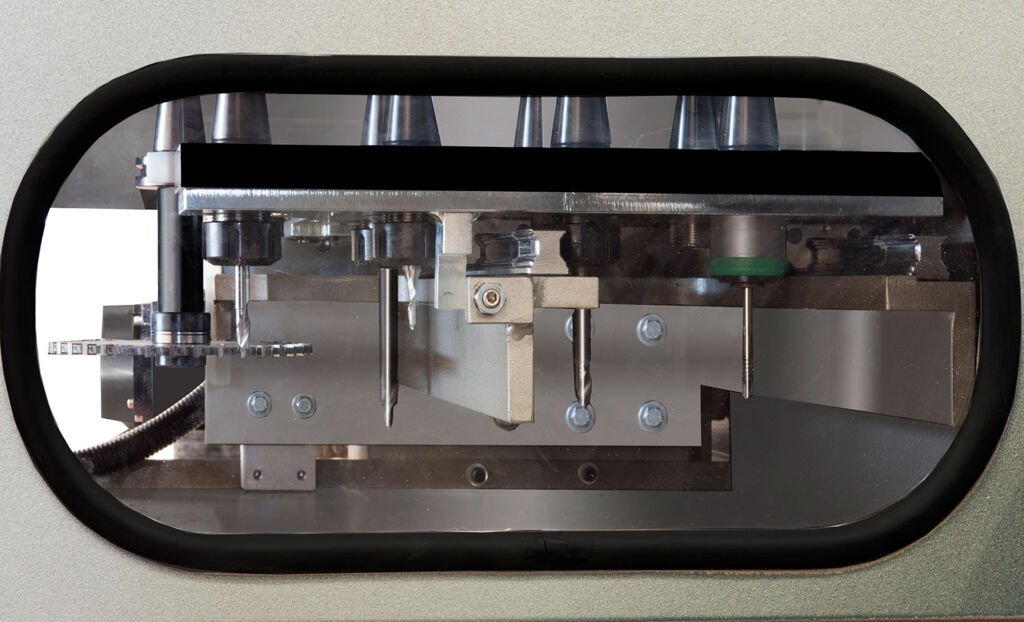

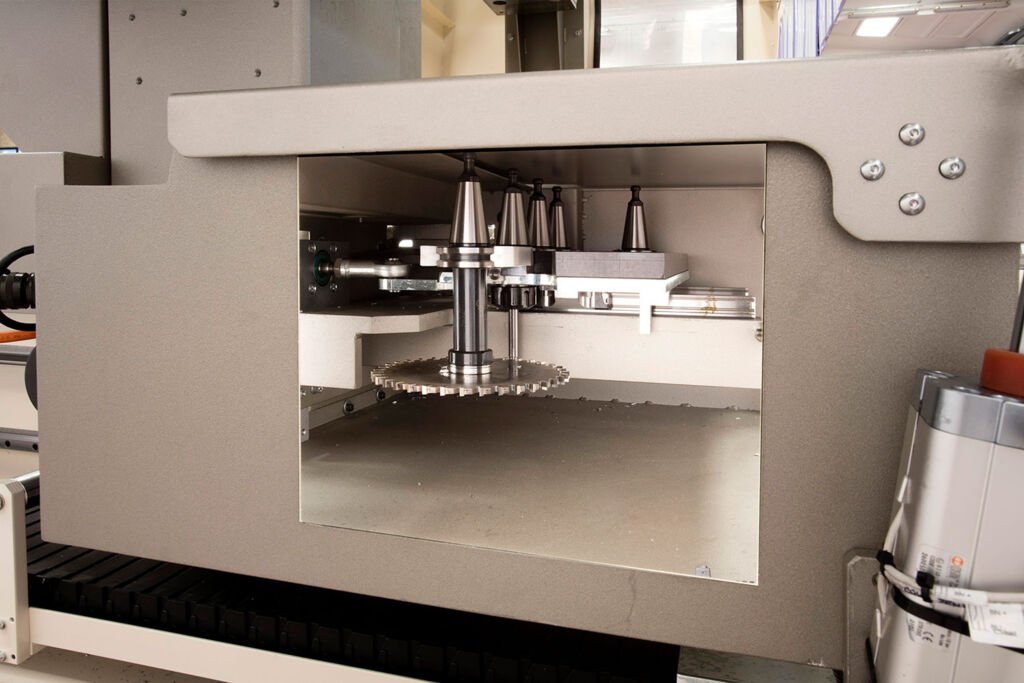

The tool magazine is mounted on the mobile upright. The tool change can be carried out into any position belonging to the working area.
The tools cooling is realized through a centralized minimal system.
All slide ways and ball recirculation screws are lubricated through an automatic centralized system.

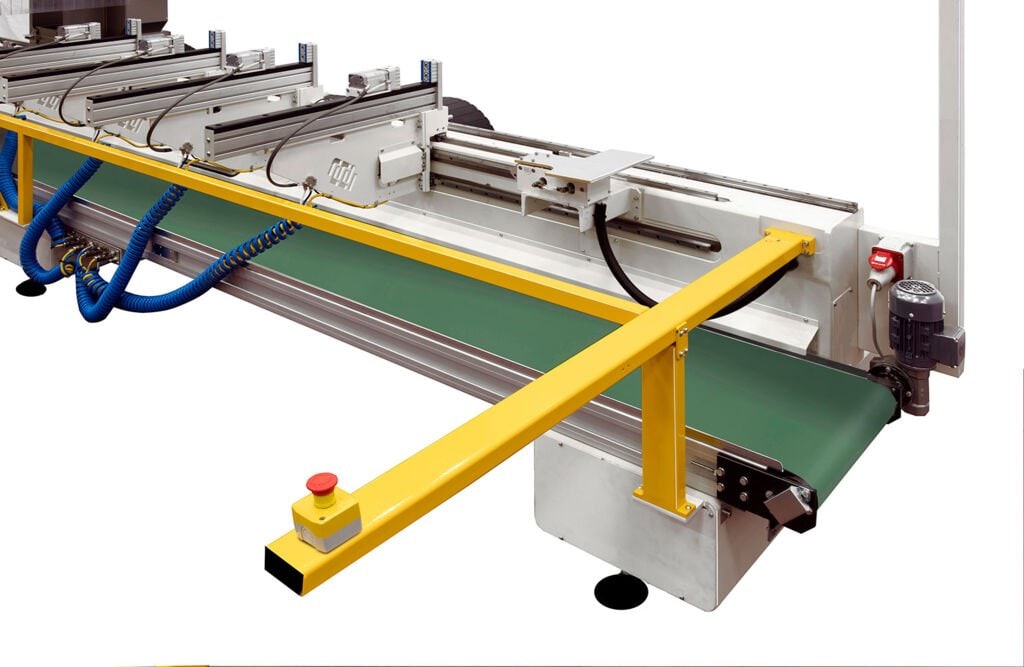

Pre arranged to use a set of chips collector bins.

Technical data

Media

Documentation

mc_304_atlas_4_mmi_EN Download
