sw 453 reverse garda 3

(512) 931-1962

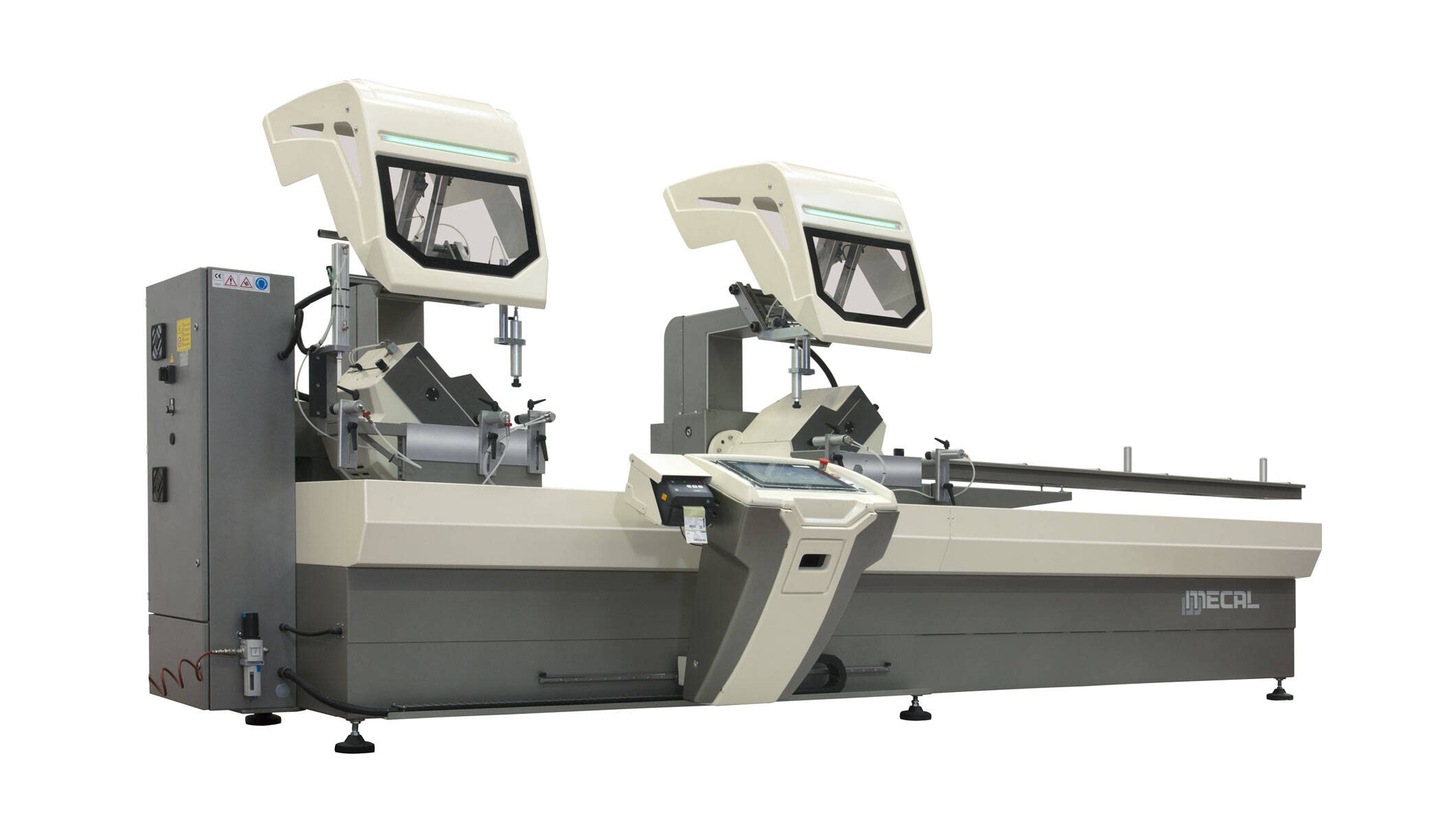

Aluminium Processing - Double Head Saw - sw 453 reverse garda 3

Double mitre saw with a fixed unit on the left and the other one movable.

  • Automatic positioning of the movable unit.
  • Electronic positioning of the cutting units on any angle within 22,5° and 135°.
  • Realized with cutting length of 4000 mm, 5000 mm, 6000 mm.
  • Equipped with industrial computer (HMI 15.0″ Touch Screen).
Advantages
  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
  • Frontal and radial blade feed with speed adjustments.
  • Hydro-pneumatic blade feed.
  • Wide cutting capacity by means of sawblades Ø 500 mm.
  • Dynamic protection guards for a total covering of the cutting area.
  • Mist spray lubrication tools (Venturi system).
Technical data
Contemporary useful cutting (90°) mm 4000/5000/6000
Cutting length (min. 90°) mm 400 / 320
Tilting range outwards deg 135<>22,5
Sawblade diameter mm 500
Diameter bore mm 30
Power kW 2,2 (x 2)



Media
Documentation
sw_453_series_EN Download
