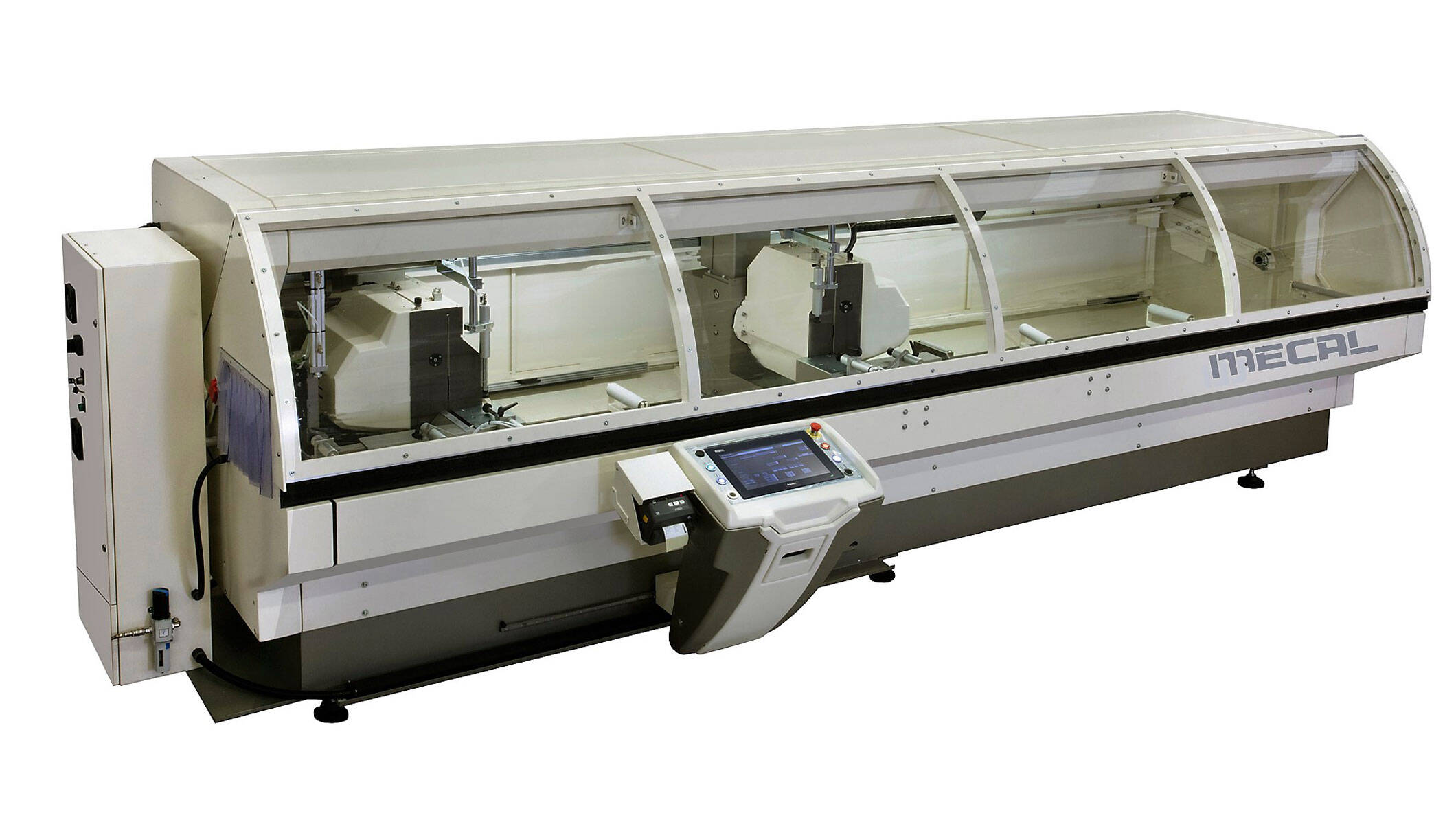

Aluminium Processing - Double Head Saw - sw 555 reverse garda 3

Double mitre saw with a fixed unit on the left and the other one movable, with blade diameter 550 mm.

  • Realized with integrated cabinet for the noise reduction and the elimination of any other risks.
  • Automatic positioning of the movable unit.
  • Electronic positioning of the cutting units on any angle within 22,5° and 135°.
  • Realized with cutting lenght of 5000 mm or 6000 mm.

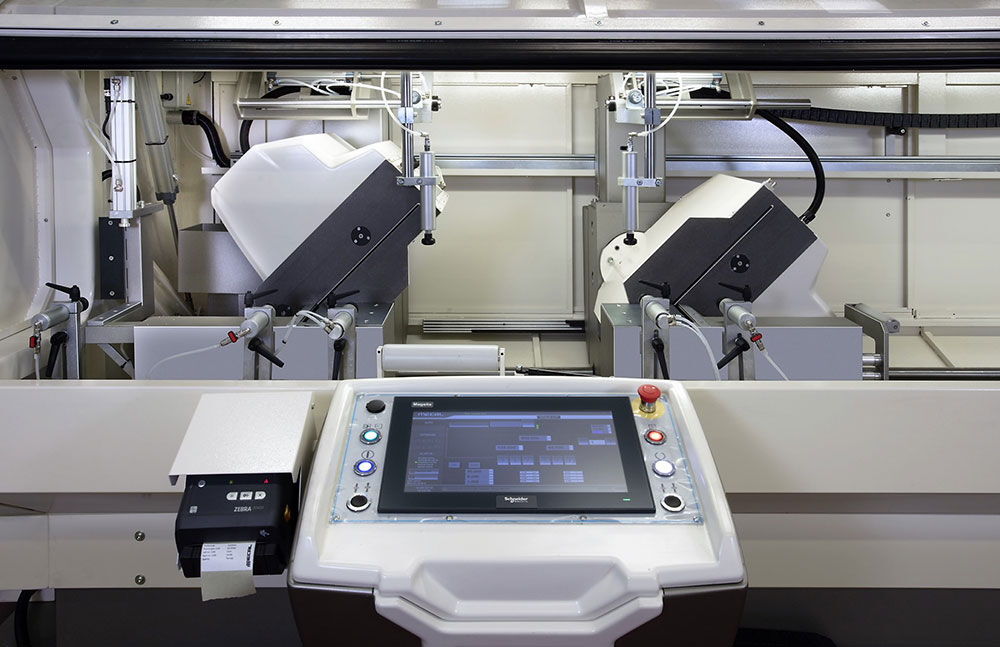

  • Equipped with industrial computer (HMI 15.0″ Touch Screen).
Advantages
  • Wide cutting capacity by means of sawblades dia. 550 mm.
  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
  • Frontal and straight blade feed with speed adjustments.
  • Hydro-pneumatic blade feed.
  • Dynamic protection guards for a total covering of the cutting area.
  • Mist spray lubrication tools (Venturi system).
  • Pre-arranged to connect an exhaust extractor for swarfs.
  • Pre-arranged to connect a motorised belt conveyor.
Media
Documentation
sw_553_series_EN Download
