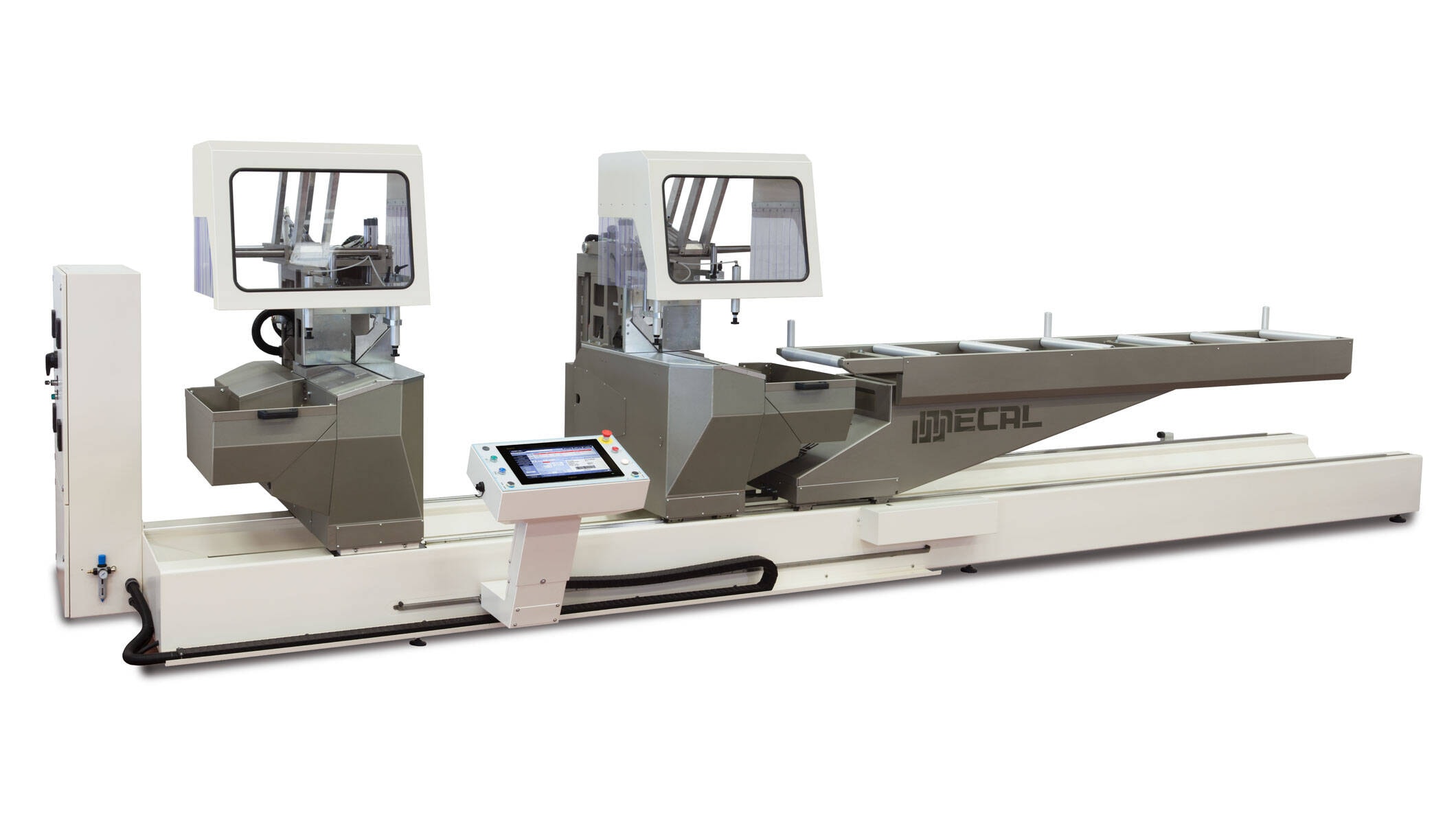

Aluminium Processing - Double Head Saw - tdc 622 dynacut

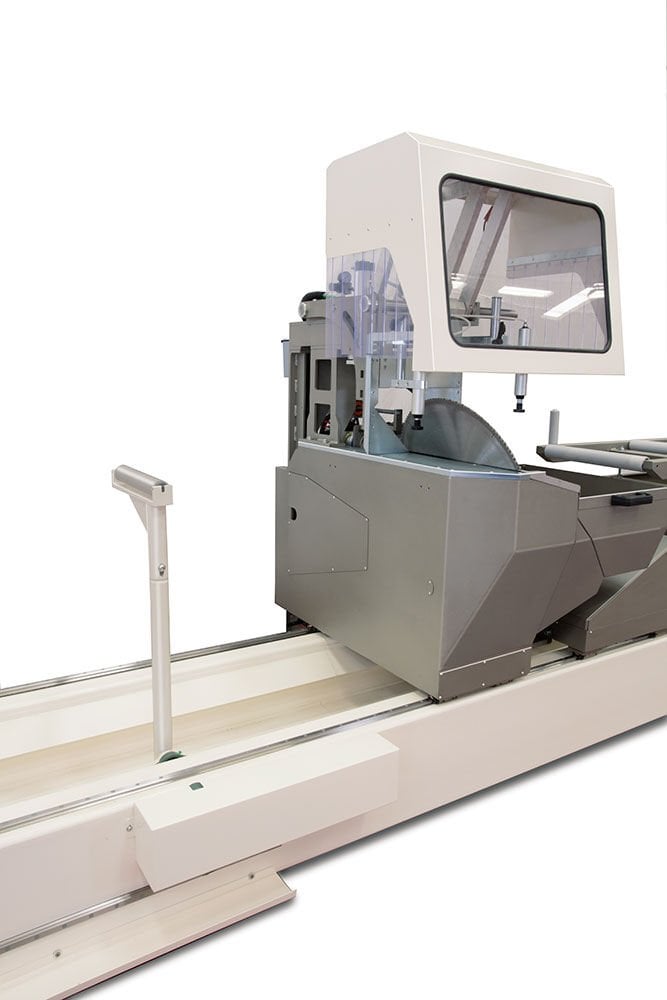

Double mitre saw with upward movement of the blades for radial cuts.

  • Fixed cutting unit on the left. Powered positioning of the mobile cutting unit.

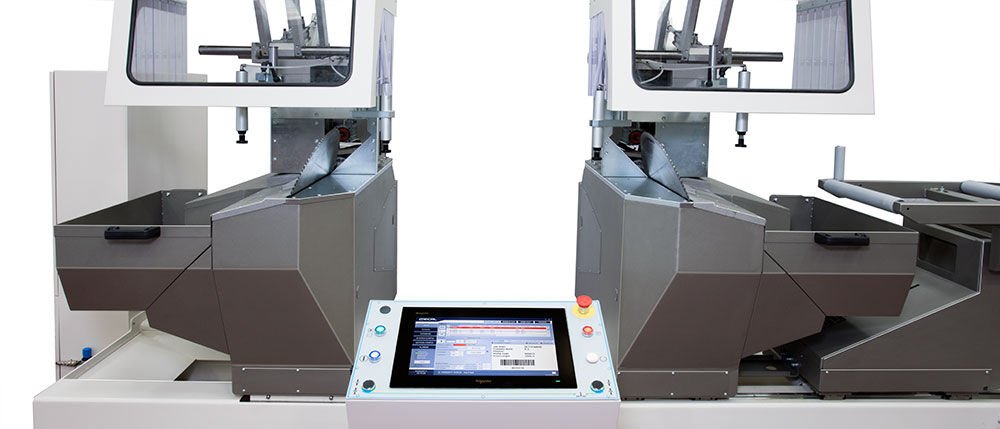

  • 3 Axis managed through CNC, driven by brushless servomotors.
  • Cutting table on fixed positions (90°). No change of rotation.
  • Inclination of the cutting groups, with motorized control, on any angle between 45° and 90°.
  • Standard cutting cycle with upward
Advantages
  • Wide cutting capacity with blades Ø 600 mm.
  • Tools lubrication with Minimal Quantity Lubrication system (MQL system).
  • Dynamic protection guards for a total covering of the cutting area.
  • The locking systems of the profile are mobile with automatic movements linked to the angular positions of the cutting bases.
  • Pre-arranged to connect a vacuum cleaner for swarfs and oily mist.
  • Hydro ‐ pneumatic blades feed.
Technical data
Useful cutting length (max 90°) mm 5000/6000
Useful cutting length (min 90°) mm 390
Blade diameter mm 600
