mc 319 aydo

(512) 931-1962

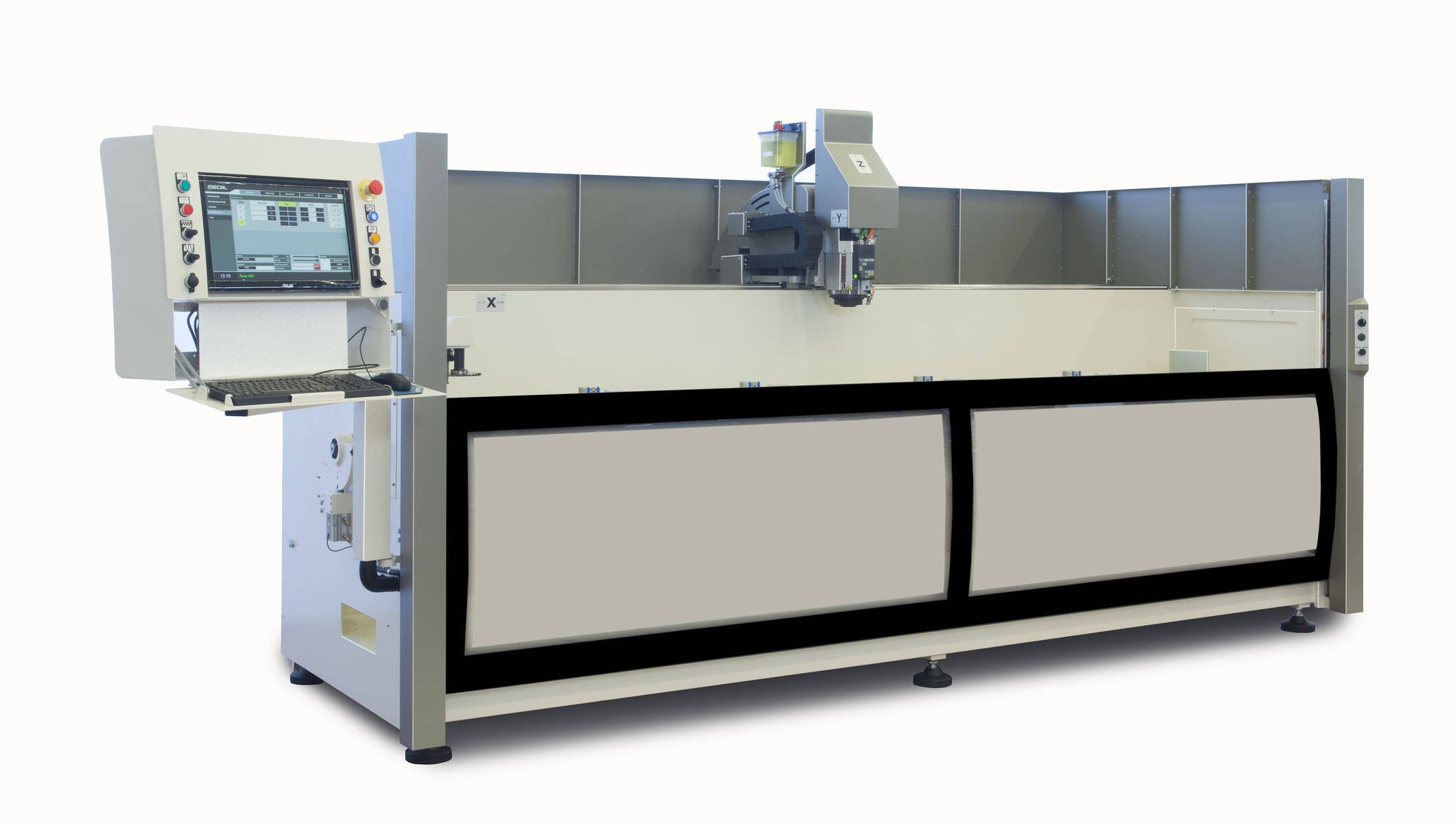

3 axis CNC+ 1 axis pneumatically managed floor-type vertical-spindle machining centre

3 axis (X, Y, Z) controlled by CNC + 1 axis pneumatically managed.
Suitable for machining aluminium and PVC profiles.

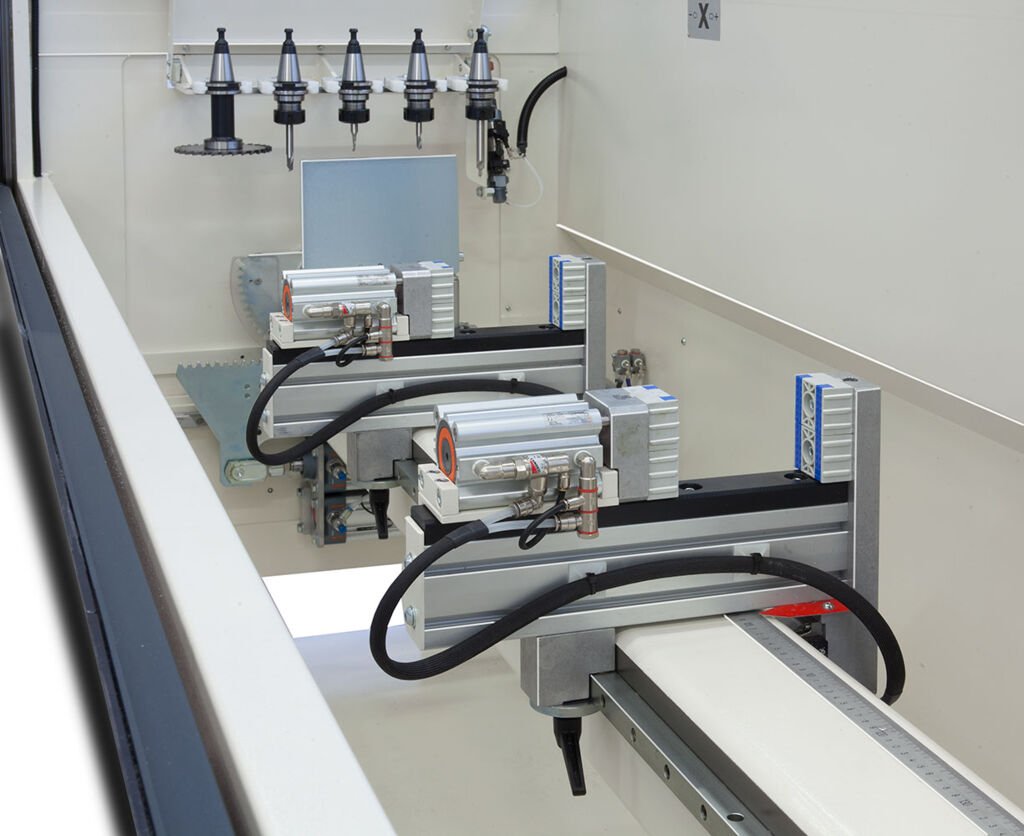

The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam; this beam has a ± 90 ° rotation range with pneumatic actuation.
Workable section: 200 x 170 mm (YxZ).

Advantages

Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
The locking clamps slide on precision guides, with manual positioning supported by a laser indicator managed by CN.

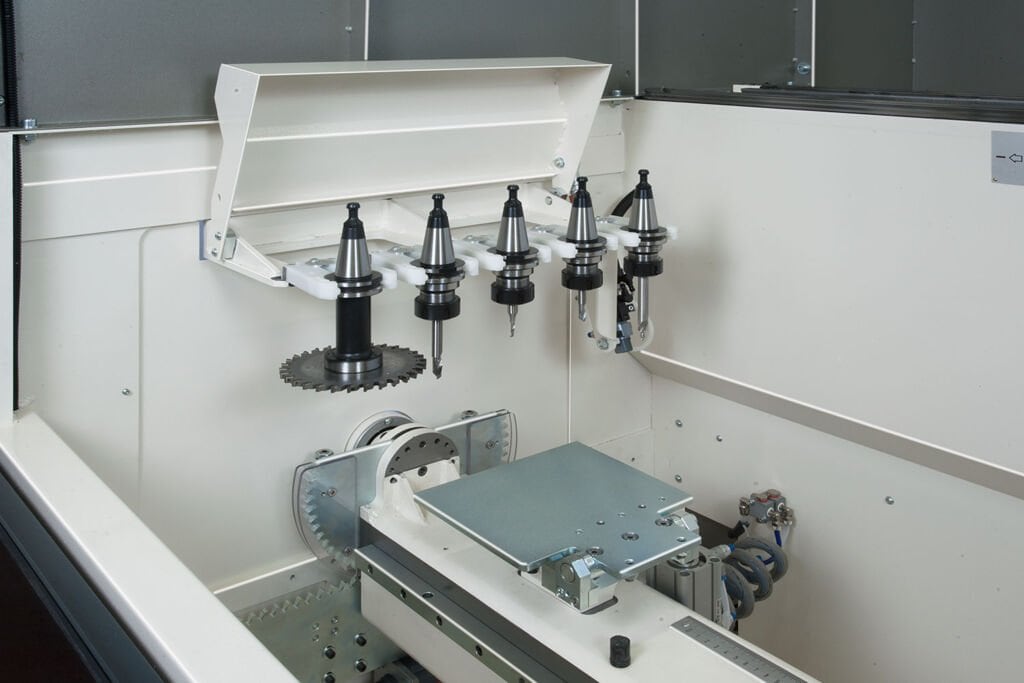

5-position tool magazine on the machine, with automatic tool change.
The tools cooling is provided by a centralized system with minimal volume.
The axis slide on precision linear guides and transmission through rack-pinion. The positioning is done by brushless motors with absolute encoder, managed by CN with a high-speed digital system.

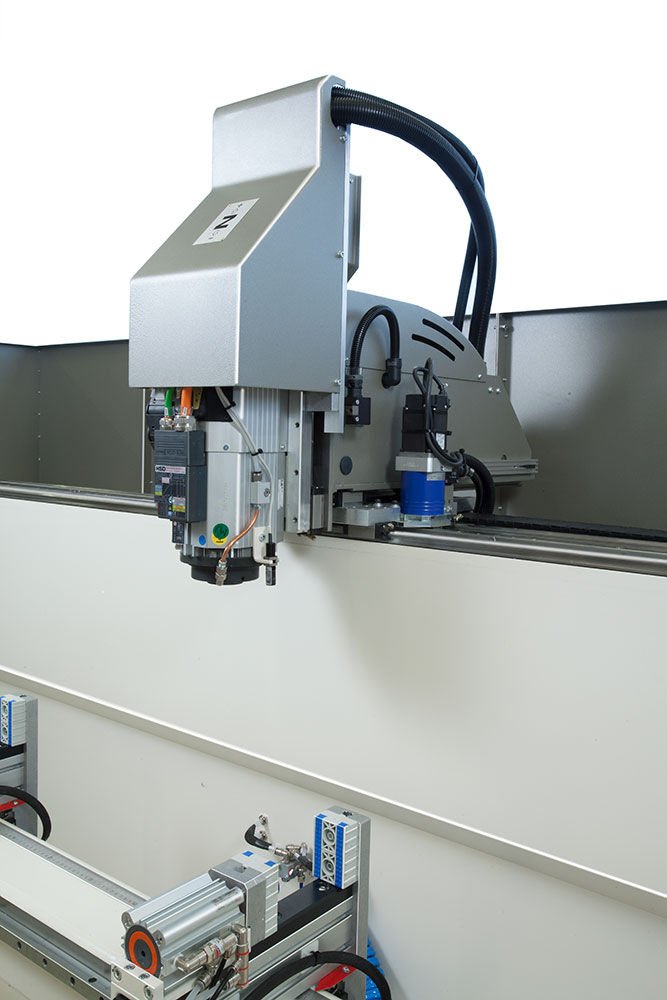

The air cooled spindle is arranged for the quick-change tooling.
With dedicated accessories can operate on 5 sides of profiles.
Milling machining with linear and circular interpolation can be performed on the X, Y and Z axes.
2 retractable reference stops (right and left) with pneumatic control.

Technical data

Media

Documentation

mc_319_aydo_EN Download
