tdc 622 edgemaster 5

Name: tdc 622 edgemaster 5
Brand: SCM

(512) 931-1962

tdc 622 edgemaster 5 Aluminium Processing

Request information

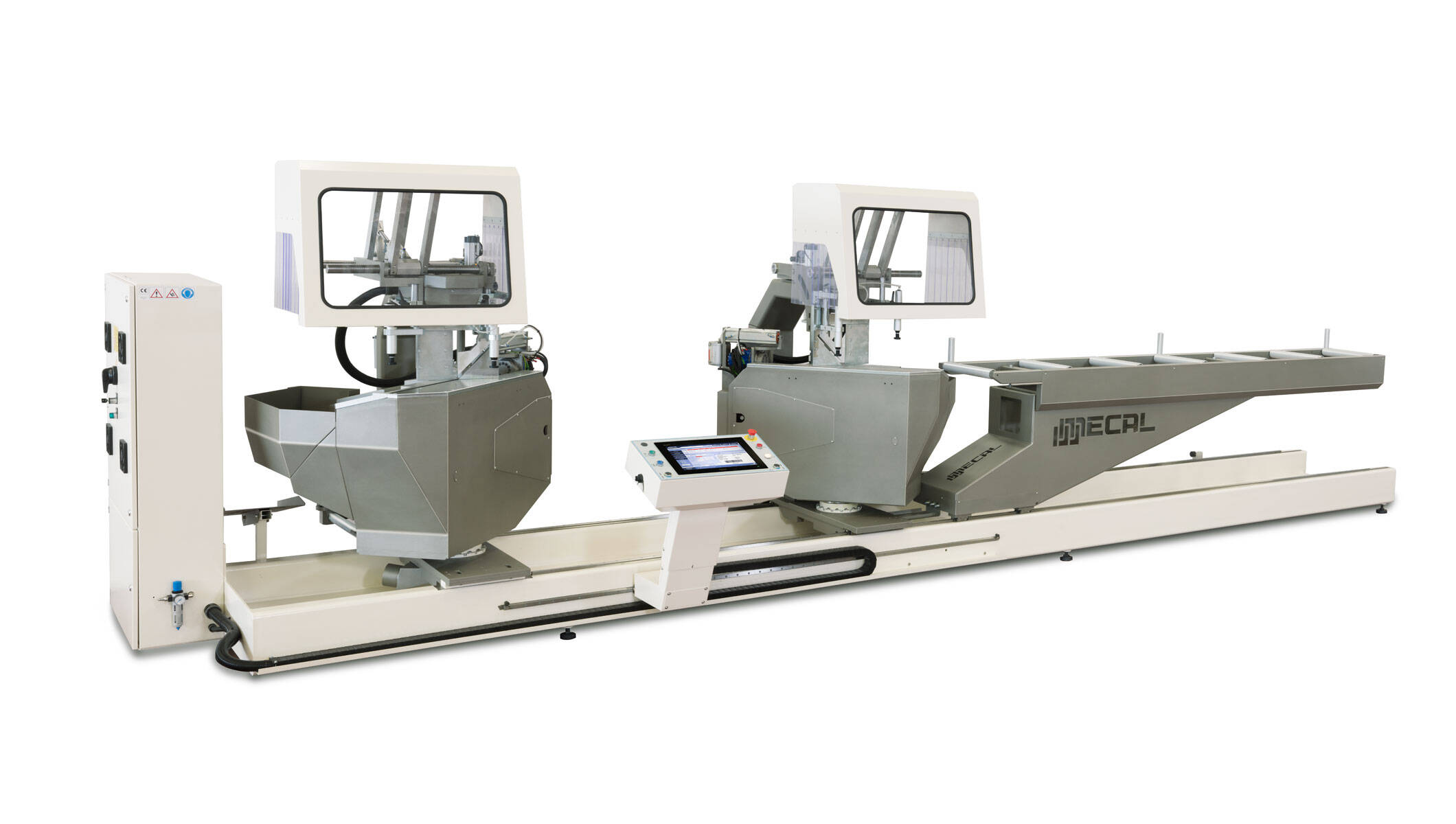

Double mitre saw with upward movement of the blades for the 3D compound cuts

Fixed cutting unit on the left. Powered positioning of the mobile cutting unit.
5 Axis managed through CNC, driven by brushless servomotors.
Automatic rotation of cutting tables toward the outside up to 22,5° and toward the inside up to 135°.
Automatic inclination of the cutting groups up to 45°.
Standard cutting cycle with upward tilting movement of the cutting units. Radial cutting cycle, with the translation of the cutting groups in the operator’s direction combined with the upward tilting movement of the cutting units.

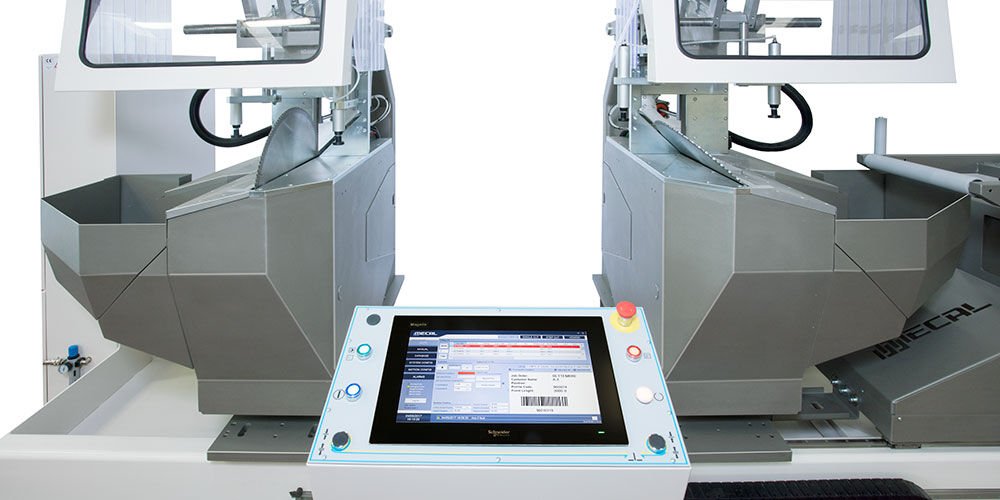

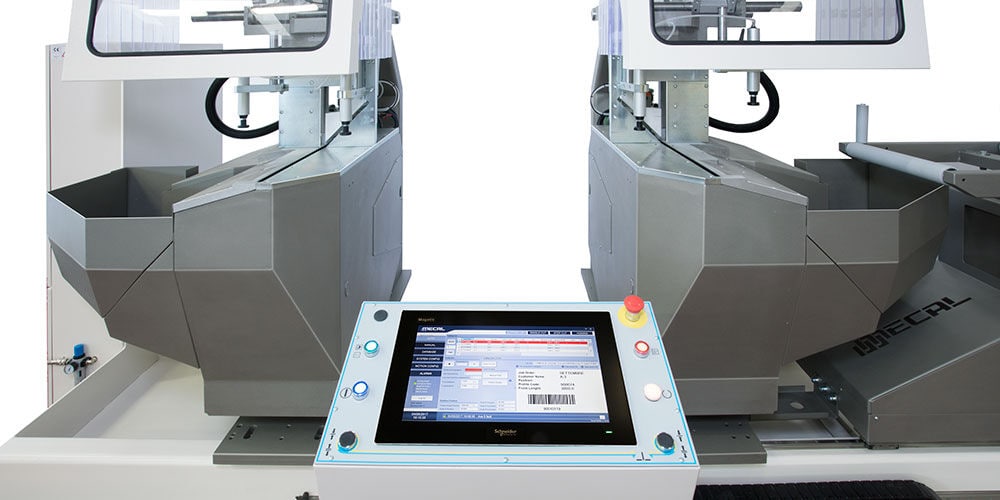

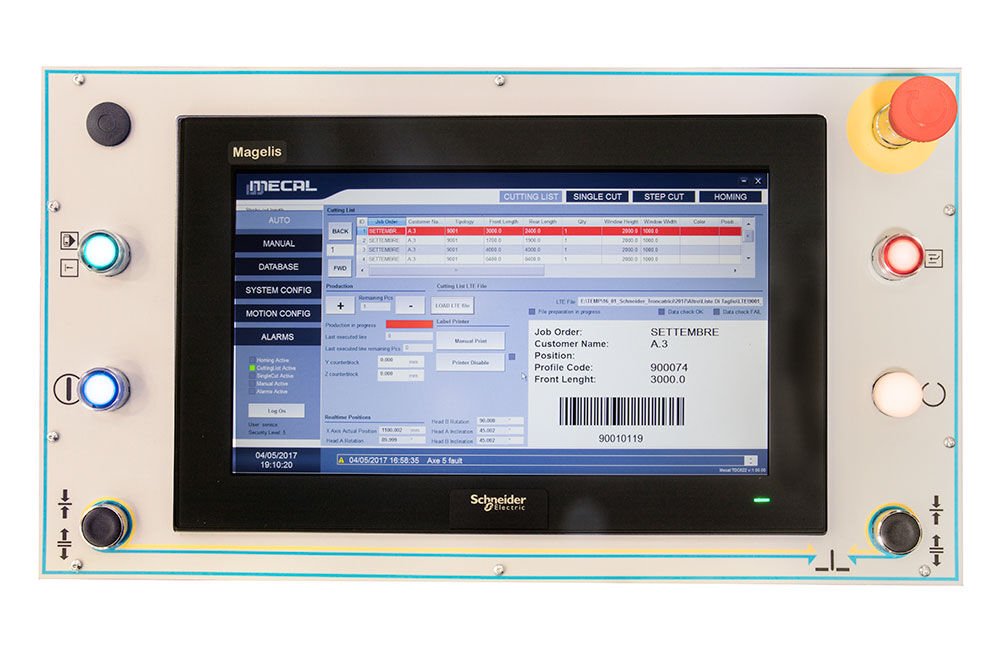

Control unit with touch screen 15″, Magelis iPC industrial computer.

Advantages

Wide cutting capacity with blades Ø 600 mm.
Tools lubrication with Minimal Quantity Lubrication system (MQL system).
Dynamic protection guards for a total covering of the cutting area.
The locking systems of the profile are mobile with automatic movements linked to the angular positions of the cutting bases.
Pre-arranged to connect a vacuum cleaner for swarfs and oily mist.
Hydro ‐ pneumatic blades feed.

Technical data

Media

Documentation

tdc_622_edgemaster_5_EN Download
