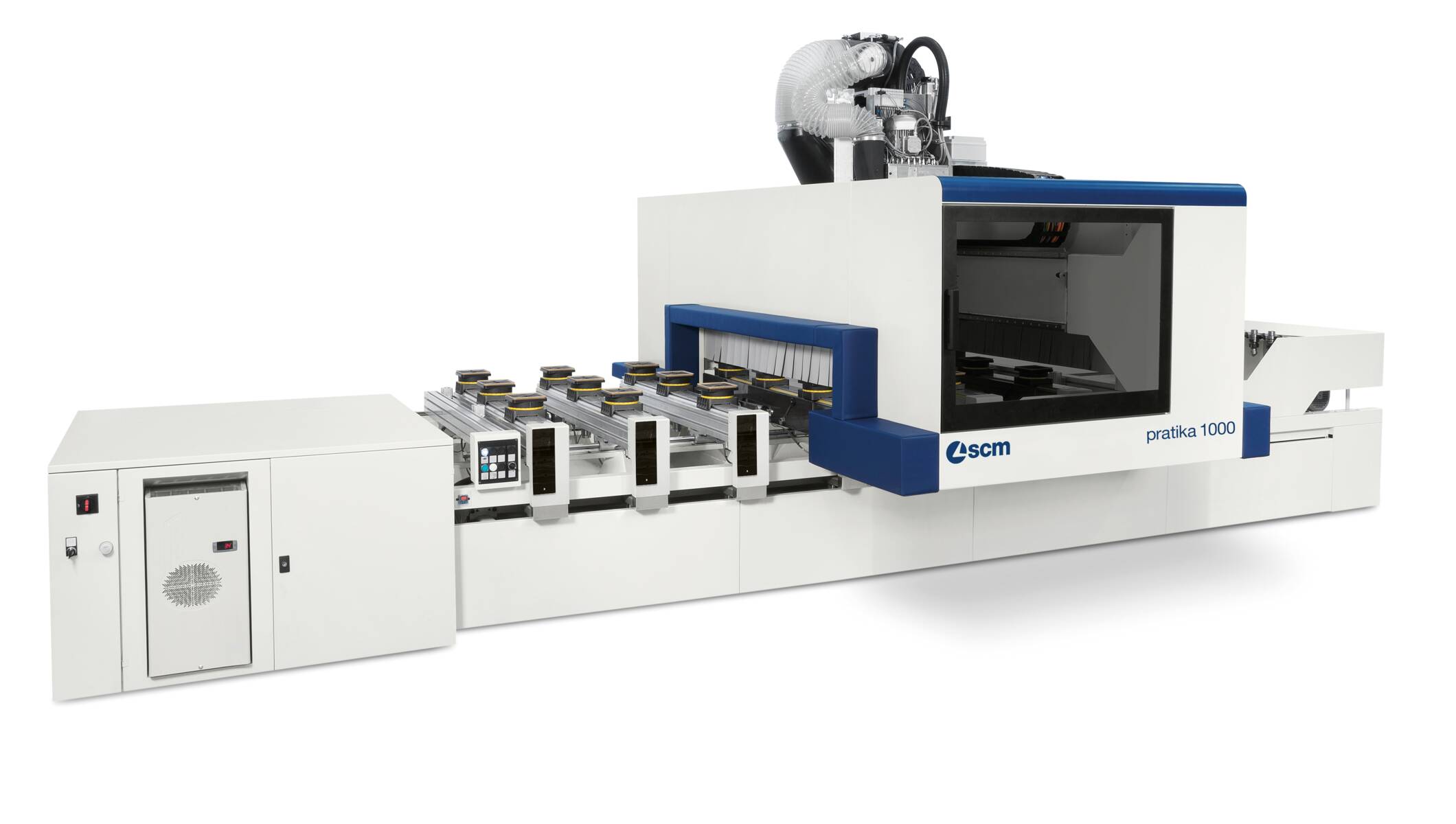

This highly modular machining centre provides answers to all the problems associated with woodworking.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.
FREEDOM AT 360°:
ALL FREEDOM
Optimizing the space within your factory thanks to the Pro-Space solution.

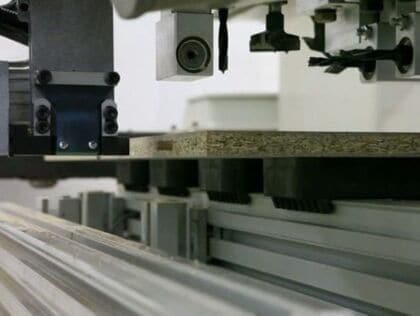

Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.
| m100 | m200 | ||||
| Working areas | |||||
| X-Y axes dimensions | mm | 3110x1320 3710x1320 5510x1320 3110x1620 3710x1620 5510x1620 |
3110x1620 3710x1620 5510x1620 |
||
| Axes | |||||
| Vectorial speed X-Y axes | m/min | 56 (ProSpace) 78 (ProSpeed) |
56 (ProSpace) 78 (ProSpeed) |
||
| Z axis panel passage | mm | 180 | 250 | ||

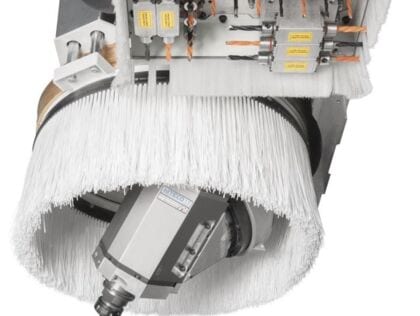

| Routing unit | |||||
| Motor power (max.) | kW (hp) | 15 (20,5) | 15 (20,5) | ||
| Rotation speed (max.) | rpm | 24000 | 24000 | ||
| Available tools on tool changer (max.) | places | 44 | 60 | ||
| Drilling unit | |||||
| Independent vertical spindles (max.) | n. | 21 | 21 | ||
| Independent horizontal spindles (max.) | n. | 12 | 12 | ||
| Rotation speed (max.) | rpm | 8000 | 8000 | ||
| Integrated blade in X, diameter | mm | 125 | 125 | ||
| 0-90° blade unit | |||||
| Motor power (max.) | kW (hp) | 2,2 (3) | 2,2 (3) | ||
| Rotation speed (max.) | rpm | 6000 | 6000 | ||
| Auxiliary routing unit | |||||
| Motor power (max.) | kW (hp) | 4,5 (6) | 4,5 (6) | ||
| Rotation speed (max.) | rpm | 18000 | 18000 | ||
