CONTIVERT ETC

(512) 931-1962

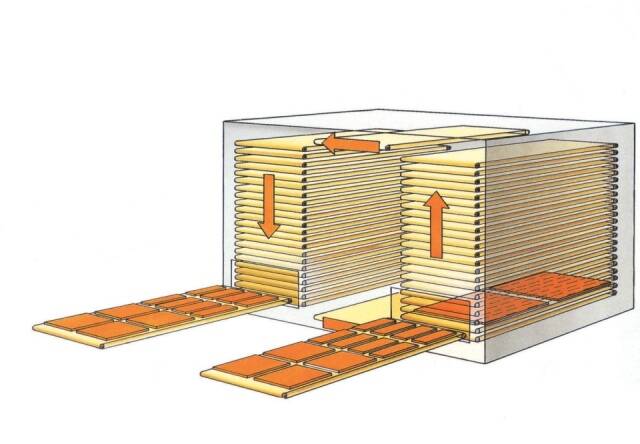

Vertical dryer with carpet trays used where it is necessary to guarantee a hot air drying with a long drying time in the dryer (from 15 minutes to a few hours), typically in automatic painting lines with spraying application systems and / or to curtain coaters.

Zalety

QUALITY: Drying parameters controlled.

ENERGY SAVING: Controlled ventilation system that allows a better manage of the air flow recirculation in order to optimize the recovery of the heat generated.

FAST: Thanks to the controlled ventilation, which reduces the required drying time compared to drying in the environment, ensuring optimal conditions of filtered air to minimize wastes. The dryer is generally divided into a drying zone, two temperature-controlled drying zones and one cooling zone.

SPACE SAVING: Possibility to obtain long drying times in reduced spaces, exploiting the accumulation of the pieces vertically, developing the dryer in height.

Dane techniczne

VERTICAL DRYER CONTIVERT MOD.	ETC 2/2	ETC 3/2	ETC 4/2	ETC 4/4
no. of chambers	2 tray chambers	2 tray chambers and  1 distance chamber	2 tray chambers and 2 distance chambers	4 tray ch
no. of  zones	4 ventilating   zones	4 ventilating zones	4 ventilating zones	4 ventilating   zones
no. of  trays	from 30 to 62	from 32 to 62	from  34 to 62	from 56 to 114
tray clearance  mm.	90-120-180	90-120-180	90-120-180	90-120-180
tray length  mm.	3500-5500-6500	3500-5500-6500	3500-5500-6500	3500-5500-6500
