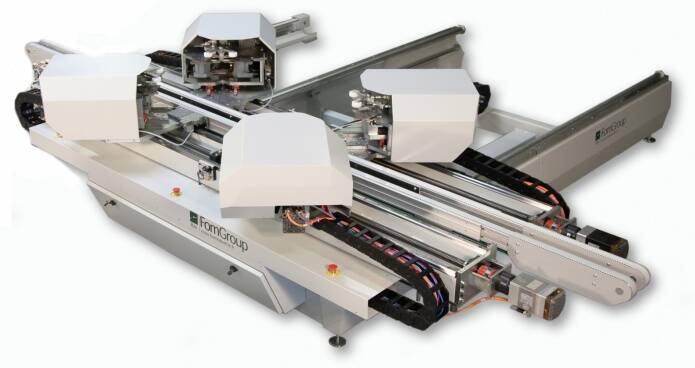

4-head crimping machine with CNC tool positioning
Technical specifications:
Tool positioning by means of electric motors
21 CNC axes
1 tool available on board
Suitable for all types of frame (windows, doors, curtain walls)
Adjustments and electronic controls by touch-screen panel
Perfect reproducibility
Panel dimension measuring system
Easy handling of frame by lifting bars and one only operator
Maximum frame dimension: 2600x1100 mm; 2600x2000 mm; 2600x2900 mm; 2600x3800 mm; 2600x4700 mm
Minimum frame dimension: 400x400 mm
Maximum height of crimping: 160 mm (highest on request)
