TM = Mobile Beam.
MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.

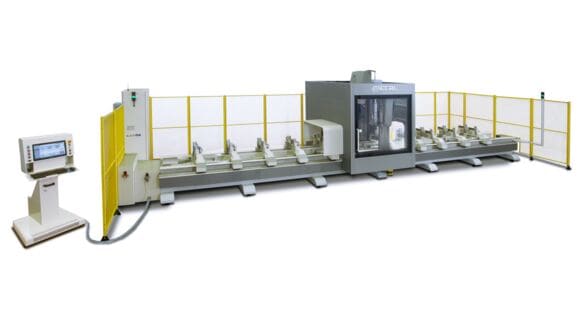

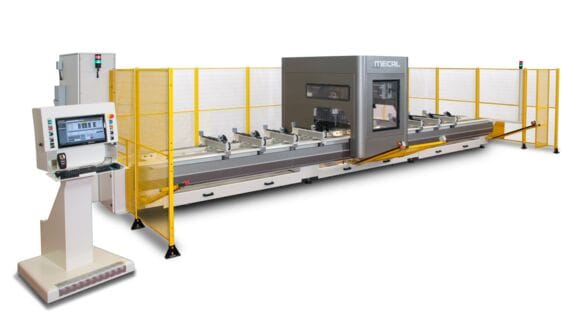

Suitable for the machining of aluminum extruded profiles for residential architecture, and even for light steel shaped profiles.
4 axis (X, Y, Z, A) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of aluminium, PVC and steel sections.
The workpieces are fixed with 4 pneumatic clamps, sliding on the rocking beam. The beam can be positioned at any angle within ± 125°.
It offers a high programming functional capacity by using a three-dimensional graphics software.
Electro-welded base designed to grant maximum rigidity and functional capacity of use.
The axis slide on precision profile guides with ball recirculation and are driven by motors operated with digital systems.
The vices slide on ball recirculation screws, and can be positioned manually by referring to a mm-scale and a laser pointer.
By using the disc cutter it is possible to carry out end-milling operations on both the ends of the work piece (end-milling cycle).
Milling operations can be performed with linear and circular interpolation of the axes X,Y,Z.
The 2 hinging length stops are foldaway and with pneumatic control.
The useful stroke for working bars is 4000 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (8000 mm).
The electric spindle is suitable for quick tool holder change.
Electrical power supply | 400 V – 50/60 Hz – 3 ~ + N + PE | ||
Total installed power | 8 kW (10,5 kW) | ||
Electrospindle | |||
Power | 6 kW | 8,5 kW | |
Max. speed | 18000 | 24000 | |
Tool-holder coupling | ISO 30 | HSK F63 | |
Cooling | Air | ||
Compressed air supply | 7 bar | ||
Air consumption | |||
Machine | 330 Nl/min | ||
Tool cooler (option) | 425 Nl/min (per unit) | ||
Noise emission (operator position) | |||
Equivalent continuous sound level (Leq) | 73,7 dB(A) | ||
Tool magazine | |||
Type | Linear (central) | Linear (right and/or left) [optional] | |
Aggregate/tool no. | 9 + 1 | 3 + 3 | |
Basic tool characteristics | |||
Tool holders (standard) | ER 25 | ||
Cylindrical cutter max. length | 150 mm | ||
Disk cutter max. diameter | 200 mm | ||
Total weight | 3200 kg | ||
Axis | Speed | Length | |
X | 80 m/min | 4225 mm | |
Y | 30 m/min | 530 mm | |
Z | 30 m/min | 410 mm | |
A | 50 °/s | ± 125° |
