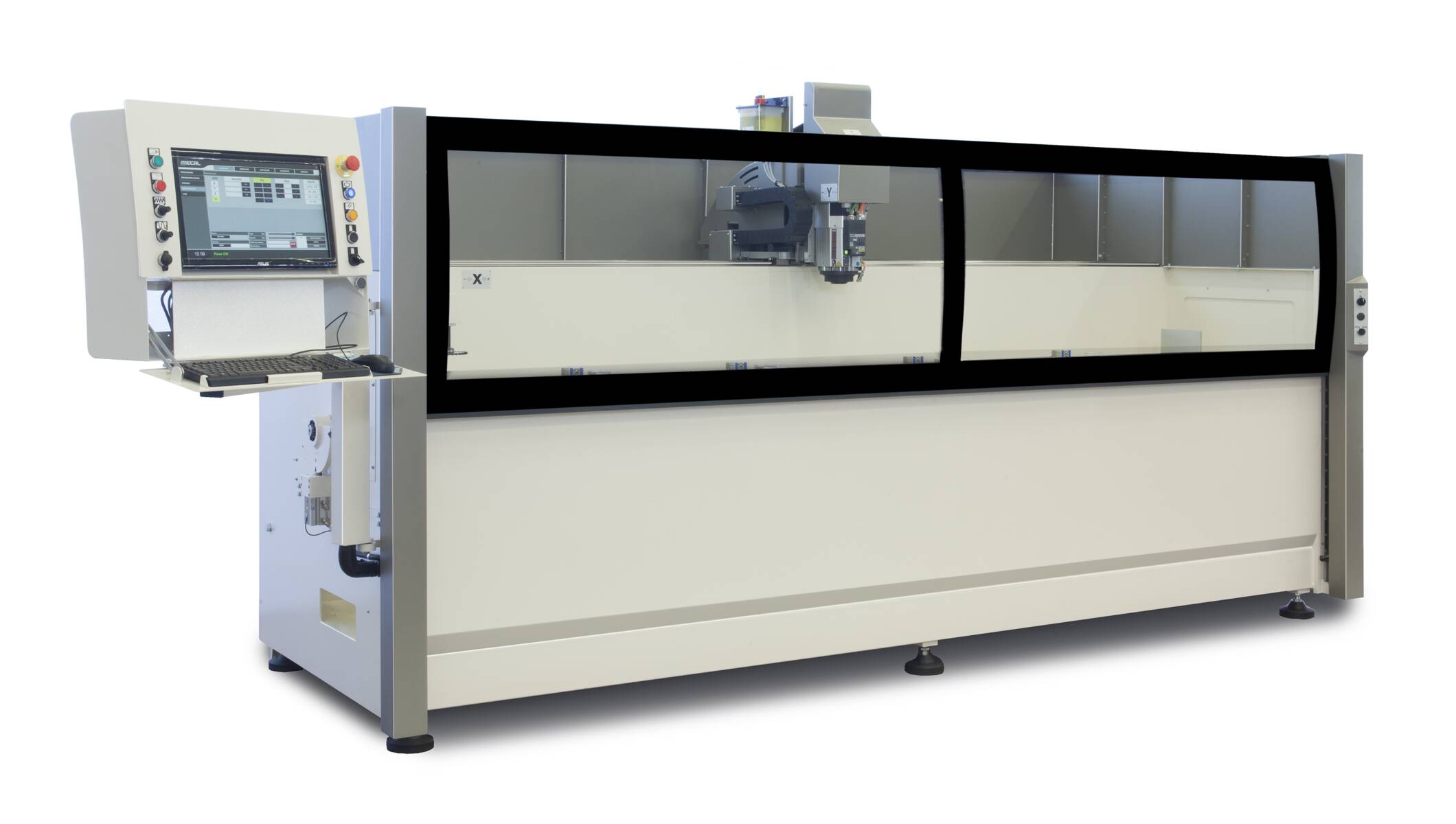

3 axis (X, Y, Z) controlled by CNC + 1 axis pneumatically managed.
Suitable for machining aluminium and PVC profiles.
The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam; this beam has a ± 90 ° rotation range with pneumatic actuation.
Workable section: 200 x 170 mm (YxZ).
Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
The locking clamps slide on precision guides, with manual positioning supported by a laser indicator managed by CN.
5-position tool magazine on the machine, with automatic tool change.
The tools cooling is provided by a centralized system with minimal volume.
The axis slide on precision linear guides and transmission through rack-pinion. The positioning is done by brushless motors with absolute encoder, managed by CN with a high-speed digital system.
The air cooled spindle is arranged for the quick-change tooling.
With dedicated accessories can operate on 5 sides of profiles.
Milling machining with linear and circular interpolation can be performed on the X, Y and Z axes.
2 retractable reference stops (right and left) with pneumatic control.
| Electrical power supply | 400 V – 50/60 Hz – 3 ~ + N + PE | |
| Total installed power | 5 kW | |
| Electrospindle | ||
| Power | 3,8 kW | |
| Max. speed | 20000 | |
| Tool-holder coupling | ISO 30 | |
| Cooling | Air | |
| Compressed air supply | 7 bar | |
| Air consumption | 330 Nl/min | |
| Noise emission (operator position) | ||
| Equivalent continuous sound level (Leq) | 73,7 dB(A) | |
| Tool magazine | ||
| Type | Fixed (left) | |
| Aggregate/tool no. | 5 | |
| Basic tool characteristics | ||
| Tool holders (standard) | ER 25 | |
| Cylindrical cutter max. length | 120 mm | |
| Disk cutter max. diameter | 125 mm | |
| Total weight | 1800 kg | |
| Axis | Speed | Length |
| X | 60 m/min | 3060 mm |
| Y | 30 m/min | 360 mm |
| Z | 30 m/min | 345 mm |
| A | - | ± 90° |
