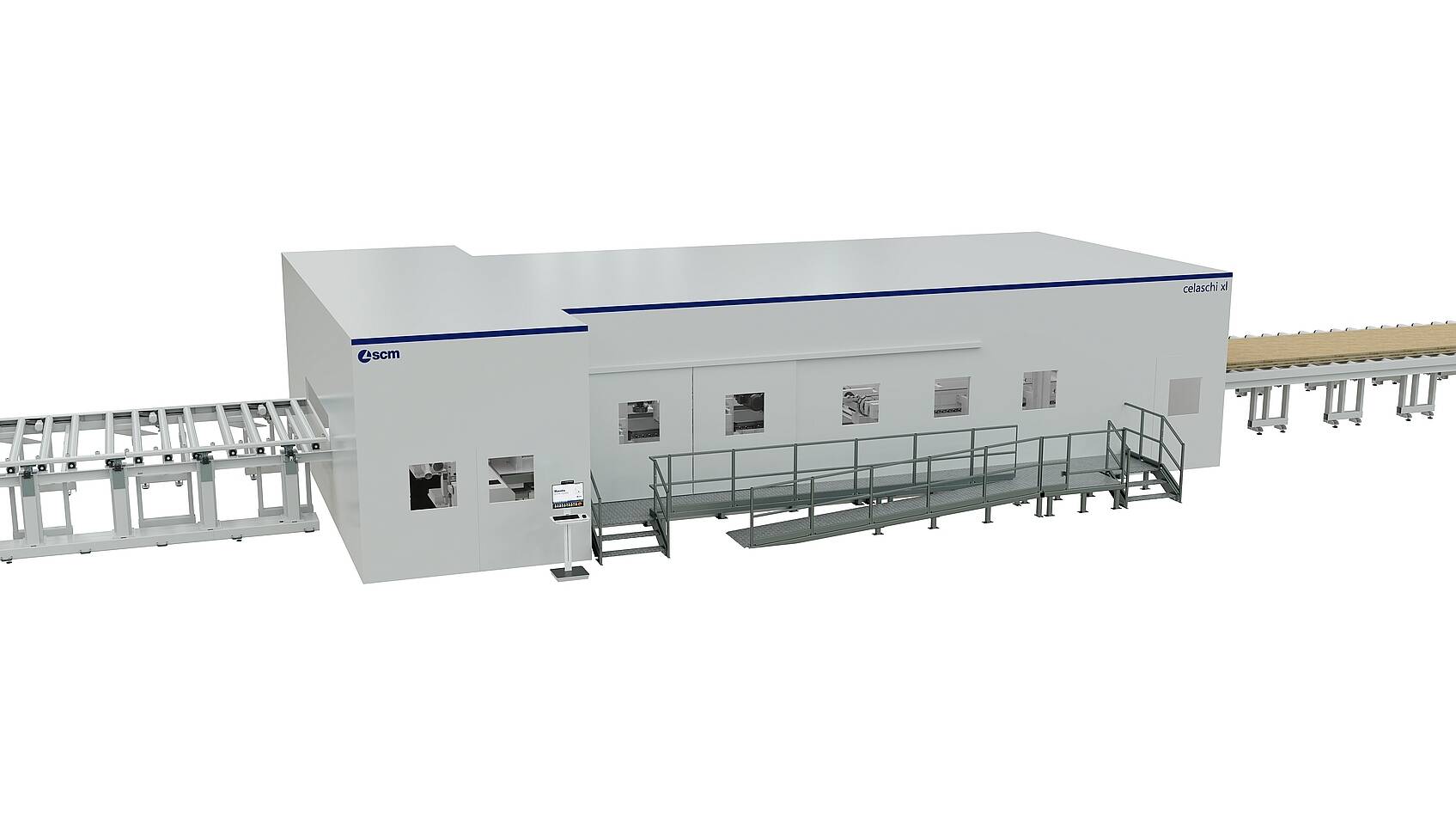

celaschi xl is the double-end profiling machine specifically designed for timber construction, combining structural strength with advanced technology, ensuring high performance even in the most challenging working conditions. It performs all the essential operations for preparing CLT walls, key to precise and fast on-site assembly.
Operations that are typically demanding for machining centers are now completed in a single pass, significantly increasing productivity and optimizing the production cycle.
PRECISION

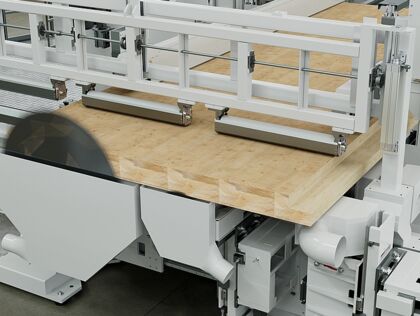

The machine's solid structure eliminates any vibrations during operation, ensuring a top-quality finish. The chain transport system guarantees stable and consistent movement of the workpiece, ensuring absolute precision.
POWER

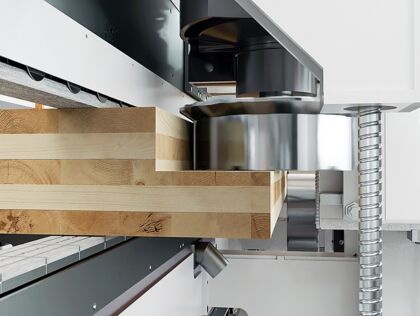

The four 44 kW electrospindles per side provide the necessary power to perform grooves and rebates in a single pass, even on large and high-density elements. An optional sawblade unit is available for cross-cutting panels with a thickness of up to 400 mm.
INTUITIVE HMI
The HMI Maestro active square software, integrated into the eye-M PRIME touchscreen console, provides the operator with complete and immediate control of the machine. The clear and intuitive interface simplifies operation management and drastically reduces learning times, ensuring maximum efficiency from the very first use.
| PROCESSED MATERIALS | CLT Panels Wood Wool Cement Boards (WWCB) |
|||
| WORKPIECE DIMENSIONS |
Length min-max. |
mm |
9000-18000 |
|
| MACHINING UNITS | Power | kW | 44 | |
| POSSIBLE OPERATIONS | Squaring, profiling (rebate), cross-cutting | |||
| PRODUCTIVITY |
From 3 to 8 panels/hour (depending on length and thickness) |
|||
