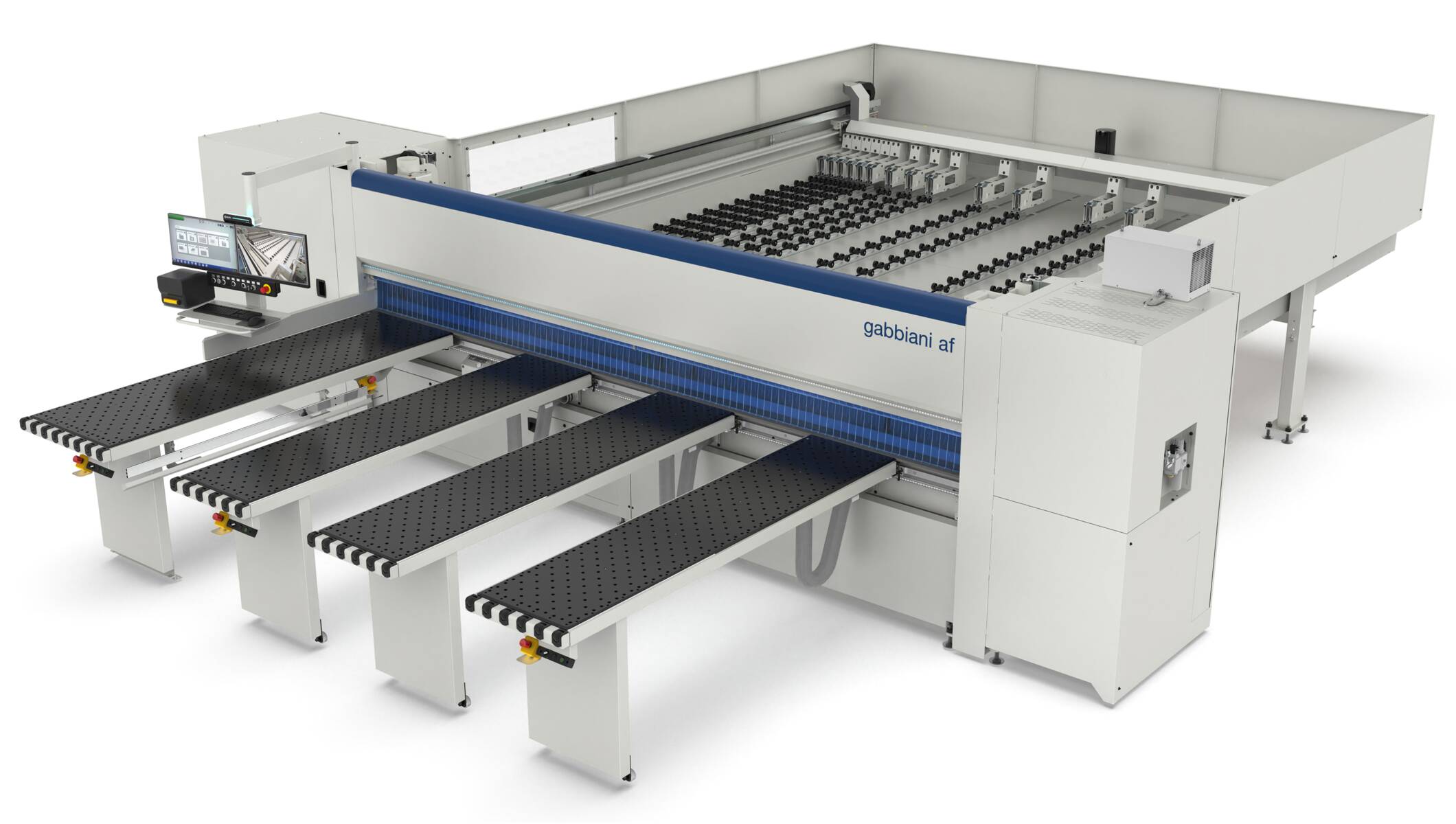

gabbiani af
(512) 931-1962
The new and innovative gabbiani af range, developed to offer customized solutions tailored to production needs, introduces several key innovations: unrivaled production times thanks to new work cycles, advanced motorization systems, operational units optimized to achieve reduced energy consumption while maintaining high-precision cutting results, simplified machine maintenance and maximum operator safety.
Advantages
-
INNOVATIVE: new blade carriage with controlled axis.
Maximum stability and precision with sliding on RDS guideway standard on all configurations. High-efficiency motors with reduced energy consumption. -
INTUITIVE: User guidance LED bar system.
Maximum safety with increased productivity. With clear and reliable visual feedback, operators always know what to do and when to do it, driving higher production compliance and a safer workplace. -
PRODUCTIVE: Updated Flexcut Unit for the execution of different cutting operations.
Maximum reduction in machining cycle times and productivity maximization due to the simultaneous processing of several bars with different cuts. -
CLEAN: Automatic machine cleaning device.
Maximum operational efficiency and direct impact on production continuity thanks to rear machine table cleaning system with centralized dust extraction.
Technical data
| gabbiani | af 115 | af 130 | |
| Cutting length | mm | 3200/3800/4500/5900 | |
| Blade projection | mm | 115 | 130 |
| Saw carriage variable speed | m/min | 0 - 180 | |
| Pusher variable speed | m/min | 90 | |
| Main blade motor power S6 - 40% | kW (opz.) | 11 | - |
| Motor power with inverter | kW (opz.) | (15) (18) (22) | 15 (18) (22) (27) |
| Scoring unit blade motor 50 Hz | kW | 2,2 | |
| Main blade 50 Hz | g/min | 3533 | |
| Scorer speed 50 Hz | g/min | 5395 | |
| Main blade diameter | mm | 420 | 450 |
| Scorer blade diameter | mm | 210 | |
| Number of clamps | std | 6 | |
