class si 400ep

(512) 931-1962

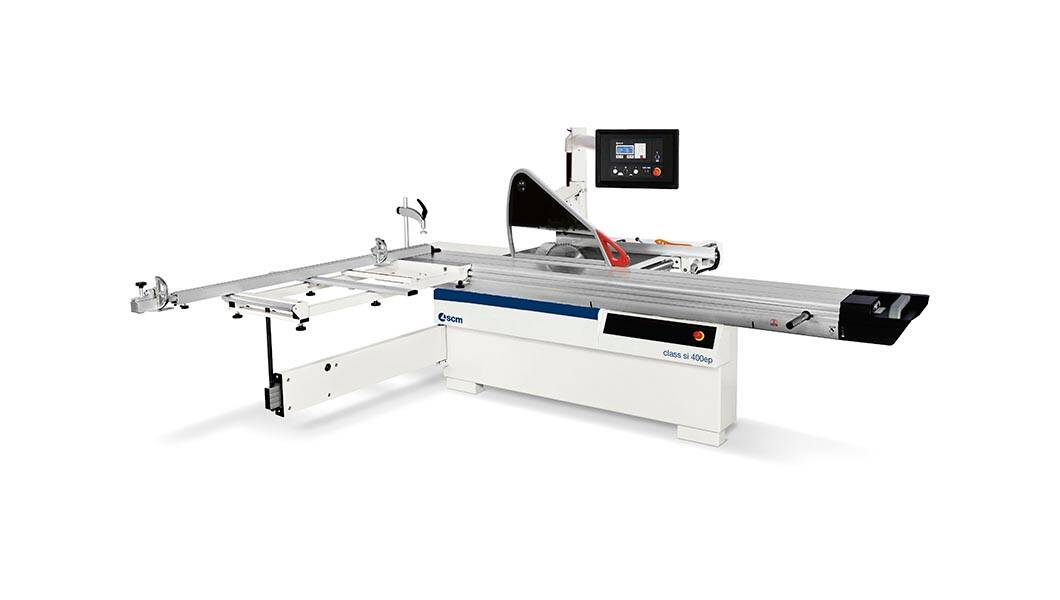

Joinery machines - Sliding table saws - class si 400ep

Superior technology combined with an ease of use.

Main functions:

  • Connectivity among machines belonging to the same company network and 4.0 Industry preset
  • Sharing of work programs and tools database
  • Activity monitoring and reporting on the use of the machine
  • Connectivity with SCM Thundercut (optimizer/sequencer App)
  • Self-diagnosis, tele-service and link to troubleshooting
Advantages

New suspended protection:

  • vertical sliding of the protection hood through “cage ball guide” (ricircolo di sfere)
  • wheels on protection hood to facilitate the overriding of the workpieces
  • improved suction capacity
  • cutting line laser projector

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).

"eye-S" console
The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 10” colour touchscreen display and the Maestro active user interface.

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.

Technical data
Class si 400ep
Max. saw blade diameter with mounted scorer mm / inches 400 / 16
Maximum saw blade projection from table to 90°/45° mm / inches 140/97 5.5/3.8
Cutting width on rip fence (Rip capacity) mm / inches 1270 / 50
Max. squaring stroke of sliding table saw mm / inches 3200 /126
Three-phase motor Hp 15
