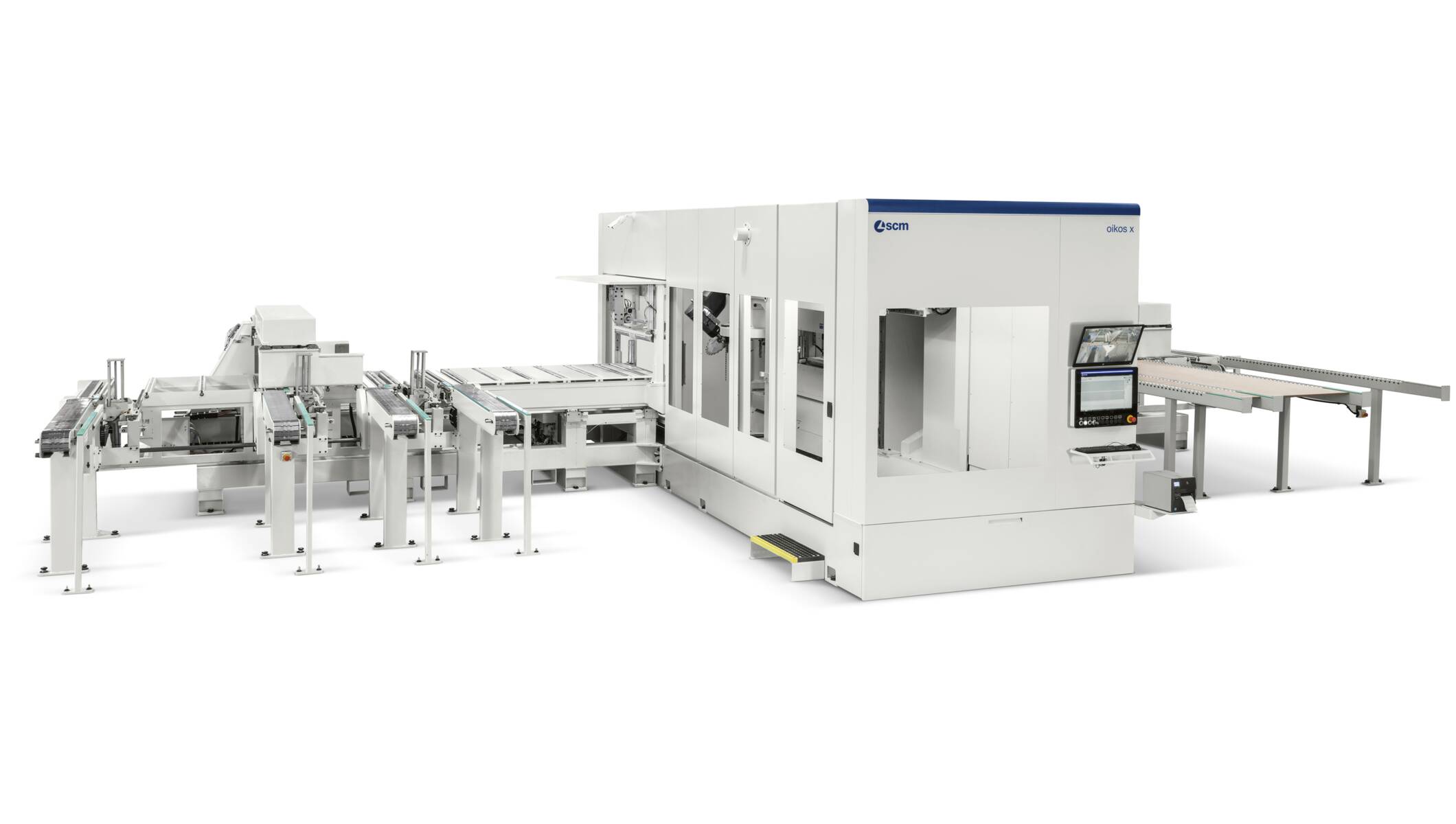

oikos x is the new CNC machining centre for the production of structural beams and X-lam/CLT wall panels up to 1250 mm wide. The innovative 6-axis operating unit allows any machining operation on all faces of the element in a single positioning and with no rotation required.
Synchronised movements and new strategies make it possible to achieve high machining speeds and perfect quality of the finished product.
TECHNOLOGY WITHOUT LIMITS

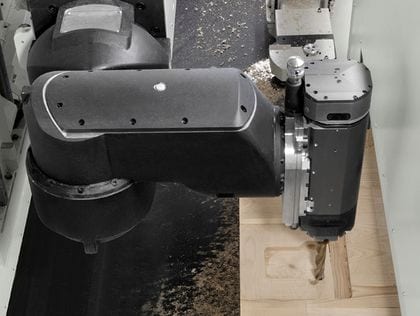

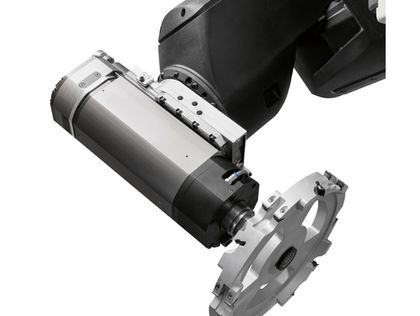

The new 6-axis symmetrical operating unit has been designed to perform all the machining operations necessary for the production of structural beams, wall panels and insulating panels with maximum speed and top quality. Its perfect symmetry allows processing both ends of each element in minimum overhang conditions.

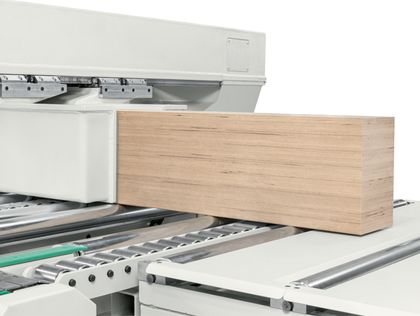

The sturdy structure of the machining centre ensures the optimal absorption of the stresses deriving from the element processing, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the machine stability and performance.
Cutting-edge technical solutions also for the containment of dust and for the management of machining waste. The presence of casings with automatic closing, combined with the efficiency of the removal system, allows physically separating the work area from the external environment, eliminating machine downtime due to the rehabilitation of the work environment.
EASY TO USE
Maestro beam&wall is the software designed and developed by SCM making the machine programming and use simple and intuitive, compatible with the most common CAD design programs used in the sector. The software also features a nesting function for the optimized production of wall panels and a high performance 3D simulator.
|Workpiece length with automatic loading max.||9,000 - 13,500 - 19,000 mm|
|Cross-section for machining on 6 sides max.||1,250 x 300 mm|
|Workpiece weight max. with manual loading||4,000 kg|
|Workpiece weight max. with automatic loading||2,500 kg|
|Electrospindle power||13 kW - 24 kW|
|Tool store||18 positions|
|Sawblade diameter||up to 600 mm|
