startech cn v is the new CNC drilling machine with fixed work table and mobile workpiece.
FLEXIBLE: IDEAL SOLUTION FOR TAILORED PRODUCTIONS

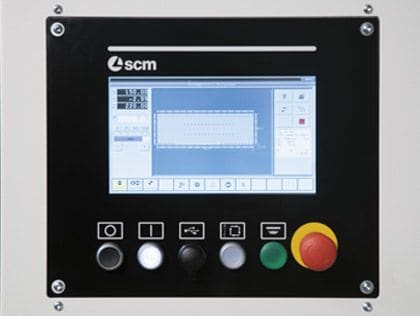

Automatic machine with simple and intuitive interface for a fast programming
PERFORMING: TOP PERFORMANCE
Tooling and machining operations reduced to the minimum, with 20 m/min axes speed.
COMPACT: VERY REDUCED MACHINE OVERALL DIMENSIONS
With its 5,5 m2 overall dimensions, it does not require wide spaces.
UNMISSABLE: AT EVERYBODY'S REACH
For every investment capability with unbeatable price/performance ratio
Effective: The operating head above the panel allows a very precise processing and an reference always certain.

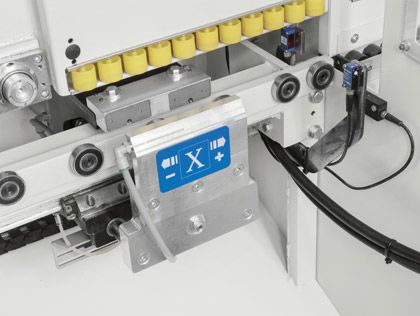

Precise: work piece stability and high working quality guaranteed by the mobile clamp with floating opening.

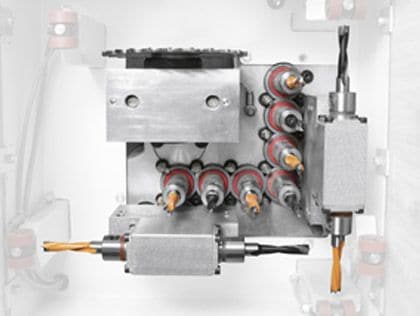

Versatile: Thanks to the 7 independent vertical spindles, the 4 horizontal spindles (1 +1 X and 1 + 1 Y) and the blade in X, elements of finished furniture can be produced without having to reposition the bits and with no operator’s intervention for the work table set up and machine when varying dimensions and panels.
|Max. panel dimensions X-Y-Z||mm||3000 x 900 x 50|
|Min. panel dimensions X-Y-Z||mm||300 x 90 x 10|
|Max speed X-Y axes||20|
|Spindles (X axis)||n.||2 (1+1)|
|Spindles (Y axis)||n.||2 (1+1)|
|Spindles (Z axis)||n.||7 (4X-4Y di cui uno in comune)|
|Lama integrata fissa, con taglio in direzione||X|
|Spindles rotating speed||giri/min||4460|
|Blade rotation speed||giri/min||5700|
