morbidelli p200

(512) 931-1962
CNC Machining Centres - CNC Machining Centres for drilling, routing and edgebanding - morbidelli p200

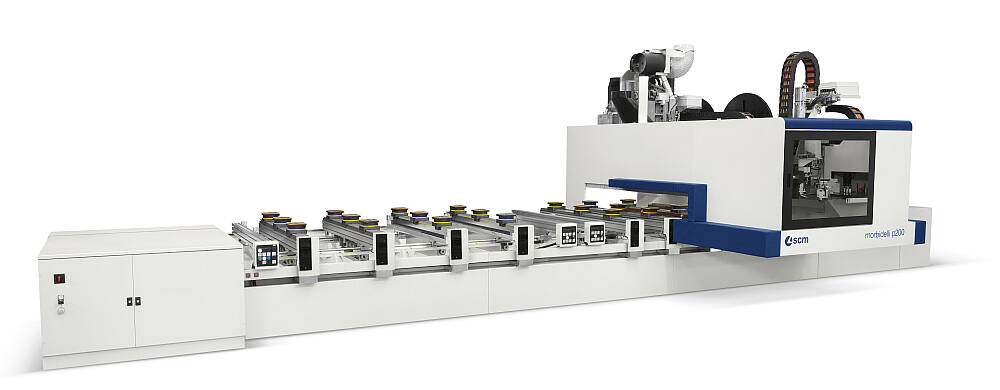

Universal machining centre designed to satisfy any drilling, routing and edgebanding requirement. Just few clicks to design and manufacture pieces of any shape and to easily apply several typologies of edge. Unique on the market in having an unrivalled price-performance ratio, and “HE-PODs” that add the third dimension to the worktable.

Advantages

FREEDOM AT 360°:
ALL FREEDOM

Optimizing the space within your factory thanks to the Pro-Space solution. Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.

SUPERIOR QUALITY:
ALL TOP QUALITY

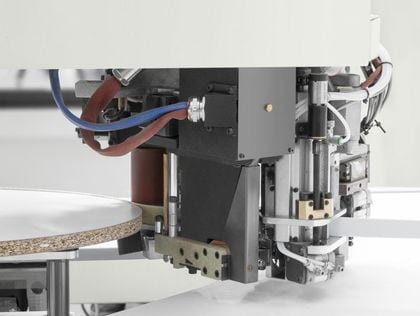

Unmatched finishing in its category thanks to edgebanding unit which can process edges up to 80 mm thick, to the JQX (Just Quality eXtreme) 5-axis direct-driven spindle head which ensures the total absence of vibrations and to the high-performance drilling heads with RO.AX (Rotoaxial spindle technology) spindles and rotation speed up to 8000 rpm.

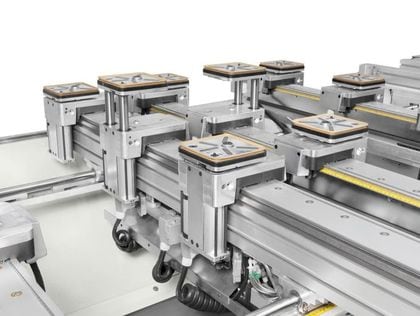

3D WORKTABLE :
“HE-PODs”

Unique on the market, it can lift work pieces in order to get a best use to the worktable dimensions and to machine multiple parts with a single positioning. Fully automatic work cycles, less tool changes, better optimisation of tool paths, essential to increase the productivity.

Technical data
Working areas
X-Y axes dimensions mm 3110x1620
3710x1620
5510x1620
Axes
Z axis panel passage m/min 180
Vectorial speed X-Y axes mm 56 (ProSpace)
78 (ProSpeed)
Routing unit
Motor power (max.) kW (hp) 15 (20,5)
Rotation speed (max.) rpm 24000
Available tools on tool changer (max.) places 60
Drilling unit
Independent vertical spindles (max.) n. 21
Independent horizontal spindles (max.) n. 12
Rotation speed (max.) rpm 8000
Integrated blade in X, diameter mm 125
Edgebanding unit
Edge height mm from 16 to 85
Edge thickness  mm from 0,4 to 3
Software
Case History
nuCamp
Read more
Giessegi's philosophy is leading the way in “made in Italy” furniture
Read more
Media

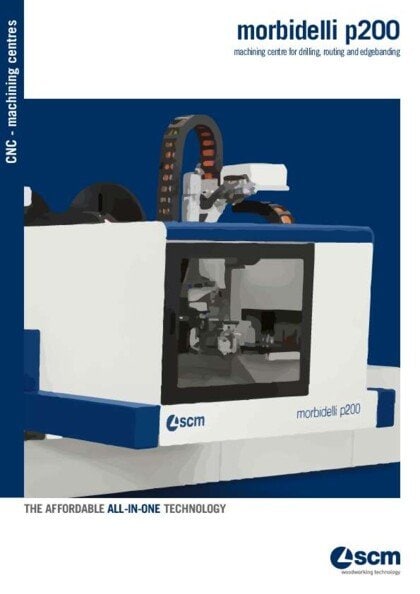

Documentation
