Compactness and simplicity of construction for a high performance multiblade.
Advantages
-

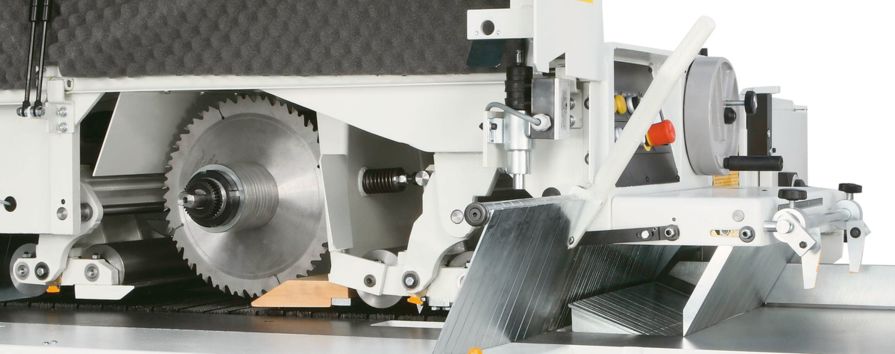

Anti-kickback finger barriers
The SCM multiblade rip saw is equipped with 4 anti-kickback finger barriers: three top and one bottom and a chip deflector screen between the three top barriers. -
Customisation for any requirement
Laser beam cuttin line reference. Some typical uses:
- extraction of irregular planks, without using fences
- selection of clear parts of planks with knots and fissures using rapid movement fence with single blade -

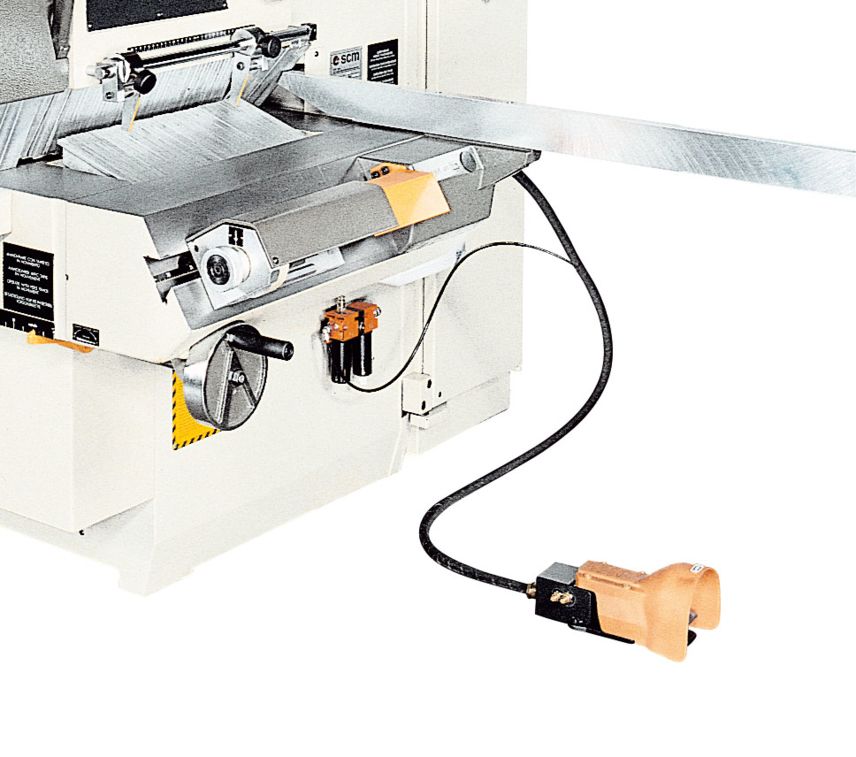

Programmable turret fence
6 stop-turret programmable fence with pneumatic pedal positioning. It enables the sppedy reference movement when different cutting prorams are fitted on same shaft sleeve. -
Extra saw blade shaft sleeve
With the possibility of having the blades always pre-set for repetitive cutting programs.
Technical data
| Feed track width | mm | 300 |
| Maximum blade diameter | mm | 350 |
| Minimum cutting length | mm | 390 |
| Continuously adjustable feed track speed | m/min | 6-48 |
| Motors power | kW (HP) | 18,5/25,5/37 (25/35/50) |
