L'invincibile f 7

(512) 931-1962
Joinery machines - Surface Planers - L'invincibile f 7

The advantages of an exclusive choice.
Buying a "L'invincibile" machine means you get a customized solution, thanks to experience, technical research and Italian creativity.

Discover the "Xylent" cutterhead, available for this machine.

Advantages

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

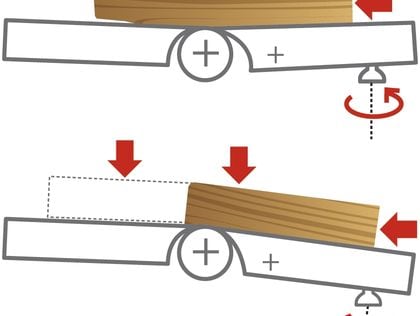

Perfect joints every time with concave/convex device. The available settings allow perfect bonding of the pieces giving excellent coupling and eliminating any joint line.

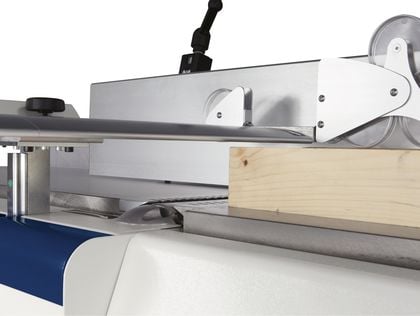

Ergonomics and safety with the "Smart Lifter" protection. The protection system is perfectly integrated into the machine base excluding any hindrance or obstruction in the work, and with automatic vertical, horizontal and tilted movements it provides complete coverage of the tool before, during and after machining.

Exceptional finish with the “Xylent” spiral knife (3 spiral knives)
Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical data
L'invincibile f 7
Cutterhead working width mm / inches 520 / 20

With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/4
520 x 35 x 3

With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/84
15 x 15 x 2.5
Jointer bed length mm / inches 3008 / 118
Three-phase motor Hp 11
Max. stock removal mm 8
