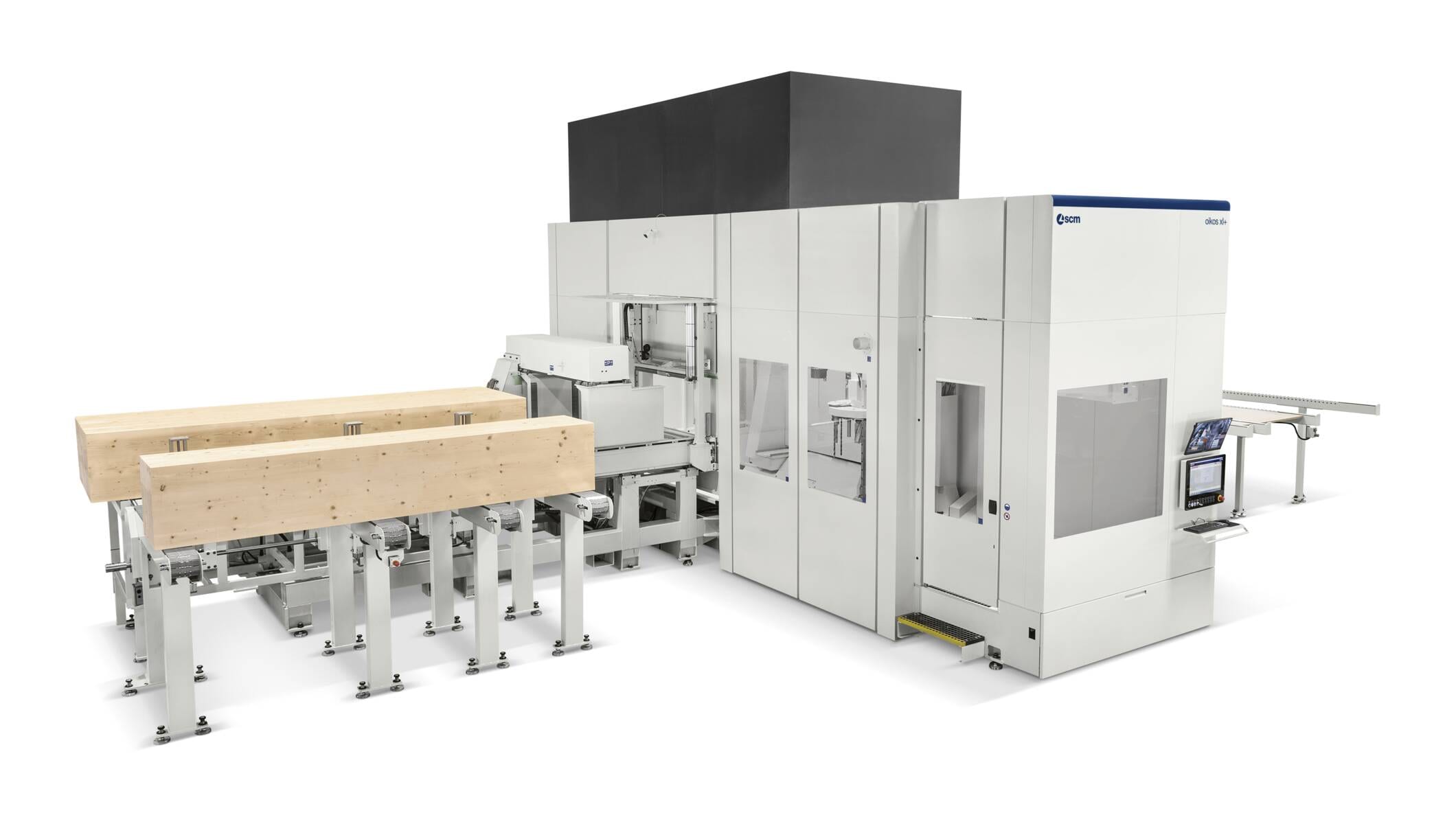

oikos xl+ is the new CNC machining centre for processing structural columns with a maximum cross-section of 1,250x610 mm, used in the construction of multi-storey buildings. The presence of an independent sawblade unit, in addition to the 6-axis operating unit, allows through cuts to be performed even on the maximum thickness.
HIGH CUTTING CAPACITY

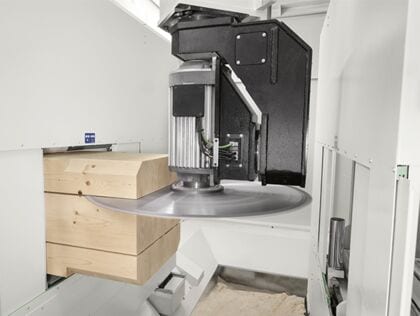

The independent sawblade unit allows cuts up to 400 mm deep. The combined use of the 5-axis sawblade unit and the sawblade fitted on the main operating unit allows processing of up to 610 mm thick elements.

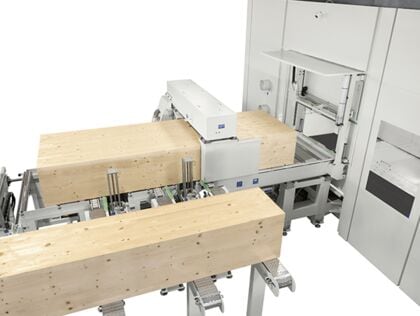

The machine's robust and adequately dimensioned structure allows it to support and process very heavy elements, up to 4 tonnes, and in very hard materials.

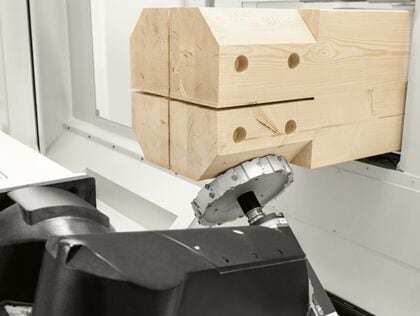

Thanks to the innovative 6-axis architecture of the main operating unit, any machining operation can be performed on all faces of the workpiece with no need of repositioning.

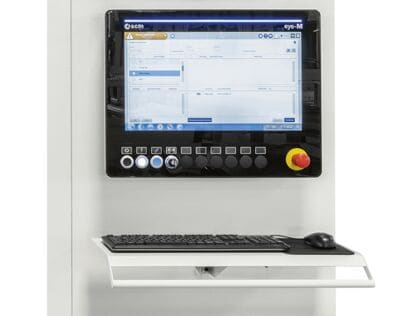

Maestro beam&wall is the proprietary SCM software compatible with the most popular CADs design systems in the timber building industry. It allows programming both in the office and directly on the machine. Thanks to the new HMI software Maestro active beam&wall, control and optimization of the production flow are even simpler and more intuitive.
|Length max.||mm||9.000 - 13.500 - 19.000|
|Cross-section max.||mm||1.250 x 610|
|Cross-section min.||mm||50 x 20|
|Main operating unit|
|Power max. (S1)||kW||24|
|compatible with tool store||yes|
|Additional operating unit|
|Power max. (S1)||kW||18,4|
