gabbiani vs

(512) 931-1962

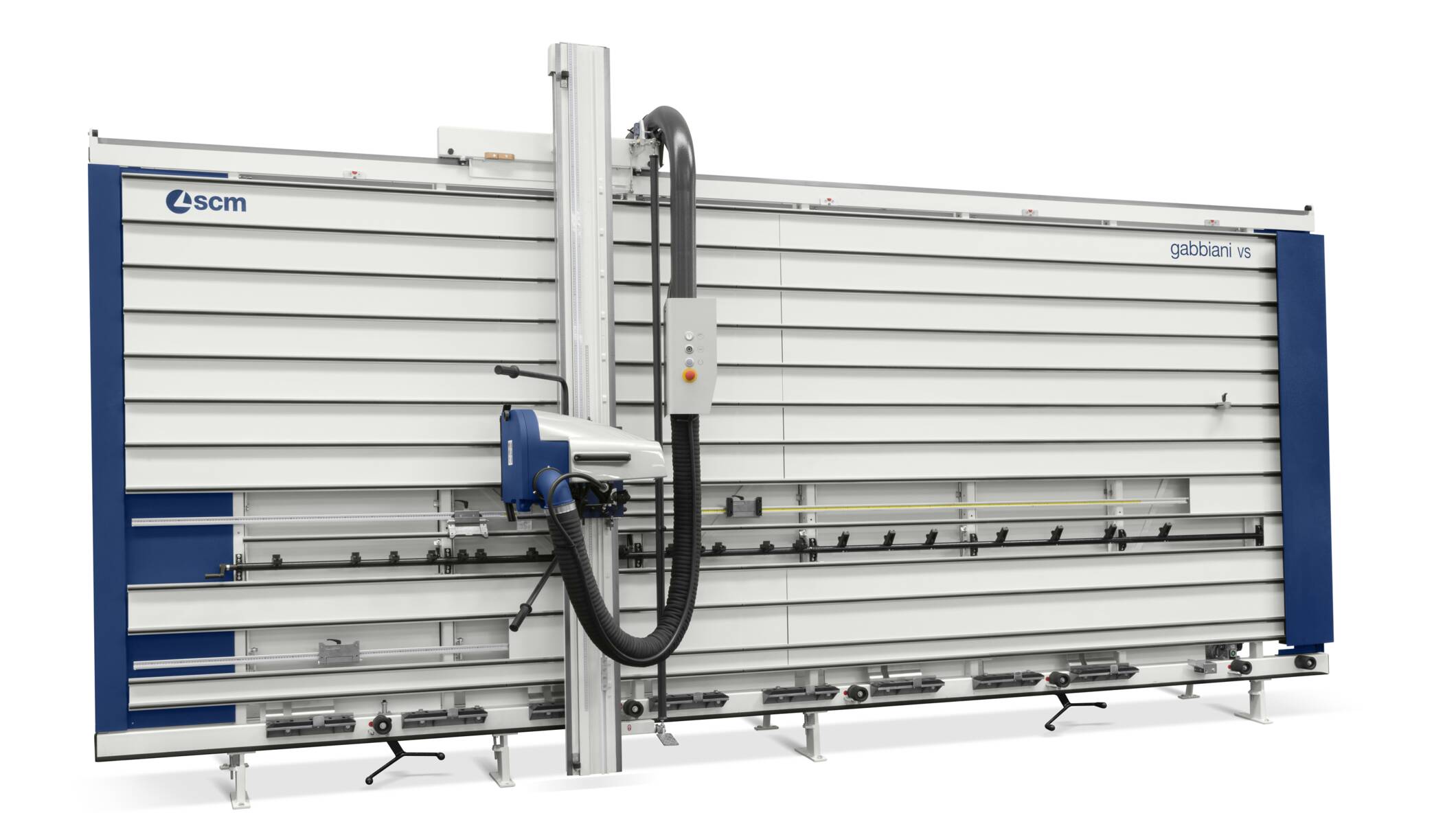

Vertical panel saw with paired scoring unit with 2 saw blades, designed to make horizontal and vertical cuts on different types of wood materials.

Voordelen

FUNCTIONAL AND COMPACT

Thanks to the reduced overall dimensions

POWERFUL AND STURDY

The electro welded frame gives the highest resistance to the solicitation

THE RIGHT COMPROMISE BETWEEN PERFORMANCE AND COST

With the paired scoring unit with 2 saw blades guarantees cutting quality at a reasonable price.

Technische gegevens

		VS32	VS42
Max. length of horizontal cut	mm	3200	4200
Max. length of vertical cut	mm	3200	4200
Max. height of vertical cut	mm	1900	2200
Max. height of horizontal cut	mm	1700	2080
Max. cutting thickness	mm	60	60
Motor power	kW	3.7	3.7
Blade diameter	mm	250	250
Rotating speed	rpm	5300	5300
Mechanical positioners for horizontal cuts		4	4
Stops for vertical cuts		1	1

Media

Documentation

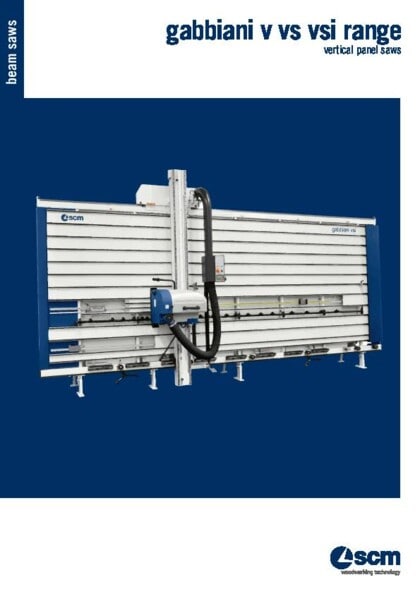

gabbiani v vs vsi range_EN
