compact 3 r

(512) 931-1962
Finishing systemen - Spuitmachines - compact 3 r

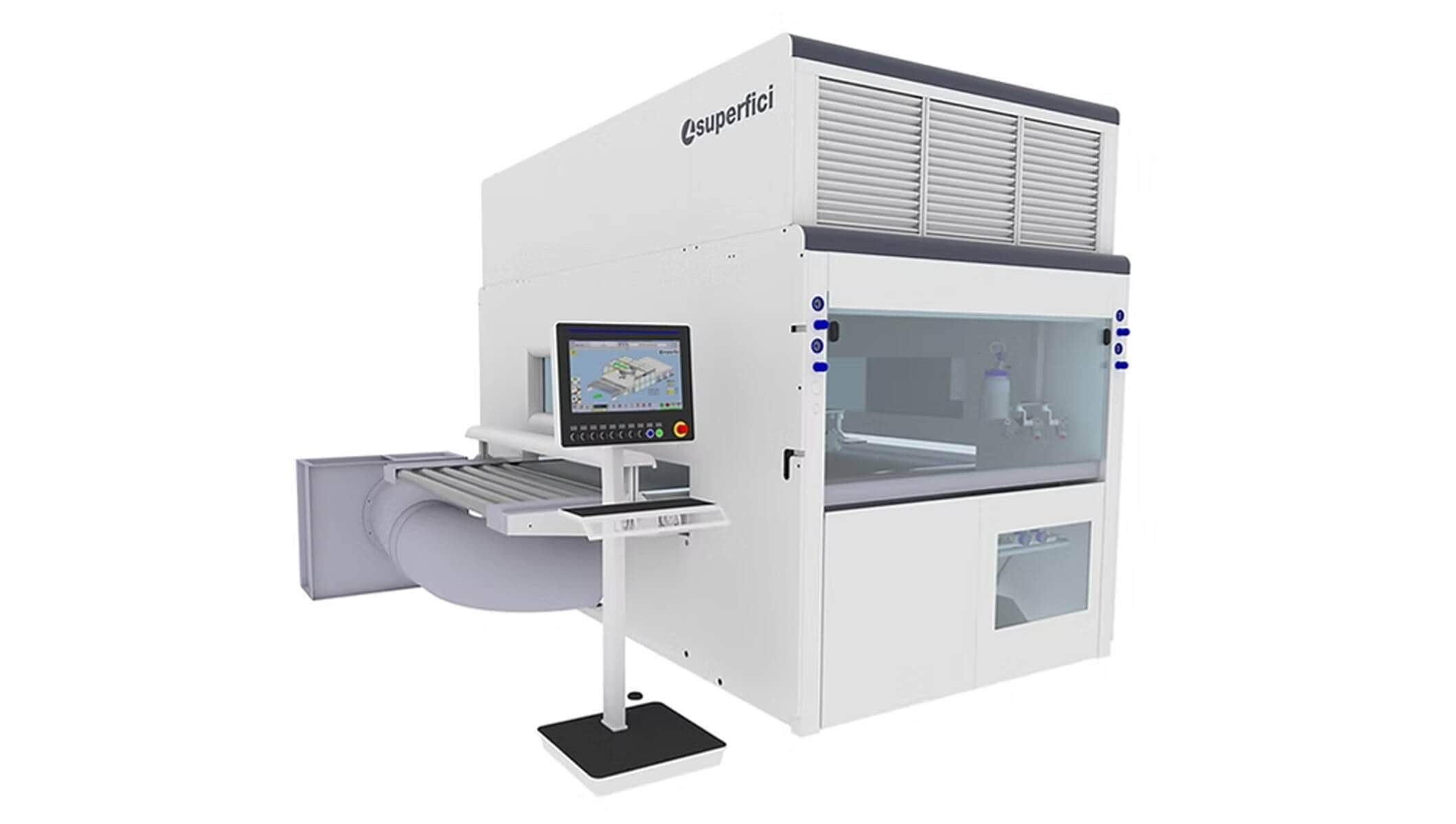

The Compact 3R is a high-performance spraying machine which gives you the most value for your money. Quality is obtained with a double reciprocating arm inside a cabin with a double filtration system. Compact and economical, it guarantees all the advantages of automatic spraying while remaining accessible to small and medium-sized businesses.

Voordelen

QUALITY: Double spraying arm is installed on a high precision linear guide inside the pressurized cabin.

COSTS SAVING: Lacquer reclaiming unit SCRAPE ON WET is installed on a removable trolley to allow easy cleaning operations.

EASE: Full-size doors access the cabin from both sides for easy cleaning and maintenance operations.

WORK PLANNING: A color touch-screen panel is integrated with our simple and intuitive software, which has the ability to set working parameters, memorize recallable recipes, diagnostics and periodic maintenance programming.

Technische gegevens


compact 3 r

Working width

1300 mm.

Workpiece max. thickness

 90 mm.

Working height

900 mm.

Feed speed

 2 : 6 m/min

Conveying system

plastified belt with lacquer reclaiming unit

Electronic control

 PLC or PC as option
