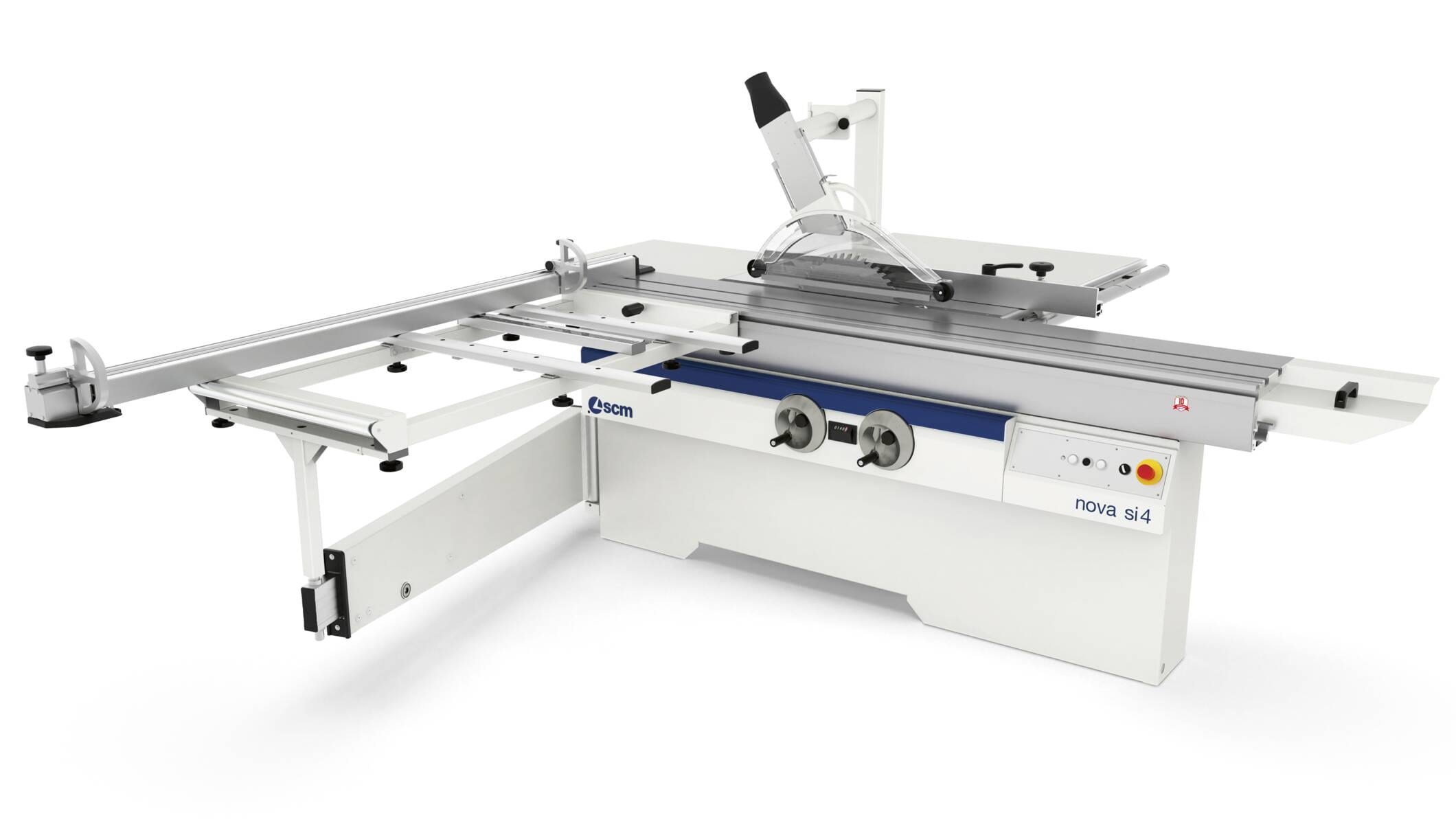

The new circular saw that combines accuracy, reliability and sturdiness to guarantee high performance standards.
MAXIMUM CUT QUALITY GUARANTEED OVER TIME

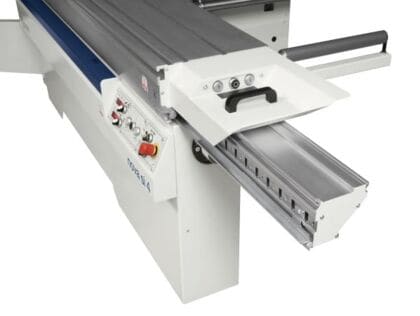

New highly reliable sliding carriage, guanranteed for 10 years and developed to enhance performance and customization. Its closed reticular geometry provides top rigidity and minimal flexing.
The carriage locking in any position makes the machine even more ergonomic and easy to use.
SOLID AND STURDY STUCTURE

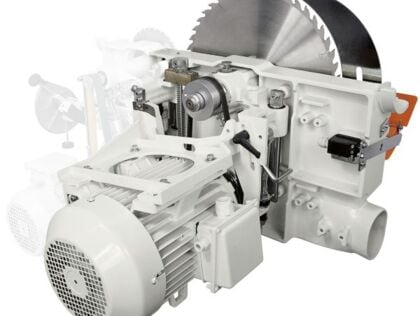

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels.
OPTIMAL SUPPORT

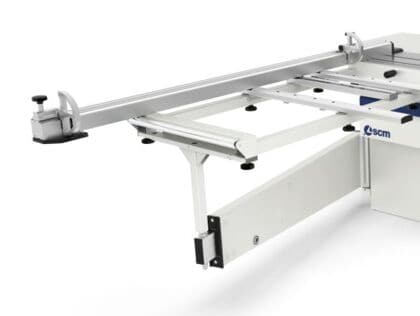

The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer's demands, different optional squaring frame devices are available.
ALWAYS USER FRIENDLY

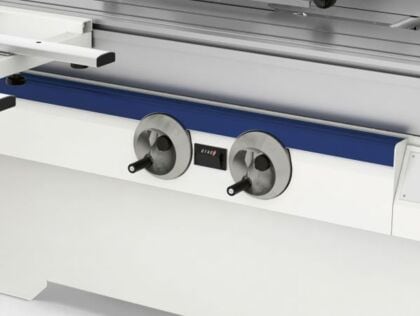

The hand-wheels on the machine front, for the saw blade unit moving, are easy to use; every minimum hand-wheel movement corresponds to an exact blade adjustment.
| nova si 4 | ||
| Max. saw blade diameter with installed scoring unit (option) | mm | 315 ÷ 400 |
| Max. saw blade projection from the table at 90°/46° | mm | 140/99 |
| Squaring capacity | mm | 2250 ÷ 3800 |
| Cutting width on rip fence | mm | 1000 ÷ 1500 |
| Three-phase motors power starting from | kW/Hz | 5 (6) / 50 (60) |
