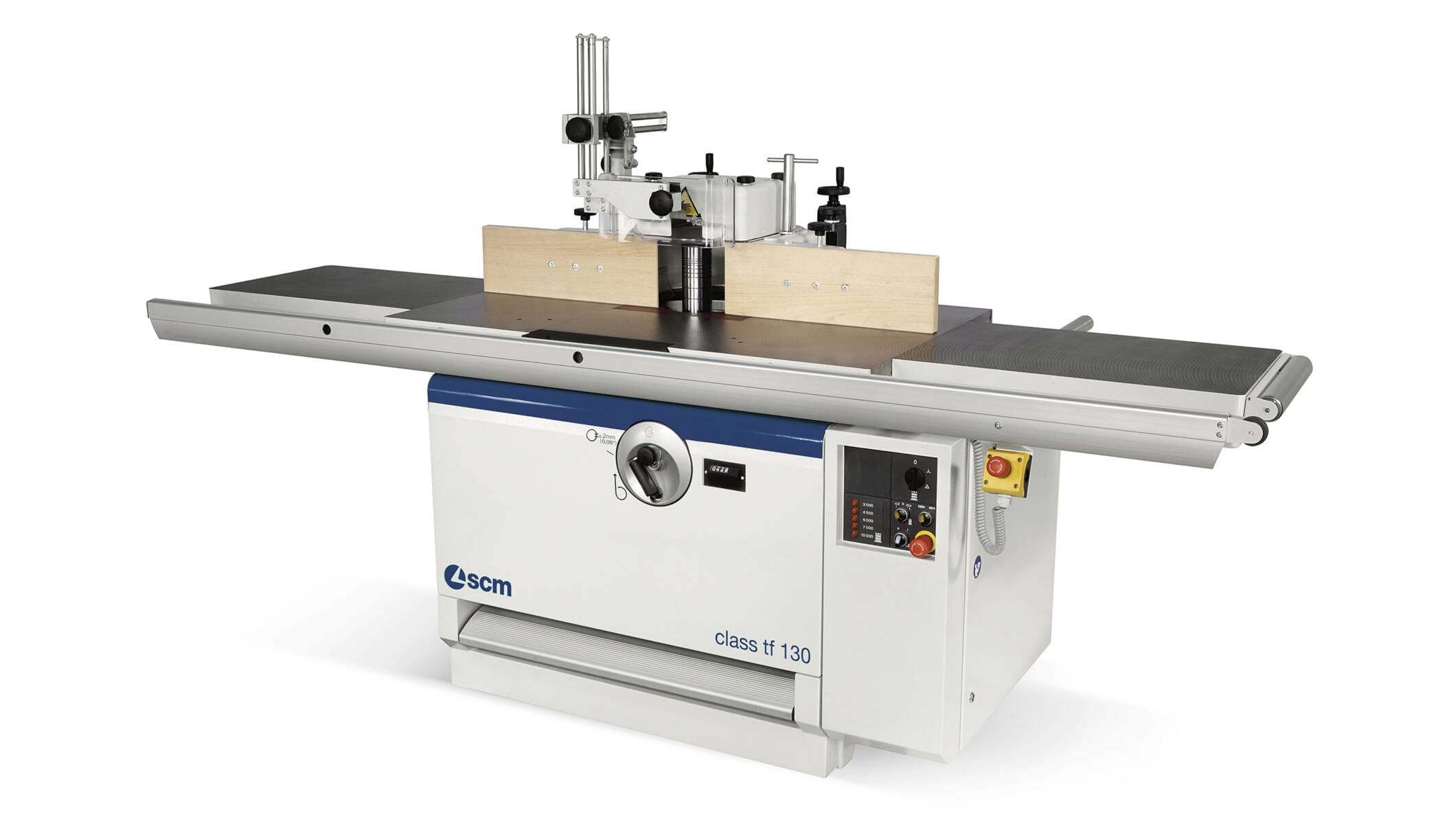

class tf 130
(512) 931-1962
Class TF 130: Tupí movimentación manual para la subida/bajada del eje con visualizadores digitales eléctronicos para la individuación de las cotas de trabajo.

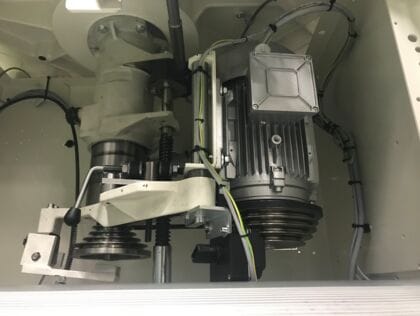

Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The shaper spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust

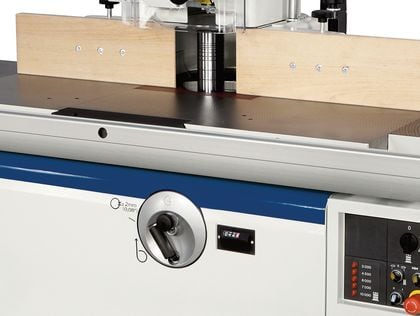

Set up precision and reliability. The operator easily adjusts every movement thanks to the handwheel with mechanical readout positioned on the machine front.
maximum set-up speed and ease-of-use. The spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimetre in positioning the tables so that no more test runs are required to get the desired result
| Class tf 130 - tf 130e | ||
| Max. useful spindle length | mm / inches | 180 / 7 |
| Spindle speed | rpm | 3000/4500/6000/7000/10000 |
| Max. diameter of the profiling tool | mm / inches | 250 / 9.8 |
| Max. tool diameter retractable under the table at 90° | mm / inches | 300 / 11.8 |
| Max. diameter of the tenoning tool | mm / inches | 300 / 11.8 |
| Three-phase motor | Hp | 11 |
