minimax ad 21

(512) 931-1962
Joinery machines - Semi-automatic boring machines - minimax ad 21
Photos may include optional equipment.

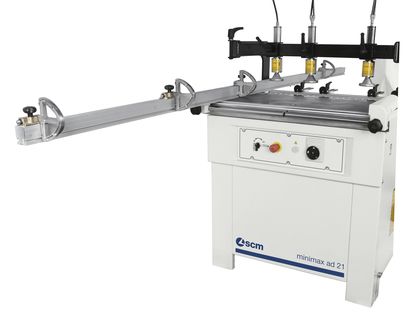

Single head multiple boring machine with 21 spindles ideal for craftsmen and professional workshops.
Advantages

Drilling Head

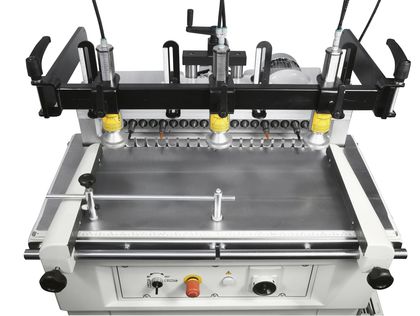

Drilling head made from single-piece aluminium casting, to guarantee absence of vibrations. The boring unit runs on two rectified cylindrical guides which guarantee stability and precision. The machine is equipped with a mechanical revolver with 5 different boring depth adjustments. The new dust extraction system is incredibly efficient, and leaves the machine surprisingly clean!

Precise positioning
The mechanical gauge guarantees fast and precise positioning of the lateral fences.

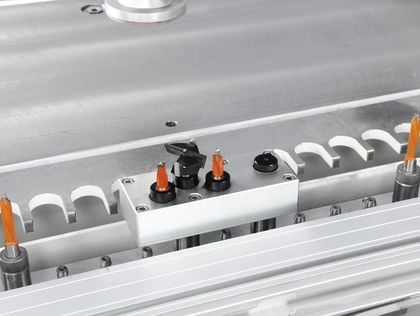

For increased versatility, the quick-change chucks can be fitted with various types of bits for different operations, like boring hinges locations.

Controls
All controls are ergonomically positioned on the front of the machine. This includes the switch which sets the boring head at a 45° angle, allowing for an immediate changeover between operations. For perfect boring of large panels, the machine has a long 3000 mm fence with a scale and retractable stops. The fence is quickly mounted and removed easily.

Technical data
AD 21
Max. panel width mm / inches 833 / 32.75
Worktable dimensions mm / inches 905 x 372 / 35.6 x 14.6
Worktable height mm / inches 900 / 35.5
Max. tool diameter mm / inches 40 / 1.57
Min. - max. panel height mm / inches  10 - 85 / .375 - 3.25
Spindle speed rpm 2800
# of Spindles # 21
Spindle Spacing (center-to-center) mm 32
Media

Advance 21 video

Documentation
