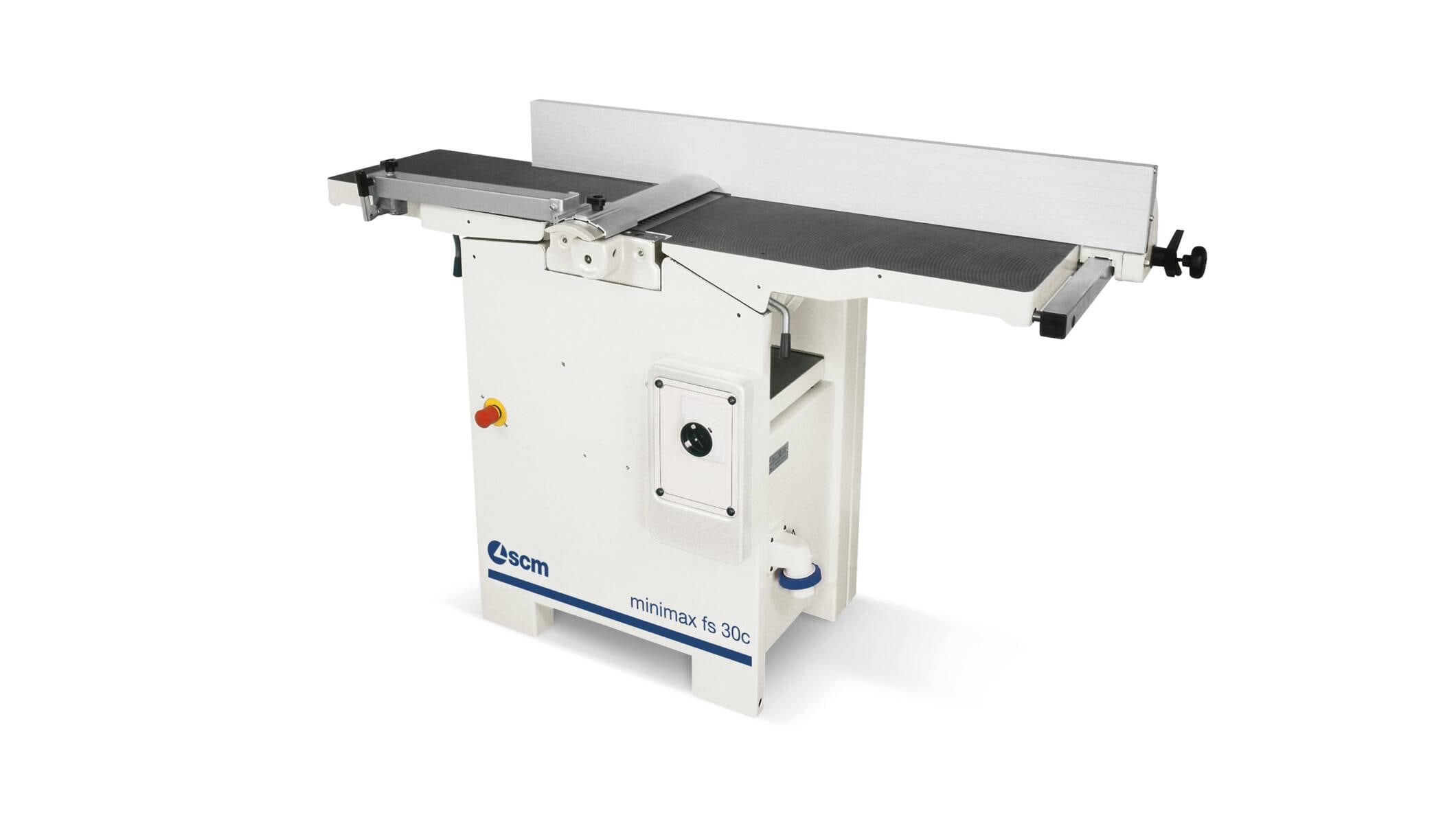

minimax fs 30c

(512) 931-1962
Joinery machines - Jointer/Planer Combination - minimax fs 30c
Photos may include optional equipment.

The surfacing-thicknessing machine for the D.I.Y. woodworkers and the craftsmen joineries.
Fine Woodworking named our award-winning 12" jointer/planer as "Best Overall" in its category. This machine offers premium power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why one of our best-selling units may be perfect for you.



Advantages

Optimal planing
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Absolute rigidity
Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical data
fs 30c
Cutterhead working width mm / inches 300 / 12
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives

mm / n°
mm

72 / 3
330 x 30 x 3
With XYLENT Spiral helical Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives

mm / n°
mm

72 / 48
15 x 15 x 2.5
Max. stock removal mm 4
Jointer table length mm / inches 1510 / 59.5
Planer table dimensions mm / inches 300 x 585 / 12 x 22
Planer feed speed m/min 7
Min. - max. planer working height mm / inches 3 - 230 / 0.12 - 9
Single-phase motor Hp 4.8
Fence Tilt degrees 0 - 45
Media

Milling wirh a fs 30 classic

How to mill timber/lumber - Introduction to milling with a jointer and thickness planer

Minimax FS 30

In questo video viene cronometrato il passaggio da lavorazione filo a lavorazione spessore su una ‎Minimax‬ FS30. Il risultato : soli 43 secondi!

Albero pialla "Xylent"
