Beam saws - Automatic single-blade beam saws - gabbiani st
Ideal for the company requiring a lean and easy workflow.

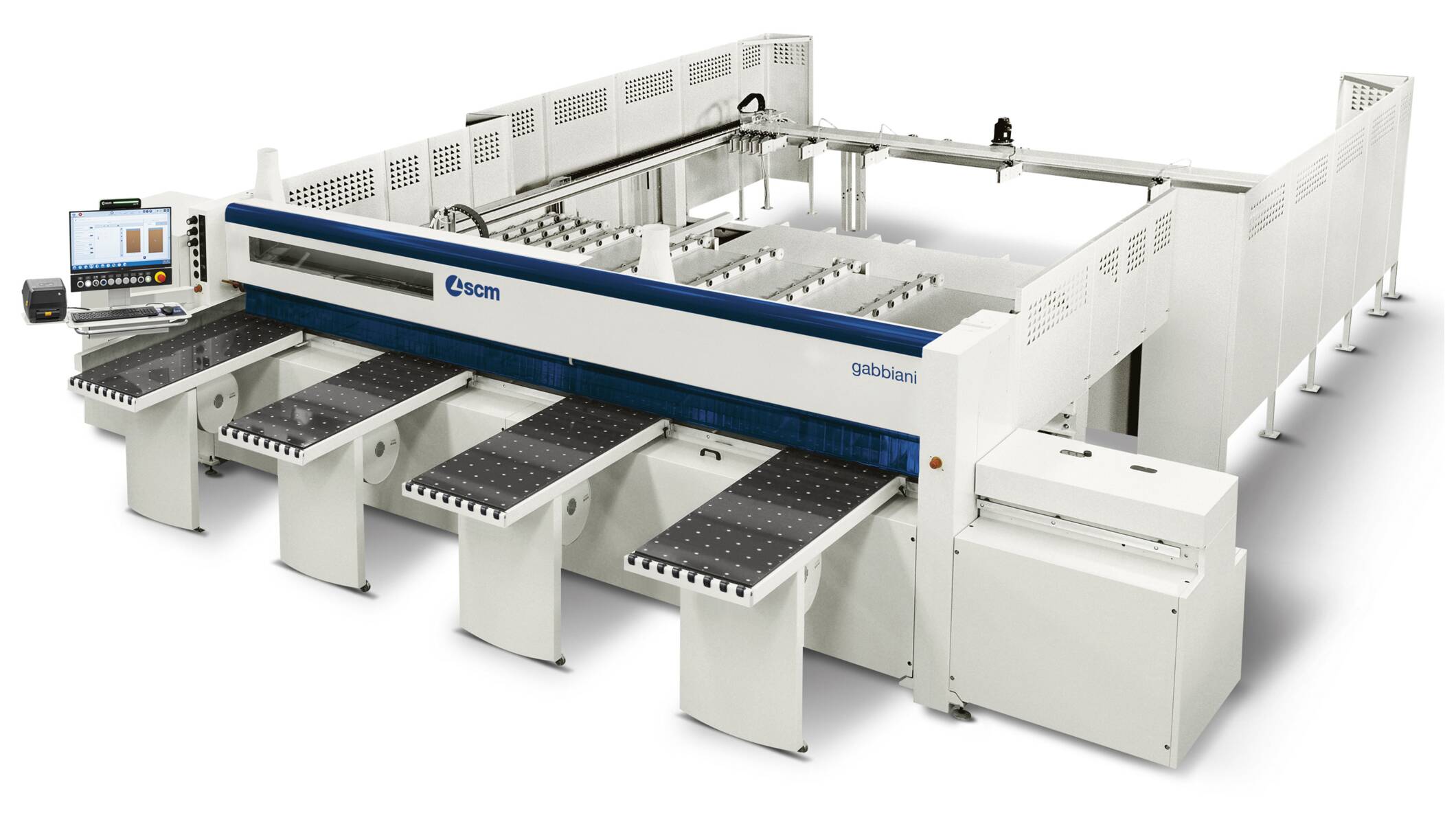

Single-blade beam saw controlled by PC/PLC control system, designed to cut solid wood panels or panel stack and its products (chipboards, MDF panels, multilayer panels, plywood panels and fiber panels).

Selectable air blowing table: an essential tool.
The possibility to enable/disable the air blowing device on each table section via independent motors, ensuring optimal sliding of the panels only where it is needed and avoids accidental falling of cut panels temporarily stored on the tables.

SAW SET: tool changing has never been so easy.
In few seconds the "SAW-SET" device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.

Loading platform: when sturdiness and precision make the difference.
The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity  in any material and format, alwas ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.

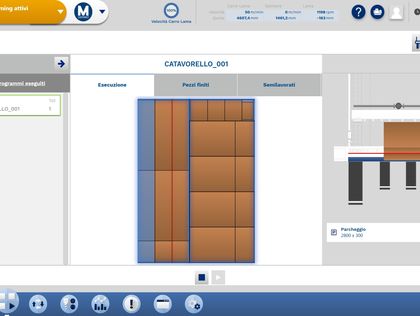

Meastro active cut: easy and powerful software to programme and create all the panels imaginable.

Intuitive, reliable and customizable operator’s interface depending on customers’ needs.
Materials stock: creation of a panels storage with an integrated bi-directional connection to Maestro Watch
Off-cuts stock: automatic off-cut restocking that will be displayed together with the materials stock
Parts handling management during machining: parking solution for end products, off-cuts and scraps.

Technical data
    gabbiani st 115
Cutting lenght mm 3200/3800/4500
Cutting depth on platform mm 1850/2200
Max. height of panel stack on platform with support beams mm 600
Blade projection mm 115
Saw carriage variable speed (option) m/min 0 - 135 (0 - 150)
Pusher variable speed (option) m/min 0 - 70 (0 - 90)
Main blade motor S6 - 40% (option) kW 9 (11 - 15 - 18)
Scoring unit blade motor 50 Hz  kW 1,8
Main blade / scorer speed 50 Hz r.p.m. 3900/6300
Main blade / scorer blade diameter mm 400/160
Number of clamps (3 of which with frontal side aligner) std 6
