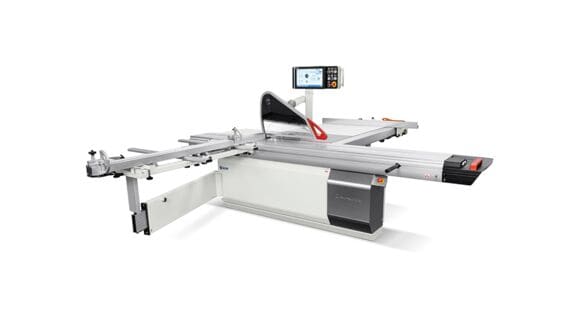

L'invincibile si 5
(512) 931-1962
The advantages of an exclusive choice.
Buying a "L'invincibile si 5" machine means you get a customized solution, thanks to experience, technical research and Italian creativity.
Console eye-S main functions:
- connectivity among machines belonging to the same company network and 4.0 Industry preset
- sharing of work programs and tools database
- activity monitoring and reporting on the use of the machine
- connectivity with SCM Thundercut (optimizer/sequencer App)
- self-diagnosis, tele-service and link to troubleshooting
Speed and accuracy
Motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides. (stroke 1600mm)
Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).
Telescopic swinging arm: fluidity of movement. The work piece support frame is the only one to be made of a large dimensioned extrusion and linear guide on recirculating ball bearings. It ensures: - maximum work piece with fluid movement - no play and no noise - dust protection - no need for maintenance.
eye-S console: the pleasure of controlling all machine functions from the control panel. The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touch-screen display and the Maestro active user interface.
| L'invincibile si 5 | ||
| Max. saw blade diameter with mounted scorer | mm / inches | 450 / 18 |
| Max. saw blade diameter | mm / inches | 550 / 22 |
| Sawblade arbor size | mm | 30 |
| Maximum saw blade projection from table to 90°/45° | mm / inches | 200/130 7.8/5.1 |
| Cutting width on rip fence (Rip capacity) | mm / inches | 1500 / 59 |
| Max. squaring stroke of sliding table saw | mm / inches | 3200 / 126 |
| Three-phase motor | Hp | 15 |
| Indipendent scoring motor | Hp | 1 |
Si 5 L'invincibile
