stefani cell H+

(512) 931-1962
Edge banders, sizing edge banders - Flexible edgebanding solutions - stefani cell H+

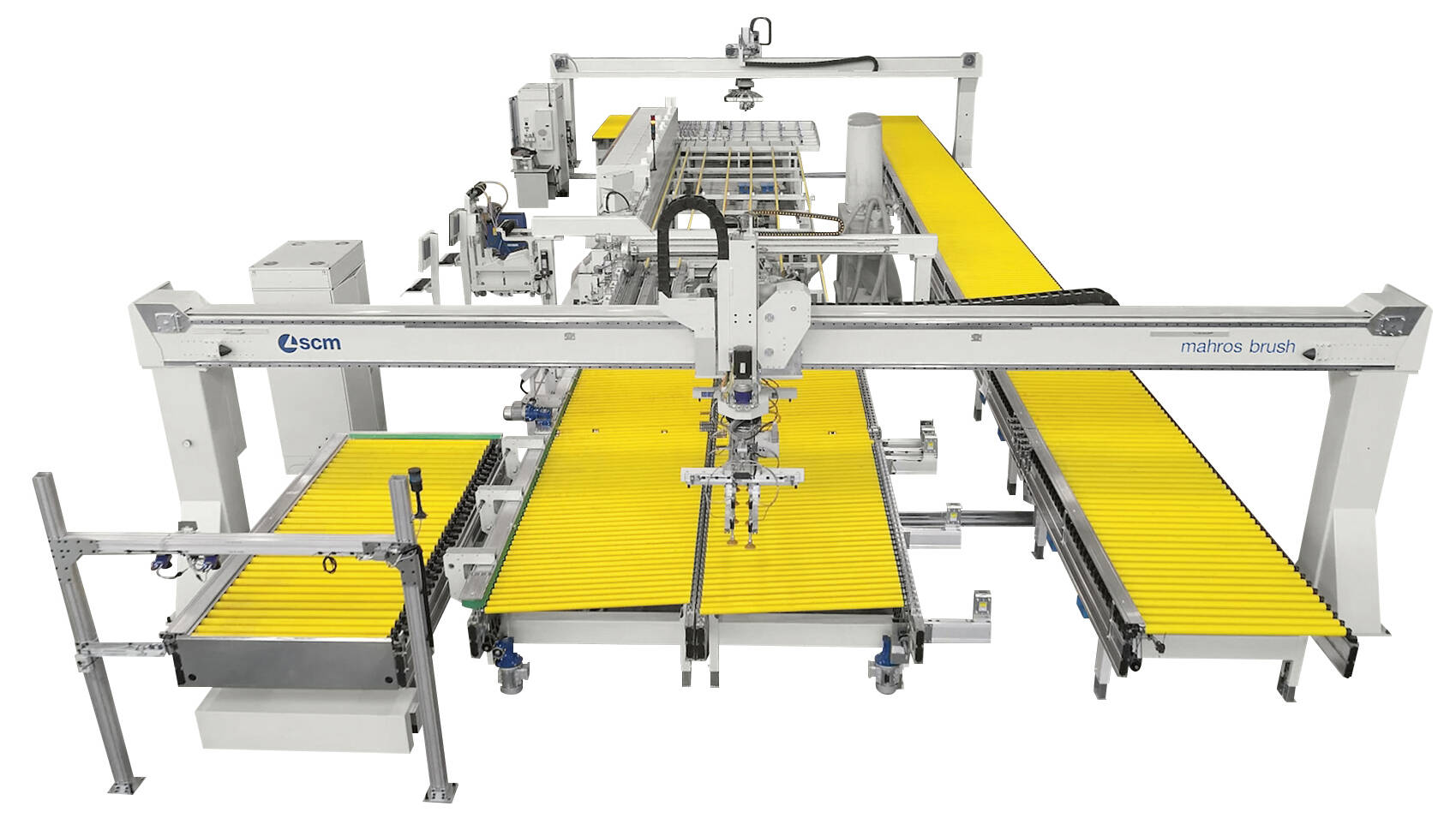

Stefani cell H+ is the right choice when productivity and quality become the main demands.
The TOP solution for customization and automation achieve maximum performance in the panel edge banding.
It can be perfectly integrated into the entire production process and It combines in a single solution customized quality and production, industrial level production volumes as well as maximum diversification of the production batches with panels already squared or to be squared, constantly guaranteeing business success with every work order.
Advantages

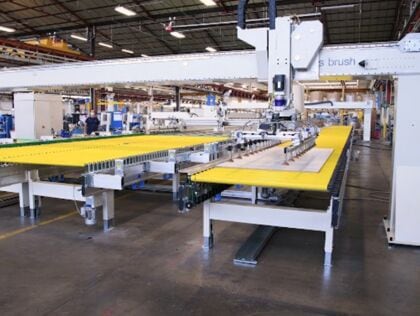

The automation for the loading and unloading of the panels allows a high production capacity and a completely automatic management of batch 1 and homogeneous batches. Vertical buffers can be placed in the panel return area, between the exit and entry of the edgebander for a constant productivity and high profitability of the plant.

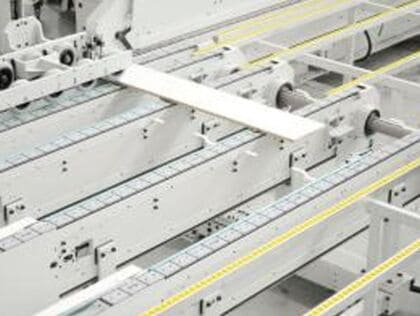

High performance infeed device by chains for a constant and continuous processing quality thanks to dogs. Suitable for both panels to be squared and already squared previously. High performance motors and axes allow the insertion of the panels at speed up to 28 m / min.

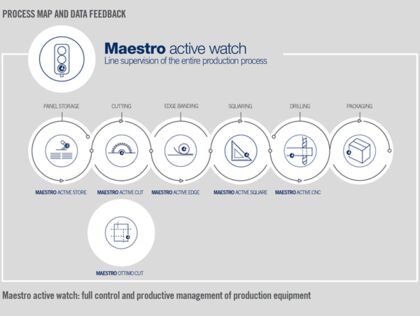

Maestro active watch
Supervision software developed by SCM to control and manage the entire production process.
The software is able to manage all the machines in line in an integrated manner, to program the entire process and monitor all the operations of the plant in real time.
Maestro active watch is developed to optimize machine usage as well as the entire process, providing integration with the different software existing in the company.
EdgeStore Manager
The automatic learning system via barcode or QRcode reader combines the program to be executed with the correct edge for extremely simple and fast management of the edge coil change. Thanks to the dedicated interface of the Maestro active edge software, all edge information (name, color, thickness, consumption, etc.) are always available on a single screen.
Technical data
Machinable dimensions with lengthwise feeding
(length x width) (min/max)
mm 320x130 / 3200x1600
Machinable dimensions with crosswise feeding
(length x width) (min/max)
mm 120x260 / 1600x3200
Operators 1
Program change to Batch 1 (reading of unique code on panel by Bar Code / Qr Code) - YES
Possibility to size the panel - YES
Change of colour, thickness, edge protection film - YES
Panel dimension change - YES
Groove position and depth (in flexible mode) - YES
Glue dosage change - YES
Addition of a panel during Batch 1 machining - YES
Homogeneous panel management - YES
Closed loop management - YES
Panel re-machining - YES
Edge bander model - stefani one / stefani sb one
