action fl

(512) 931-1962
Assembly - Clamps for furniture - action fl

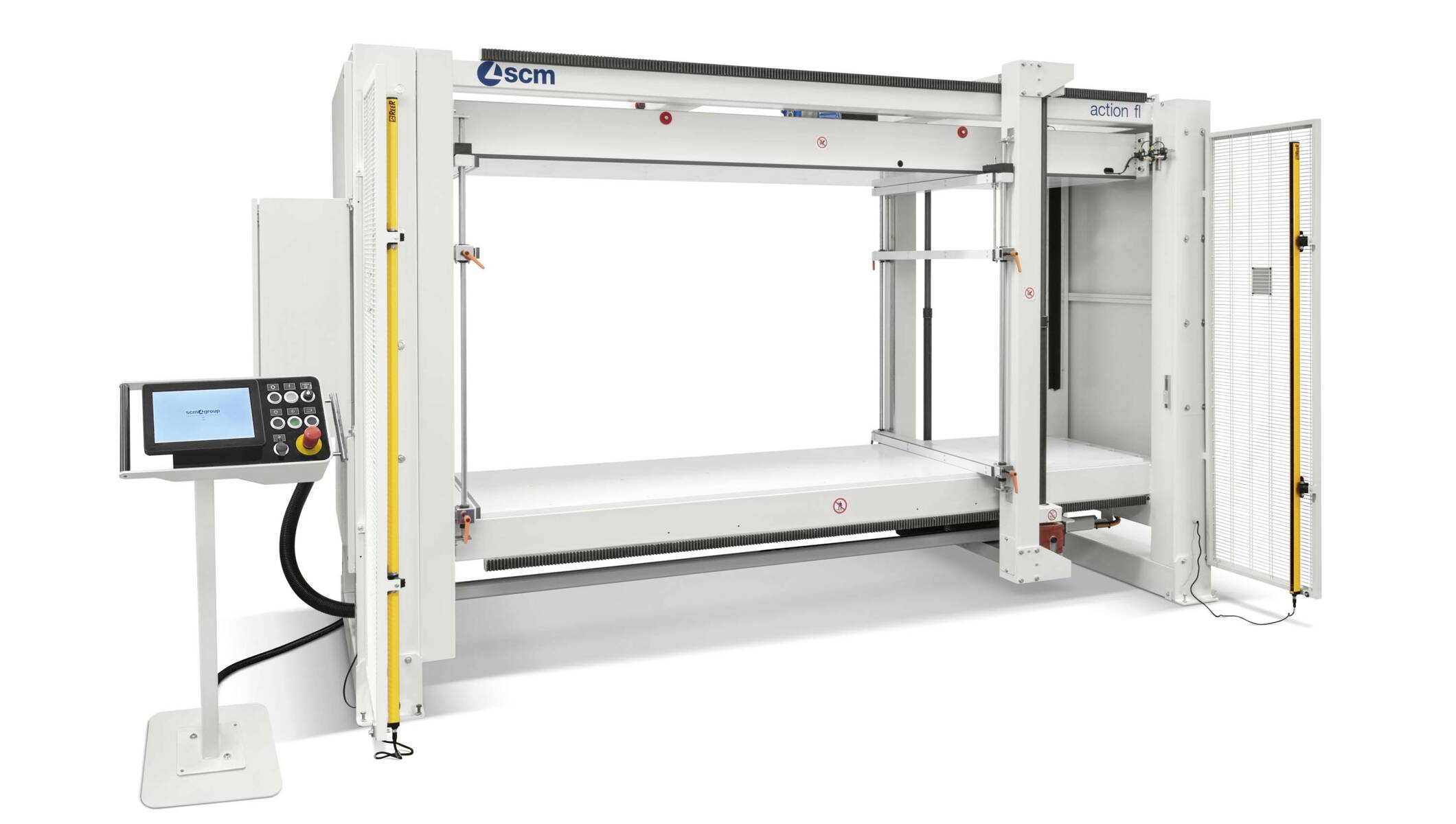

The electro mechanical cabinet clamp action fl with manual loading/unloading and a complete automatic cycle, is the solution for the assembly of cabinets. This machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).


• Efficient cabinet squaring by means of an integrated rack and pinion system

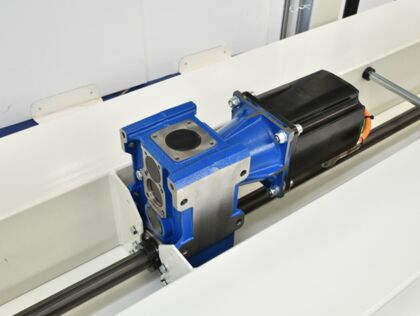

• Best performance due to installed brushless motors, which allow the cycle’s maximum speed execution.
• Versatile use due to touch screen panel control.

Technical data
Installed power  kW 4
Standard working dimensions (max)                                           mm  2500x1250(H)x800
Standard working dimensions (min) mm 250x250(H)x150
Working height   mm 600
