action e
(512) 931-1962
The electro mechanical cabinet clamp action e is the solution for the assembly of cabinets.
Intuitive and easy to use.
This manual operated machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).
Advantages
-

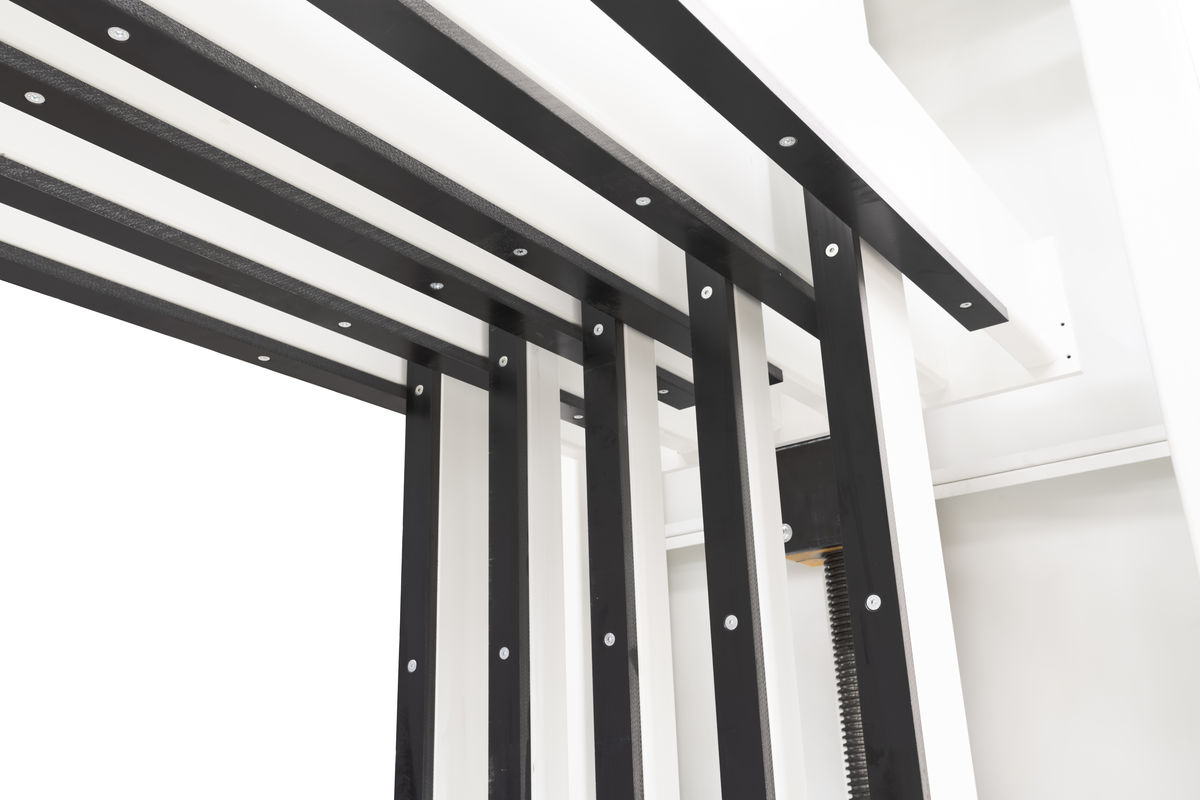

Better quality with an effective pressing on the entire surface (comb system).
-
Maximum ease of use by means of buttons.
-

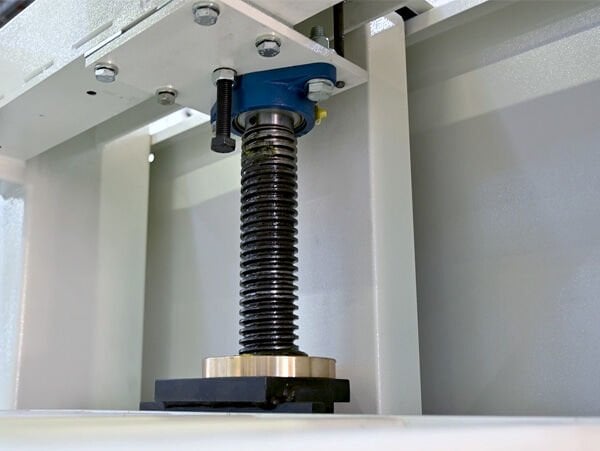

Straight sided and in square work due to the use of properly dimensioned screws.
-
Manually operated translating pre-assembly and unloading table with tilter: a valuable aid for the operator (optional).
Technical data
| action e | ||
| Cabinet lenght | mm | 250 ÷ 2400 |
| Cabinet depth | mm | 250 ÷ 700 |
| Cabinet height | mm | 270 ÷ 1100 |
| Vertical pressure power | kN | 15 |
| Side pressure power | kN | 10 |
| Working height | mm | 600 |
| Weight | ton | 2,2 |
| Vertical pressure beam positioning speed (max) | mm/s | 50 |
| Horizontal pressure beam positioning speed | mm/s | 45 |
