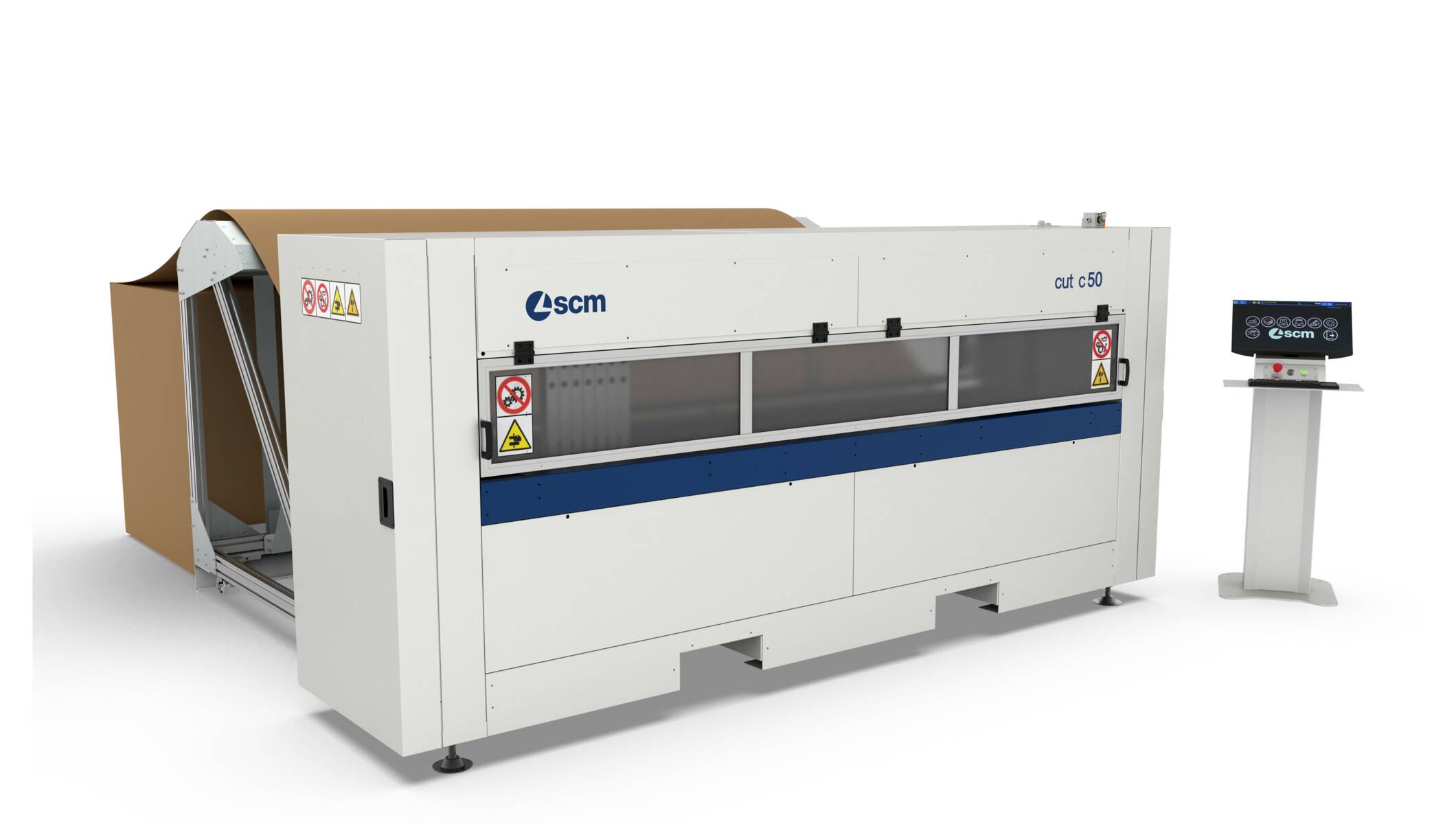

cut c 50 is the ideal entry level solution for small batch production or order by order (maximum flexibility).
Thanks to the longitudinal cutting and creasing units and the transverse unit, it is possible to have great flexibility in box sizes and types.
The operator can recall the desired box from the interface, or by reading a barcode that transmits the dimensions of the product to be packed to the machine.
The machine can be equipped with a unwinding structure for two fanfold (std.). It can also be configured with a 4-fanfold unwinding structure with automatic selector (opt.)
Functional and compact thanks to its compact dimensions, the new cut c 50 fits into any production environment.
The machines are equipped with 7 cutting and creasing groups as standard.
Package size optimization and production flexibility, the packaging is wrapped to the product actual size, thus avoiding the use of expensive additional filling materials and related labor time.
Space optimization, this solution avoids the storage of dozens of different box formats and their handling, resulting in less labor.
| cut c 50 | ||
| Max. usable carton width | mm | 2500 |
| Productivity | box/min | 2 |
| Productivity batch 1 | box/day | 0 - 500 |
| Productivity batches | box/day | 0 - 750 |
| Cardboard feed speed | m/min | 36 |
| Single carton feed | fanfold | |
| Longitudinal units | no. | 7 |
| Creasing | normal | |
| Cardboard thickness | mm | 2 to 5 |
| Minimum open box length produced | mm | 420 |
