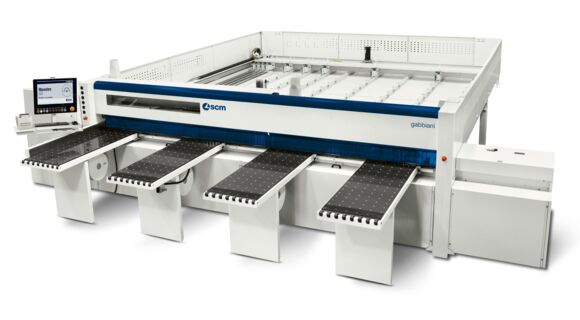

Opdeelzaag - Automatische opdeelzaagmachines - gabbiani st

De machine wordt bestuurd door een PC/PLC controlesysteem. De machine is ontworpen voor het zagen van massief houten panelen, spaanplaat, MDF panlen, multiplex panelen en gipsachtige panelen etc. De machine is op meerdere manieren te beladen. Voorbeelden hiervan zijn: direct op de lifttafel, belading op een zij rollenbaan etc.

Gebruiksvriendelijk: Een machine met een goede prijs/prestatie verhouding. De machine kan klantspecifiek worden geproduceerd en hiervoor is te kiezen uit een groot aantal opties. De machine kan makkelijk worden geintegreerd in het "Netline" proces welke alle machines kan aansturen: zagen, kantenaanlijmen, boren/frezen.

Software:
Wincut (PC/PLC interface), Cutty (niveau 1 optimalisatie software), 3D Simulator, Labels printen, Ottimo Perfect Cut (optimalisatie software voor op kantoor)

Voordelen

Selectable air blowing table: an essential tool.
The possibility to enable/disable the air blowing device on each table section via independent motors, ensuring optimal sliding of the panels only where it is needed and avoids accidental falling of cut panels temporarily stored on the tables.

SAW SET: tool changing has never been so easy.
In few seconds the "SAW-SET" device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.

Loading platform: when sturdiness and precision make the difference.
The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity  in any material and format, alwas ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.

Meastro active cut: easy and powerful software to programme and create all the panels imaginable.

Intuitive, reliable and customizable operator’s interface depending on customers’ needs.
Materials stock: creation of a panels storage with an integrated bi-directional connection to Maestro Watch
Off-cuts stock: automatic off-cut restocking that will be displayed together with the materials stock
Parts handling management during machining: parking solution for end products, off-cuts and scraps.

Technische gegevens
    gabbiani st 115
Zaaglengte mm 3200/3800/4500
Zaagdiepte op lifttafel mm 1850/2200
Zaagbladoverstand mm 115
Max. hoogte van panelen op de lifttafel mm 600
Variabele zaagwagensnelheid mm 0 - 135 (0 - 150)
Variabele pushersnelheid mm 0 - 70 (0 - 90)
Motorvermogen kW 9 (11 - 15 - 18)
