Saw carriage with independent raise of the blades.
Essential tool for machining post-formed panels in order to optimise cycle-time machine and enhance cut finish.
FLEXCUT unit: incomparable flexibility and productivity.
Increasing of productivity up to 30% and space saving up to 20% owing to the simultaneous execution of both rip and cross cuts.
Loading platform: when sturdiness and precision make the difference.
The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity in any material and format, always ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.
Meastro active cut: easy and powerful software to programme and create all the panels imaginable.
Intuitive, reliable and customizable operator’s interface depending on customers’ needs.
Materials stock: creation of a panels storage with an integrated bi-directional connection to Maestro Watch
Off-cuts stock: automatic off-cut restocking that will be displayed together with the materials stock
Parts handling management during machining: parking solution for end products, off-cuts and scraps.

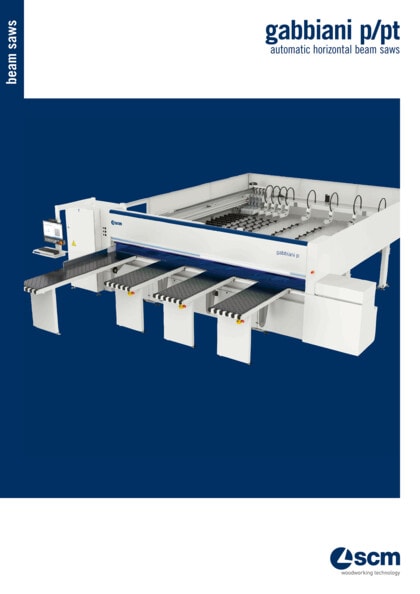

|gabbiani pt 80|
|Cutting depth on platform||mm||1850/2200|
|Max. height of panel stack on platform with support beams||mm||600|
|Saw carriage variable speed (option)||m/min||0 - 120|
|Pusher variable speed (option)||m/min||0 - 70|
|Main blade motor S6 - 40% (option)||kW||7 (9) (11)|
|Scoring unit blade motor 50 Hz||kW||1,5|
|Main blade / scorer speed 50 Hz||rpm||4650/5850|
|Main blade / scorer blade diameter||mm||340/200|
|Number of clamps||std||5|
