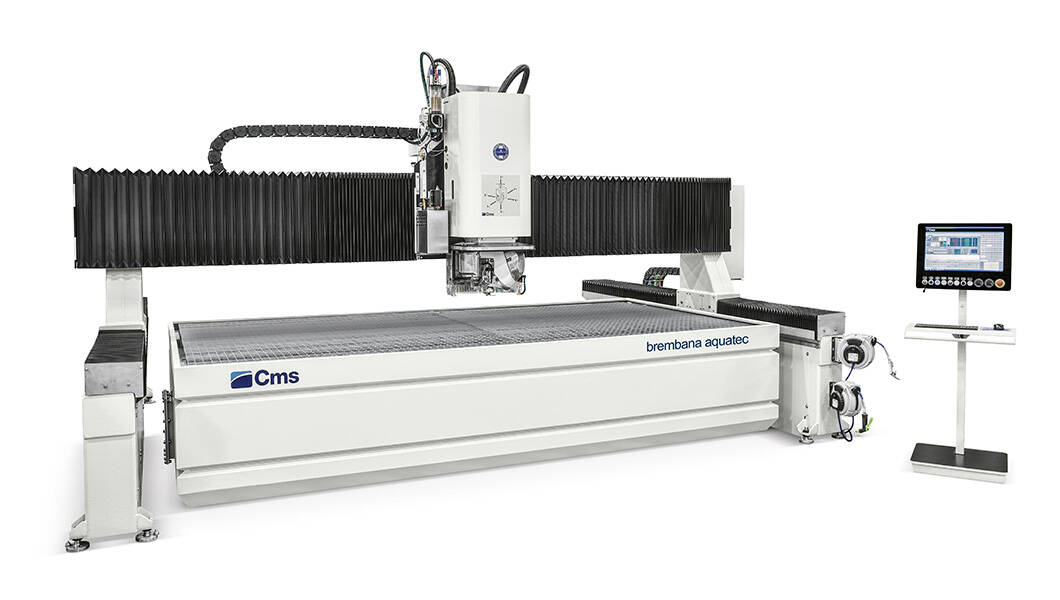

Brembana aquatec is an advanced, versatile, high-performance abrasive waterjet cutting system, able to accommodate the most diverse production demands in different application fields, delivering highly accurate cuts. The machine consists of a mobile bridge moving along separate highthickness steel supports, fastened to the floor and providing outstanding structural rigidity. This structure delivers high performances even by the most demanding tasks.
brembana aquatec is available also in the following versions:
UNMATCHED CUTTIN PERFORMANCE
The open frame structure with electric gantry on two separate thick supports on a basement anchored to the floor offer high rigidity even with rapid speed up to 54 m/ min e acceleration up to 2 m/s 2.
INFINITE OPPORTUNITY SAVINGS UP TO 33% OF THE CYCLE TIME
The most compact solution on the market with infinite rotation 33% less cuttig cycle avoiding to recover the revolutions of the C axis to align internal wires and tubes.
EASY OPERATIONS: ACCESS OF WORKTOP FROM 4 SIDES
Excellent access to the cutting area, the large gantry and modular frame allow configurations with wide space around the catch tank for easy loading and unloading operations.
|X Axis||3800 mm / 149 in||4020 mm / 158 in||6020 mm / 237 in||6020 mm / 237 in||54 m/min||2 m/s2|
|Y Axis||2650 mm / 104 in||2650 mm / 104 in||2650 mm / 104 in||3650 mm / 144 in||54 m/min||2 m/s2|
|Z Axis||530 mm / 21 in||530 mm / 21 in||530 mm / 21 in||530 mm/ 21 in||12,6 m/min||1 m/s2|
|B Axis||±60°||±60°||±60°||±60°||17299 °/min||1450 °/s2|
|C Axis||±340°||±340°||±340°||±340°||13400 °/min||850 °/s2|
|Workable area||2000x300 mm / 78x118 in||2000x4000 mm / 78x157 in||2000x6000 mm / 78x236 in||3000x600 mm / 118x236 in|
|Overall dimensions||5886x4039 mm / 232x159 in without light barriers||5886x4039 mm / 232x159 in without light barriers||7886x4039 mm / 310x159 in without light barriers||7886x5039 mm / 310x198 in without light barriers|
*STANDARD VERSIONS available up to 60120 (12000x6000 mm)
Dynamic precision (3-axis) ± 0,10 mm
Repeatibility of “ps” positioning ± 0,025 mm
