Bridge saws - 5 axes saw jet machines - brembana formax jet
Photos may include optional equipment.

5-axis saw jet machine

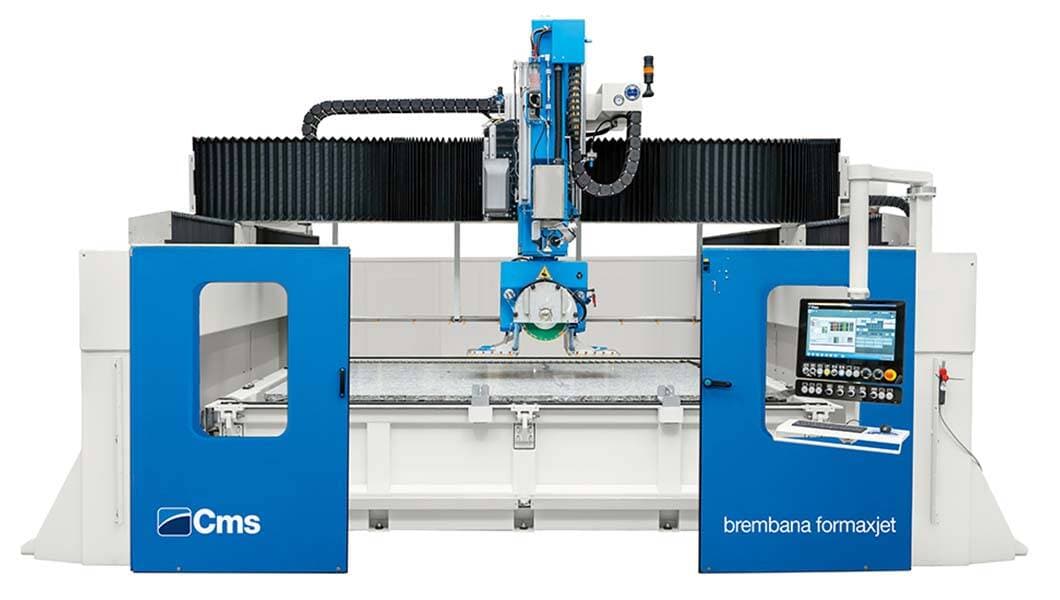

brembana formax jet is a Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table. It can carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on marble, granite, composite stone, and ceramic as well as stone blocks.

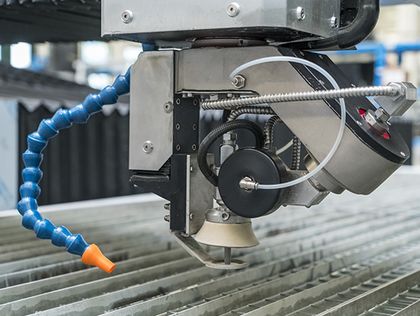

The machine is equipped with an abrasive waterjet cutting head that, working in combination with the diamond disk, enables automating natural and composite stone slab cutting operations when interfering cuts and internal angles are a factor. The AWJ head, integral with the main head, allows variable and small radius cutting, which would be impossible with just the diamond disk.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop:

  • kitchen countertops
  • vanity tops
  • wall panels for interiors and exteriors
  • flooring
  • doorsteps, staircases and thresholds
  • street furniture

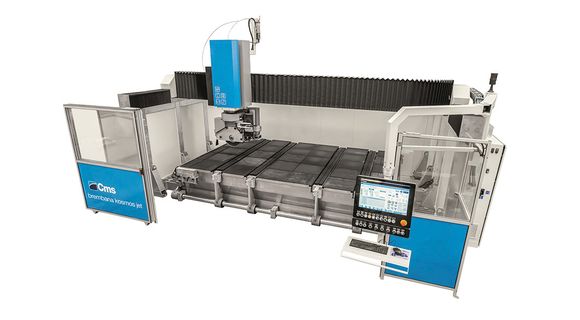

brembana formax jet is also available with pallet change: The machine has an automatic system for pallet change that allows the operator to load the slab that needs to be cut outside the machine, while the machine is cutting another slab.

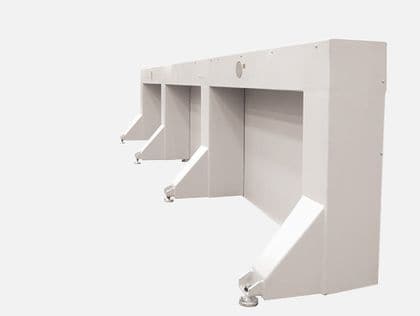

Open frame version, to install on concrete or carpentry shoulders guaranteeing stability and rigidity to accomplish the most difficult processing and to ensure long longevity.

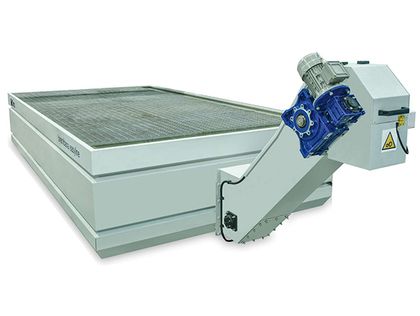

The catch tank with special anti-rust ceramic painting is designed to fit the new Evo4 chain dredge for exhausted abrasive removal even later after installation, with 93% less maintenance costs.

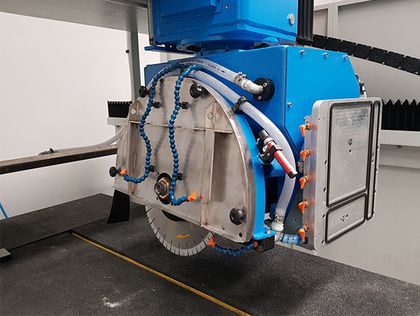

5-axis cutting head with IKC technology. Effective head motion to carry out perfect miter cutting through the cut conicity and deflection control.


Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the slab cutting and reduce waste processing.

Technical data
X axis stroke 3800 mm / 150 in
Y axis stroke 3200 ÷ 7200 mm / 126 ÷ 283 in*
Z axis stroke 700 mm / 27 in
Disk diameter 350 ÷ 625 mm / 14 ÷ 25 in
Motor 18,5 kW / 25 HP
Motor revolution 0÷5000 rpm (optional 0÷6000 rpm)
Maximum working thickness (with 90° disk) 200 mm / 8 in
Maximum working thickness (with 45° disk) 130 mm / 5 in
Head revolution (4th axis) ± 270° (540°)
Head inclination (5th Axis) +8° -90°
Workbench dimensions 4000x2000 mm / 157x79 in*
High pressure intensifier 22,5 kW ÷ 45 kW / 30 ÷ 60 HP

* Other sizes available on request
