stefani sb
(512) 931-1962
Extraordinary robustness, design quality and constant technical updating are what make the stefani sb a byword for reliability and practical efficiency, even in heavy-duty use with several work shifts per day, always with the guarantee of consistent reliability and lasting competitive advantages.
Advantages
-

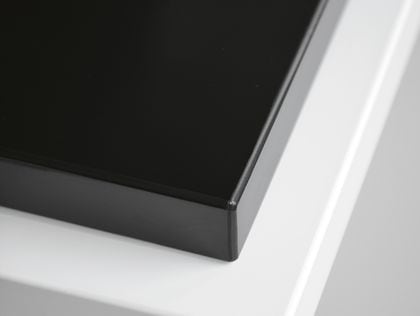

EDGEBANDING EXCELLENCE
Panel squaring and edge application quality allows perfect production that meets all the highest standards. -
STRUCTURAL QUALITY

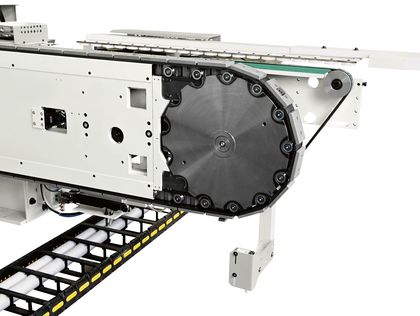

13-teeth feed track with links of sintered isotropic material, steel motorized pressure device, cast iron columns with special design, free-vibration basements feature the machine for all heavy-duty scenarios. -
CUSTOMISATION
stefani sb represents the strength of improvement over 60 years at high performances; it can be customized in the easiest and fastest way benefitiing flexibility and productivity, because the only objective is that of the customer.
Technical data
| Productivity: Finished panels/shift | From 6000 | |
| Max feed speed for lengthwise processing | m/min | 40 |
|
Max feed speed for lengthwise processing
with “HI-DRIVE” pack
|
m/min | 70 |
|
Max feed speed for crosswise processing
with rounding process
|
m/min | 35 |
| Coil edge thickness | mm | 0.3-3 |
| Solid wood edge thickness | mm | 25 |
| Standard panel thickness | mm | 8 – 60 |
| Panel thickness with 80 mm pack | mm | 80 |
| Maximum panel length | mm | 3200 |
| Maximum panel width | mm | 1600 |
| Technology for edge application | EVA/PUR/EVA+PUR | |
| Processes | Standard panels, J-Shape, doors, massive production, flexible production |
