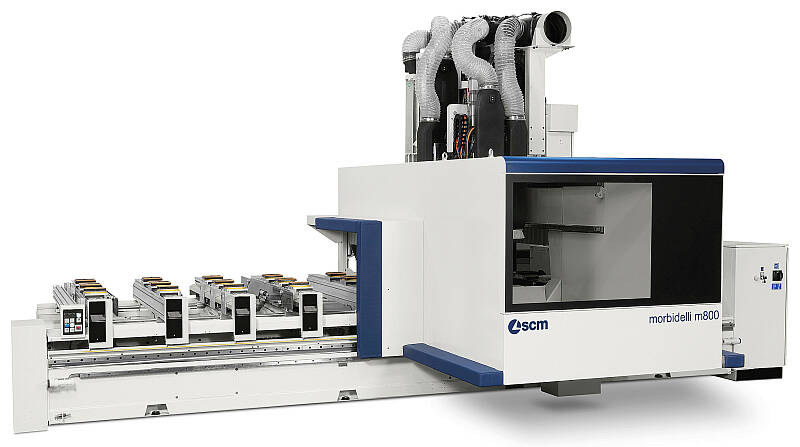

morbidelli m600/800
(512) 931-1962
Modular machining centres designed and developed to satisfy the requirements of furniture manufacturers.
Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Maestro CNC software.
SUPERIOR TECHNOLOGY FOR MACHINING WITH 5 AXES:
PRISMA ELECTROSPINDLE
Reduced maintenance, maximum flexibility and optimal finishing quality with the BEL.TECH technology (Belt technology system), the belt transmission system which eliminates vibration and heat from tools to the motor. Due to the compact structure, it allows easy operations in limited spaces.
THE PERFECT DRILLING:
RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

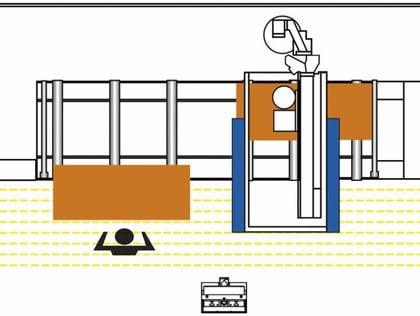

THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY:
PHOTO-BUMPERS
High production capacity and greater freedom of movement also during alternated work process due to the safety system that brings together the bumpers devices with the photocells for the detection of the operator’s position inside the loading/unloading area.

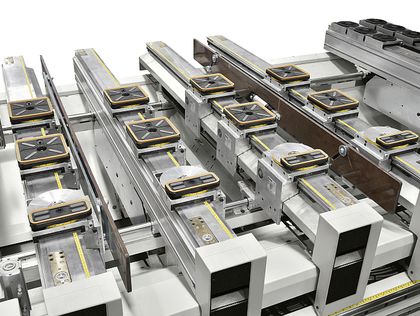

SET UP TIMES IN HIDDEN TIME: TV MATIC WORKTABLE
Work table with automatic simultaneous positioning of bars and pods or clamps. The requested configuration is performed in just a few seconds with a guaranteed safety against the risks of collision between tool and work table.
| m600 | m800 | ||||
| Working areas | |||||
| X-Y axes dimensions | mm | 3680x1680 3680x1905 5020x1680 5020x1905 6360x1680 6360x1905 |
3680x1680 3680x1905 5020x1680 5020x1905 6360x1680 6360x1905 |
||
| Axes | |||||
| Vectorial speed X-Y axes | m/min | 127 | 127 | ||
| Z axis speed | m/min | 30 | 30 | ||
| Z axis panel passage | mm | 250 | 350 | ||
| Routing unit | |||||
| Motor power (max.) | kW (hp) | 17 (23) | 17 (23) | ||
| Rotation speed (max.) | rpm | 24000 | 24000 | ||
| Available tools on tool changer (max.) | places | 54 | 54 | ||
| Drilling unit | |||||
| Independent vertical spindles (max.) | n. | 38 | 38 | ||
| Independent horizontal spindles (max.) | n. | 12 | 12 | ||
| Rotation speed (max.) | rpm | 8000 | 8000 | ||
| Integrated blade in X, diameter | mm | 125 | 125 | ||
| 0-90° integrated blade, diameter | mm | 160 | 160 | ||
