class si 400ep

(512) 931-1962
class si 400ep

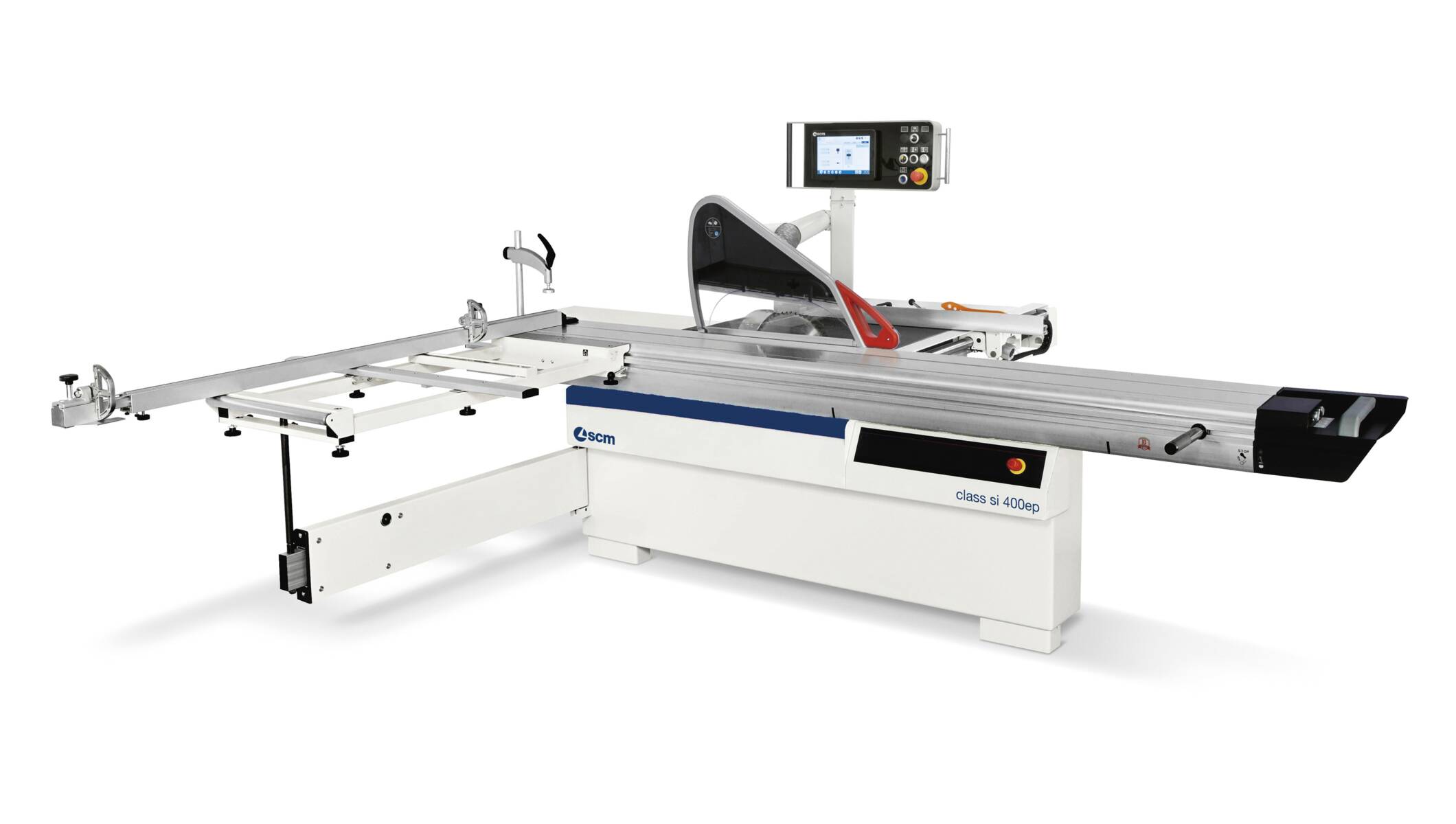

Electronic-programmed circular saw with tilting blade

Superior technology combined with an ease of use.

Advantages

Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).

READY: the practical advantage for automatic control of the main positions. The programming of the work becomes simple and effective with the electronic control with a 4” LCD colour screen.

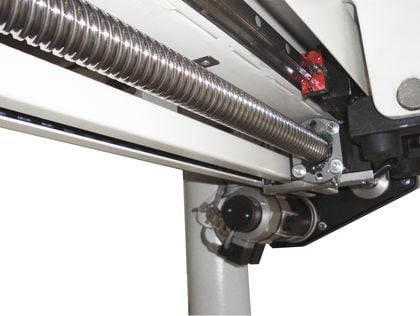

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.

Technical data
Class si 400ep
Max. saw blade diameter with mounted scorer mm 400
Maximum saw blade projection from table to 90°/45° mm 140/97
Cutting width on rip fence mm 1000 ÷ 1500
Squaring capacity mm 3200 ÷ 3800 x 3200
Three-phase motors starting from kW/Hz 7 (8) / 50 (60)
