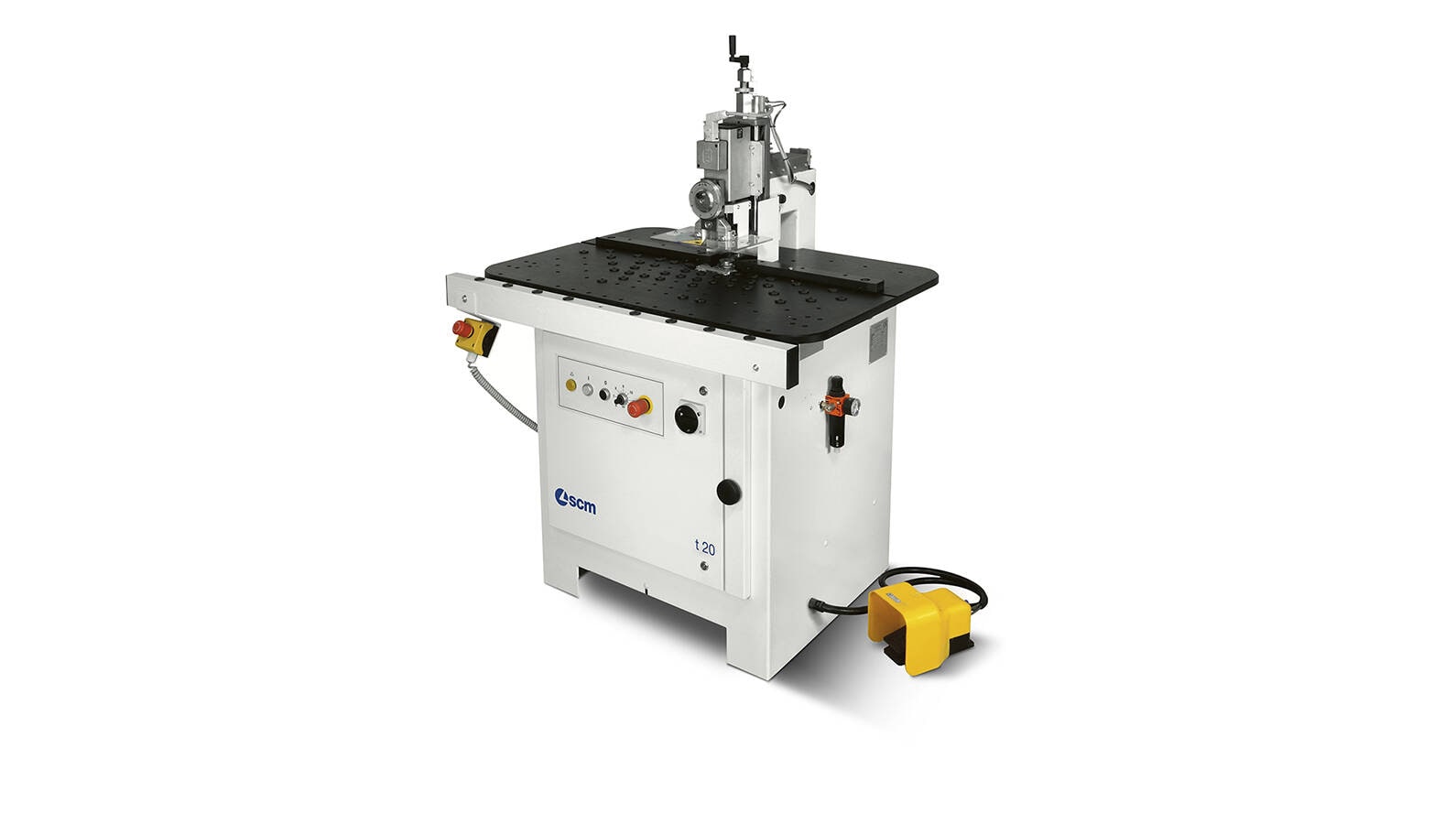

Joinery machines - Edge banders - t 20

Trimming of shaped panels and with tilted edge.

Simply intelligent and versatile. Designed with exclusive solutions, this trimming machine allows a set up facility without comparison.

Advantages

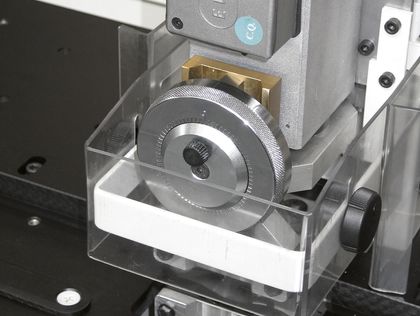

Simple and precise setting up of the trimming group. The trimming adjustment is carried out in few seconds and without errors by means of the Scm exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool.

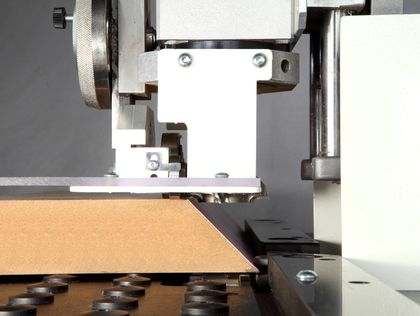

Possibility to work panels with tilted edge up to 45°.

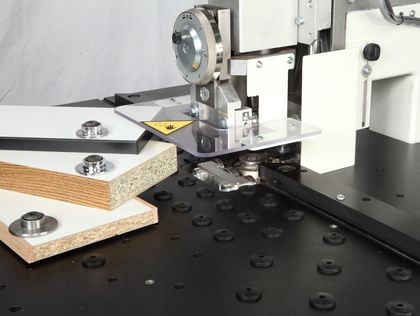

Interchangeable copying devices for a rapid and precise set up during machining changeover, eliminating the horizontal adjustment.

Technical data
t-20
Max. edgebanding thickness mm 4
Min. - max. panel height mm 14 - 80
Min. panel length/width mm 200/160
Minimum internal radius mm 25
Variable cutters speed rpm 9000 - 15000
